Long Barrel 2-Hole Compression Lug 6 AWG 1/4" Stud | 90°C, 35kV, 65A
Shipping calculated at checkout
SKU: 210-98085B
930 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

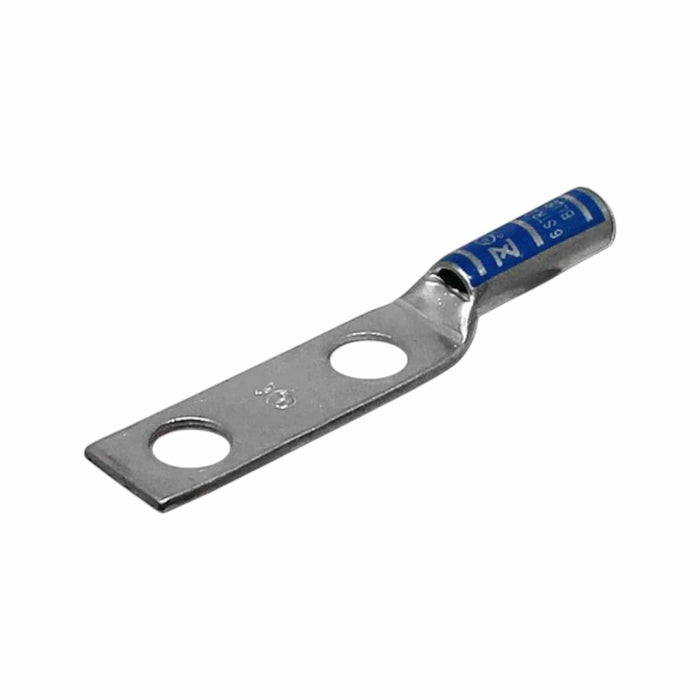

The Conversions Tech long barrel two-hole compression lug terminates 6 AWG copper conductors to 1/4-inch studs or busbars. The extended barrel maximizes crimp contact area for reliable high-current connections in switchgear, panelboards, and industrial distribution equipment. Tin-plated copper construction resists oxidation; blue color coding aids phase identification during installation.
Specifications
- Wire Size: 6 AWG
- Stud Size: 1/4"
- Hole Spacing: 1-3/4" (44.5 mm center-to-center)
- Terminal Material: Tin-plated copper
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Max Amp Rating: 65 A
- Dimensions: L 57.2 mm (2.25"), L1 31.1 mm (1.23"), L2 12.7 mm (0.50"), D 11.4 mm (0.45"), D1 7.9 mm (0.31"), D2 5.9 mm (0.23"), B 22.9 mm (0.90"), E 7.1 mm (0.28"), F 1.9 mm (0.08")
- Color Code: Blue
- Certifications: UL Recognized, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to long-barrel two-hole compression lug form factors from major manufacturers. Provides comparable electrical and mechanical performance to branded alternatives at reduced cost for high-volume installations.
FAQ
What crimp die size is required for this lug?
Use a crimp die matching the lug's D1 dimension of 7.9 mm (0.31"). Verify compression with a go/no-go gauge; proper crimp force ensures the 65A rating and 35kV dielectric integrity.
Is this lug suitable for 75°C or 90°C terminations?
The 90°C temperature rating permits use in 75°C and 90°C termination circuits per NEC. Ampacity must be derated if installed in higher ambient temperatures or bundled conditions.
Can this lug be used in medium-voltage applications?
The 35 kV rating supports medium-voltage terminations when installed with appropriate clearances and insulation. Confirm system voltage and BIL requirements against your specific application standards.
