2-Hole Copper Compression Lug 6 AWG 1/4" Stud | Long Barrel, 35kV, 90°C
Shipping calculated at checkout
SKU: 210-98085C
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

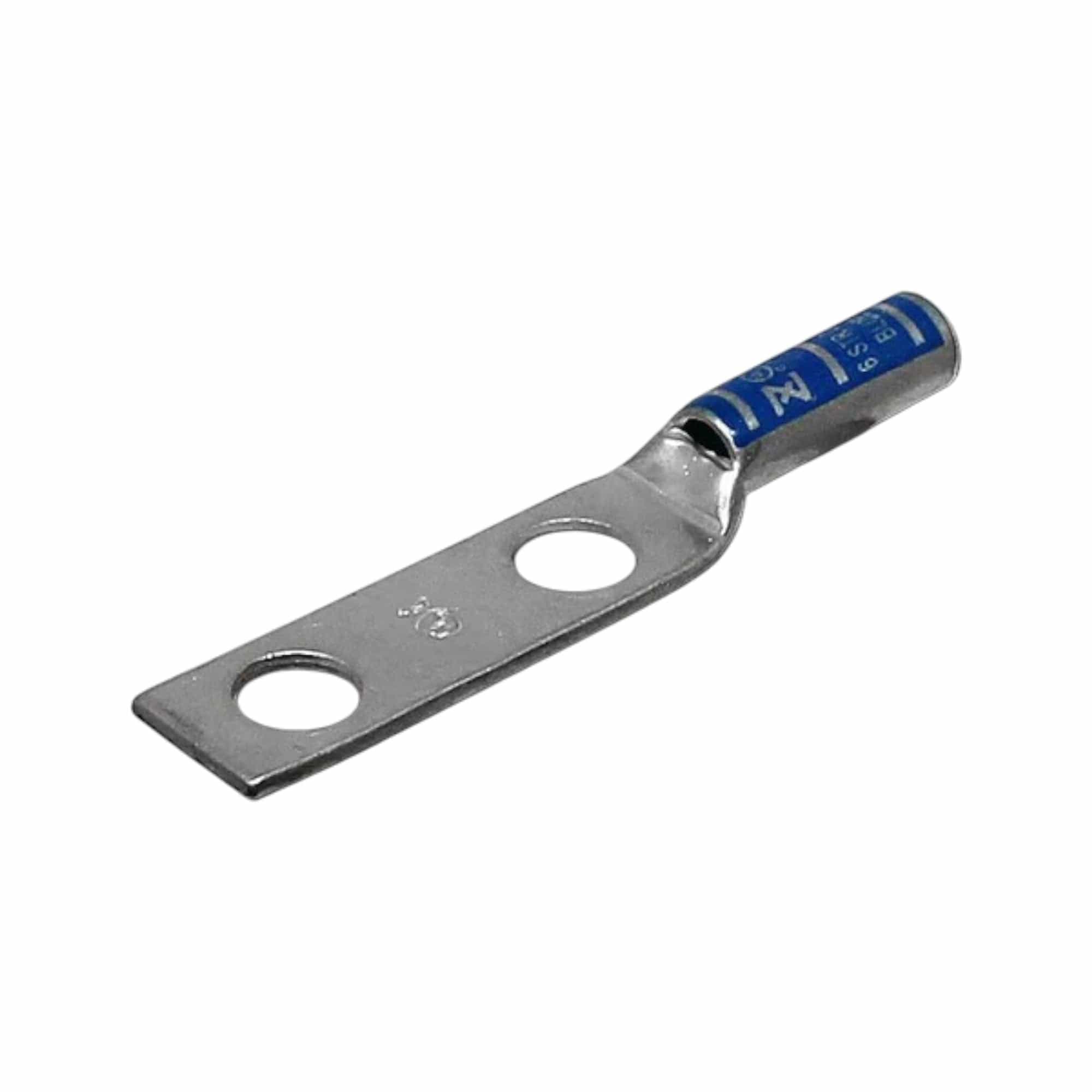

The Conversions Tech 2-Hole Copper Compression Lug is engineered for terminating 6 AWG conductors in commercial, industrial, and renewable-energy electrical systems. The long-barrel construction maximizes contact surface for reliable conductivity, while the dual-hole pad prevents rotation and distributes torque across the connection. A blue color code provides instant wire-size identification in the field.
Specifications
- Conductor Size: 6 AWG
- Material: Seamless electro-tin-plated copper
- Stud Size: 1/4 in
- Pad Holes: 2
- Pad Hole Spacing: 3/4 in (19.05 mm)
- Barrel Length: 1.125 in (28.6 mm)
- Overall Length: 2.757 in (70.0 mm)
- Pad Size (L × W × T): 1.437 in × 0.411 in × 0.087 in
- Fitting Size: 0.203 in ID × 0.295 in OD
- Entry Type: Chamfered long barrel
- Color Identification: Blue
- Die Index: I-24
- Voltage Rating: 35 kV
- Temperature Rating: 90 °C (194 °F)
- Certifications: UL Recognized, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to long-barrel two-hole compression lugs from major manufacturers including Panduit, Burndy, and Ilsco. Provides comparable electrical and mechanical performance at reduced cost for high-volume industrial and utility applications.
FAQ
What die index is required for crimping this lug?
Use compression tooling with the I-24 die index to achieve a proper UL-compliant crimp. Always verify die alignment and complete the full compression cycle.
Does the dual-hole design affect busbar spacing requirements?
The 3/4-inch hole spacing requires compatible busbar or terminal pad geometry. Verify mounting surface dimensions before specifying; the two-hole configuration improves mechanical stability and vibration resistance compared to single-hole alternatives.
Is this lug rated for wet or corrosive environments?
The electro-tin-plated copper construction provides corrosion resistance. The 90 °C temperature rating and 35 kV voltage rating apply to standard installation conditions; consult applicable NEC articles and local authority having jurisdiction for specific environmental installation requirements.
