Long Barrel Two-Hole Copper Compression Lug 4 AWG 1/4" Stud | 90°C
Shipping calculated at checkout
SKU: 210-98086D
In stock
Open here

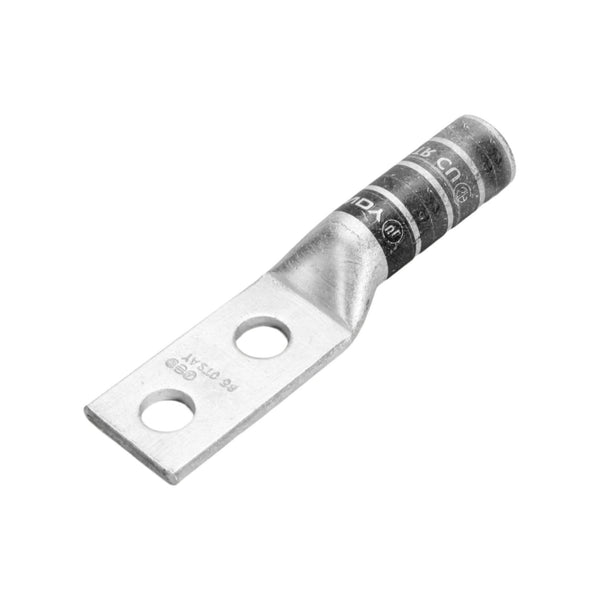

Long barrel two-hole compression lug for terminating 4 AWG copper conductors. Engineered for utility, industrial, and commercial electrical installations where mechanical stability and corrosion resistance are critical. The extended barrel length increases contact surface area for reduced resistance and improved pull-out strength. Tin-plated seamless copper construction suits standard compression tooling and dies.

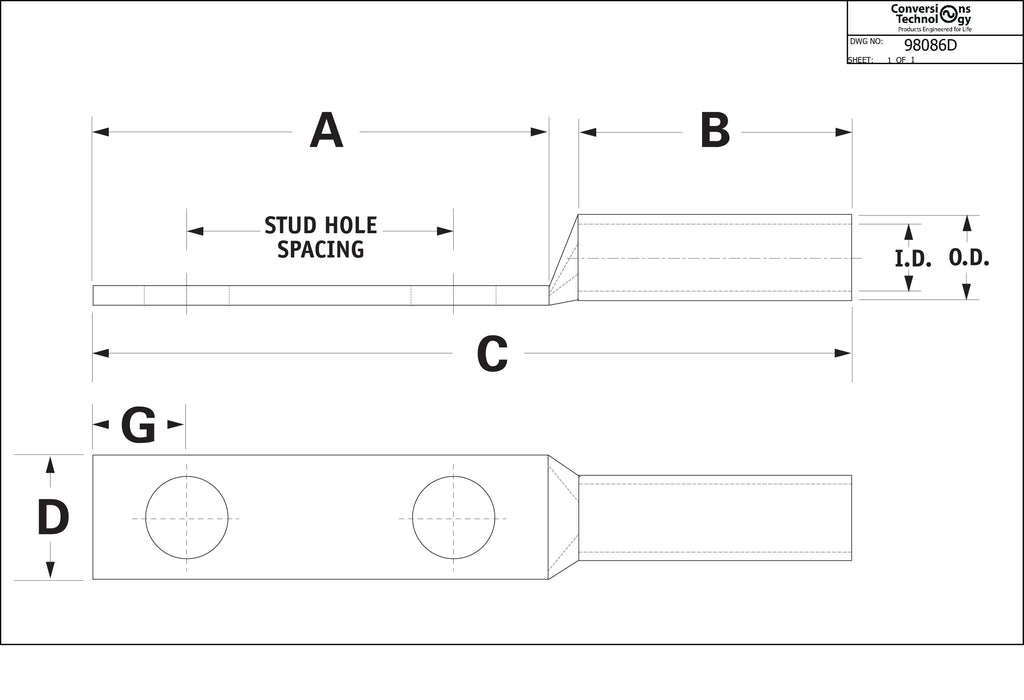

Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 4 AWG
- Stud Size: 1/4 Inch
- Pad Holes: 2
- Pad Hole Spacing: 1 Inch
- Pad Size: 1.437 Inch L x 0.486 Inch W x 0.093 Inch Thickness
- Barrel Length: 1.125 Inches
- Overall Length: 2.796 Inches
- Inner Diameter: 0.25 Inch
- Outer Diameter: 0.343 Inch
- Barrel Type: Long Barrel, Chamfered Entry
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Color Code: Gray
- Die Index: I-29
- No sight window
Cross-Reference
Equivalent form factor to long-barrel two-hole copper compression lugs from major manufacturers. Compatible with standard compression tooling and installation practices established for Crouse-Hinds and Appleton style lugs.
FAQ
What compression die do I need for this lug?
Die index I-29. Verify your tool manufacturer's chart as die codes may vary by brand.
Is this lug rated for wet locations?
The source specifications do not include environmental or NEMA ratings. Evaluate suitability based on your local code requirements and installation environment.
Can I use this with stranded or solid 4 AWG copper?
The conductor material is specified as copper. Inner diameter is 0.25 inch. Confirm compatibility with your specific conductor stranding and diameter before installation.
Availability: This item ships on our standard restock cycle — typical lead time 2–3 weeks. Order now to reserve your place in the queue, or email sales@conversionstech.com for expedited options and firm dates on volume orders.
Specifications
| Part Number | 210-98086D |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 4 AWG, 1/4 Inch stud
CT P/N 210-98086D is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Panduit | LCC4-12 * |
| NSI Industries | L4NP |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
