Long Barrel Two-Hole Compression Lug 1/0 AWG 1/4" Bolt | 35kV 90°C
Shipping calculated at checkout
SKU: 210-98095A
975 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

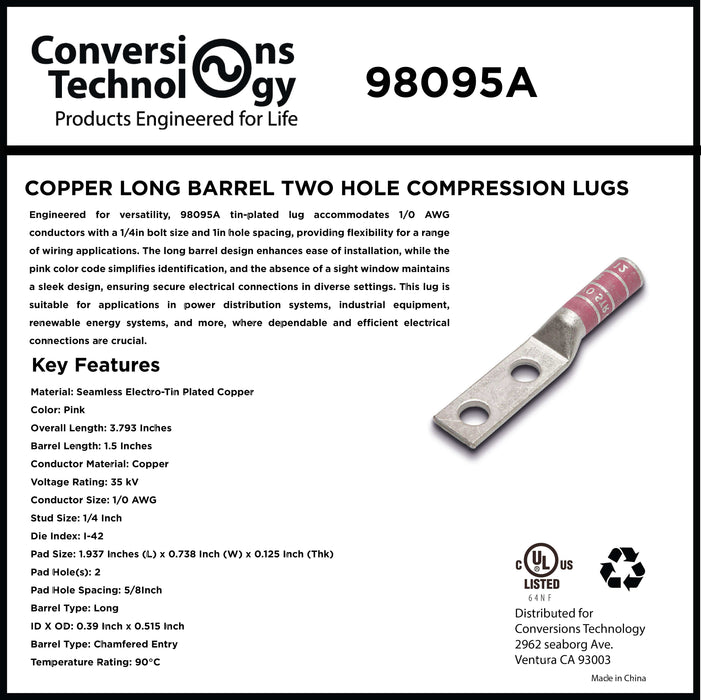

The Conversions Tech long barrel two-hole compression lug is engineered for 1/0 AWG copper conductors in medium-voltage power distribution, industrial panel builds, and utility substation work. The extended barrel provides increased contact surface area for high-current applications, while the dual-hole pad pattern ensures mechanical stability on bus bars and equipment terminals. Pink color code identifies the conductor size at installation.
Specifications
- Conductor Size: 1/0 AWG
- Material: Seamless Electro-Tin Plated Copper
- Barrel Type: Long
- Barrel Length: 1.5 Inches
- ID x OD: 0.39 Inch x 0.515 Inch
- Cable Entry: Chamfered Entry
- Stud Size: 1/4 Inch
- Pad Holes: 2
- Pad Hole Spacing: 5/8 Inch

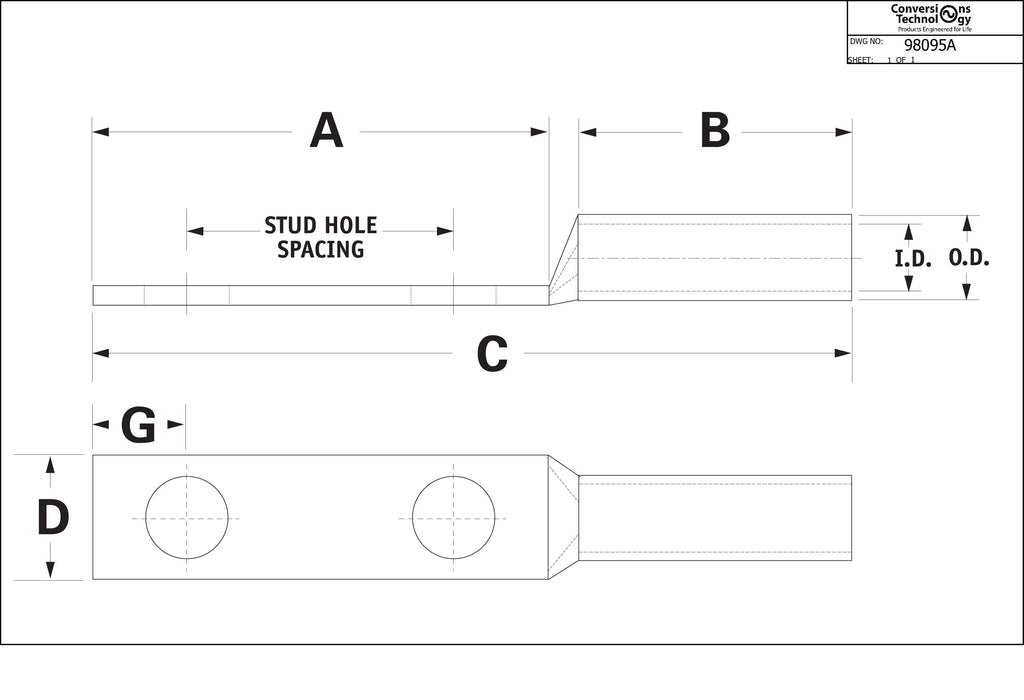

- Pad Dimensions: 1.937 Inches (L) x 0.738 Inch (W) x 0.125 Inch (Thk)
- Overall Length: 3.793 Inches
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-42
- Color Code: Pink
Cross-Reference
Equivalent to standard two-hole long barrel compression lugs from major manufacturers. Used in same applications as Crouse-Hinds, Appleton, and Burndy form types for 1/0 AWG medium-voltage terminations.
FAQ
What die index should I use for crimping?
Use die index I-42 with your compression tool. This ensures proper crimp formation per manufacturer specification for the 0.39" ID barrel.
Is this lug rated for 35kV applications?
Yes. The 35kV voltage rating and 90°C temperature rating support medium-voltage power cable terminations in industrial and utility environments.
What is the actual hole spacing on the pad?
The pad hole spacing is 5/8 inch center-to-center, not 1 inch. Verify bus bar hole patterns match this spacing before ordering.
