Two Hole Compression Lug 1000 MCM 1/2" Bolt | 90°C 600V-35kV
Shipping calculated at checkout
SKU: 210-98110b
111 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

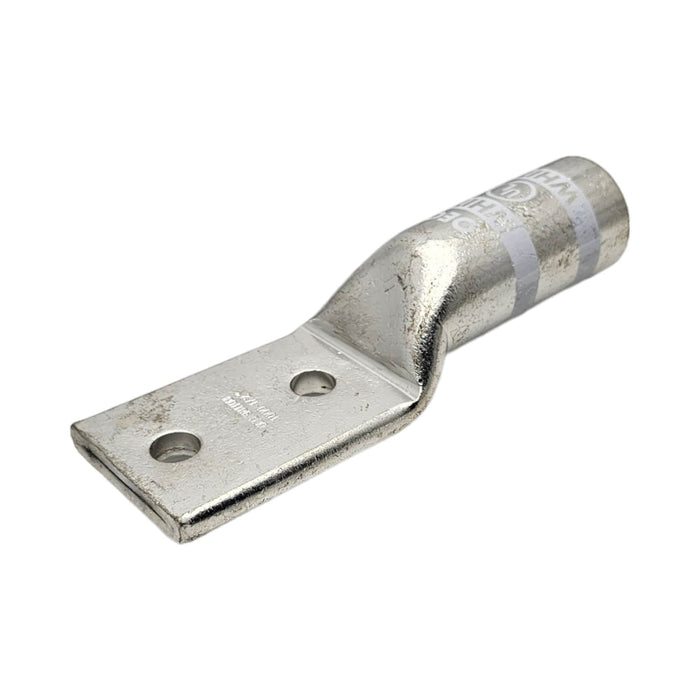

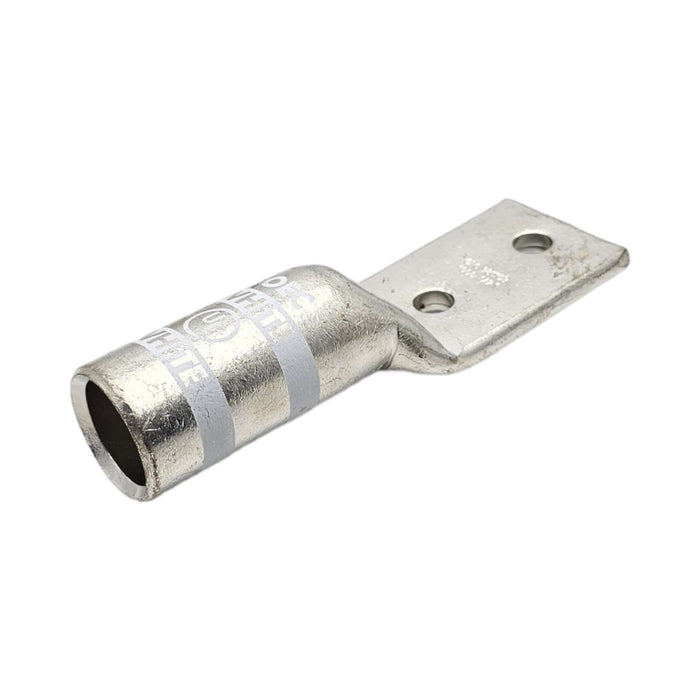

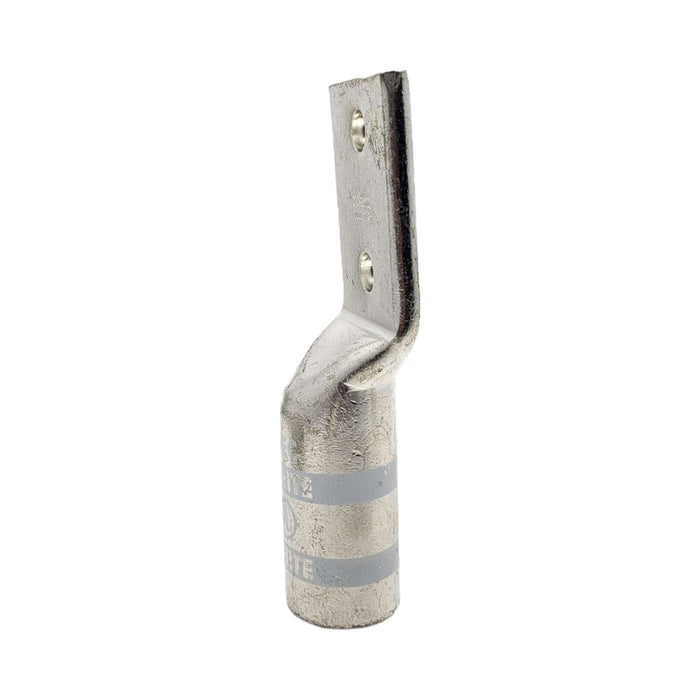

The Conversions Tech two-hole compression lug terminates 1000 MCM copper conductors in high-current power distribution applications. The long, straight barrel with chamfered cable entry accommodates full conductor insertion for reliable compression. Electro tin-plated seamless copper construction provides corrosion resistance. Rated for 90°C continuous operation across 600V to 35kV systems.
Specifications
- Conductor Size: 1000 MCM
- Stud/Bolt Size: 1/2 Inch
- Pad Holes: 2
- Pad Hole Spacing: 1.75 Inch
- Pad Dimensions: 3 Inch L × 2.169 Inch W × 0.328 Inch Thickness
- Barrel Type: Long, Straight
- Barrel Length: 3 Inch
- Overall Length: 7.025 Inch
- Wire Strip Length: 3.062 Inch
- Cable Entry Type: Chamfered
- Material: Electro Tin Plated High Strength Seamless Copper
- Color: White
- Voltage Rating: 600 Volt to 35 Kilovolt
- Temperature Rating: 90°C
- Die Index: I-125
Cross-Reference
Equivalent to two-hole compression lug form factors from major manufacturers including Burndy, Panduit, and Ilsco. Conversions Tech lugs match standard dimensional and performance specifications at distributor-direct pricing.
FAQ
What crimping die do I need for this lug?
Use die index I-125. Verify proper die selection against your crimping tool manufacturer's chart before installation.
Is this lug rated for medium voltage applications?
Yes. The voltage rating of 600V to 35kV covers both low and medium voltage distribution systems. Confirm application suitability with your local electrical inspector.
Why two holes instead of one?
Two-hole pads distribute mechanical load and improve thermal performance on bus bars or equipment terminals. The 1.75-inch hole spacing matches standard bus bar drilling patterns.
