Long Barrel Compression Splice 1/0 AWG Copper | 35 kV, 90°C, Pink Code
Shipping calculated at checkout
SKU: 212-5010
700 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

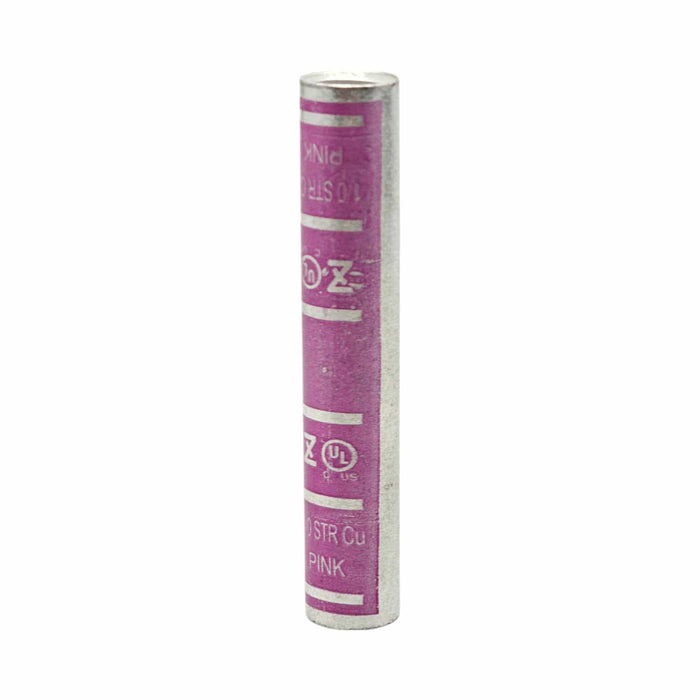

The Conversions Tech 1/0 AWG Copper Compression Splice (Long Barrel) is a center wire stop connector engineered for commercial and industrial grounding and bonding applications. The extended barrel design increases crimping surface area for enhanced mechanical stability in high-voltage power distribution, industrial machinery, renewable energy installations, and substation infrastructure.
Specifications
- Type: Center Wire Stop
- Barrel Length: Extended (Long Barrel)
- Overall Length: 2.750 inches
- Inner Diameter: 0.39 inches
- Outer Diameter: 0.515 inches
- Conductor Material: Copper
- Voltage Rating: 35 kV
- Body Material: High-Strength Seamless Copper with Electro-Tin Plating
- Conductor Size: 1/0 AWG
- Color Code: Pink
- Barrel Design: Long with Chamfered End
- Application: Grounding and Bonding
- Temperature Rating: 90°C
Cross-Reference
Equivalent to long barrel compression splices from major manufacturers. Specified by Conversions Tech's US engineering team and built to specification by certified partner factories.
FAQ
What crimping tool is required for this long barrel splice?
Use a compression tool with dies rated for 1/0 AWG long barrel connectors. The extended 2.750" barrel length requires full-length crimping to achieve rated mechanical and electrical performance.
Why choose long barrel over standard barrel?
The extended barrel increases crimping area, providing greater mechanical pull-out strength and lower electrical resistance compared to standard barrel designs. This is critical for high-voltage and high-reliability grounding and bonding applications.
