Long Barrel Copper Compression Splice 1 AWG | 90°C, UL Listed
Shipping calculated at checkout
SKU: 212-5001
900 in stock
Open here

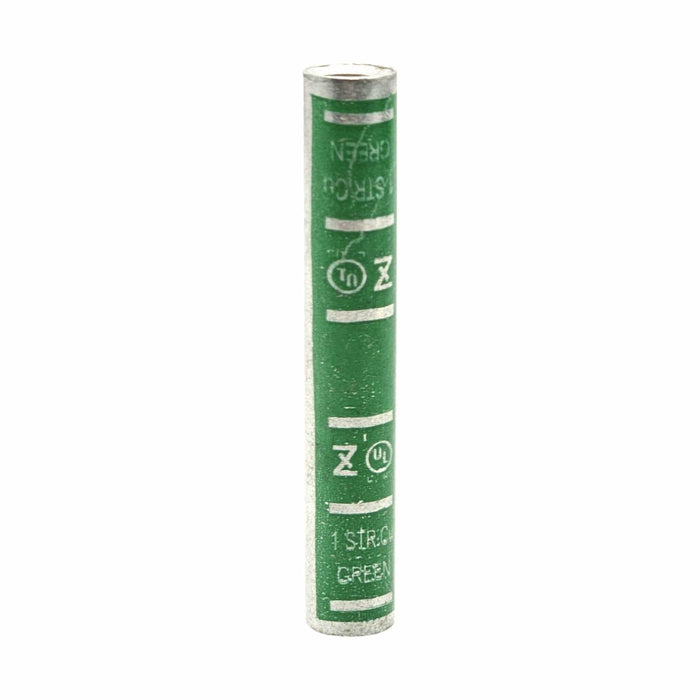

The Conversions Tech Long Barrel Copper Compression Splice is a high-strength crimp connector designed for 1 AWG copper conductors, with compatibility for 2 AWG through 1 AWG wire sizes. The extended barrel design provides increased crimping surface area for enhanced mechanical strength and electrical conductivity in power distribution, industrial equipment, renewable energy systems, and utility applications. Electro-tin plated seamless copper construction delivers corrosion resistance and reliable performance in elevated-temperature environments.
Specifications
- Type: Long Barrel with Center Wire Stop
- Conductor Size: 1 AWG (compatible with 2 AWG – 1 AWG)
- Length: 2.500″ (63.5 mm)
- Inner Diameter: 0.390″ (9.9 mm)
- Outer Diameter: 0.500″ (12.7 mm)
- Conductor Material: High-Strength Seamless Copper
- Finish: Electro-Tin Plated for Corrosion Resistance
- Voltage Rating: 35 kV
- Temperature Rating: 90 °C (194 °F)
- Color Code: Orange
- Certifications: UL Listed, RoHS Compliant
Cross-Reference
Equivalent to long-barrel compression splices offered by major manufacturers. Provides comparable electrical and mechanical performance at competitive cost for industrial and utility-grade installations.
FAQ
What crimping tool is required for this 1 AWG compression splice?
Use an industry-standard compression tool with dies rated for 1 AWG copper connectors. The long barrel design requires full-length crimping to achieve rated pull-out strength and conductivity. Verify die compatibility with the 0.500″ outer diameter.
Can I use this connector for aluminum conductors?
No. This compression splice is specified for copper conductors only. The material compatibility, plating, and dimensional tolerances are engineered for copper. For aluminum conductors, specify a connector rated for aluminum or CU/AL applications.
Specifications
| Part Number | 212-5001 |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Long Barrel Butt Splice, 1 AWG
CT P/N 212-5001 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YS1C * |
| Panduit | SCL1-E * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
