Long Barrel Copper Compression Splice 2 AWG | 35 kV, 90°C, UL Listed
Shipping calculated at checkout
SKU: 212-5002
673 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

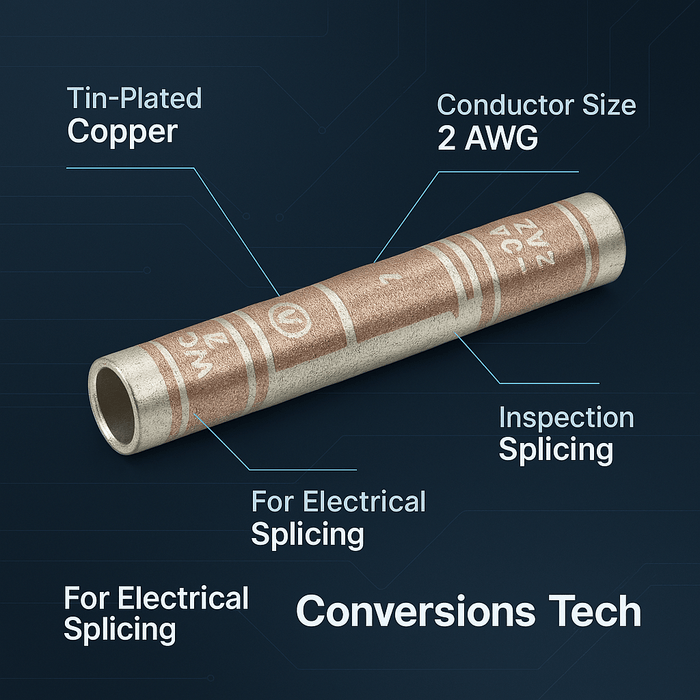

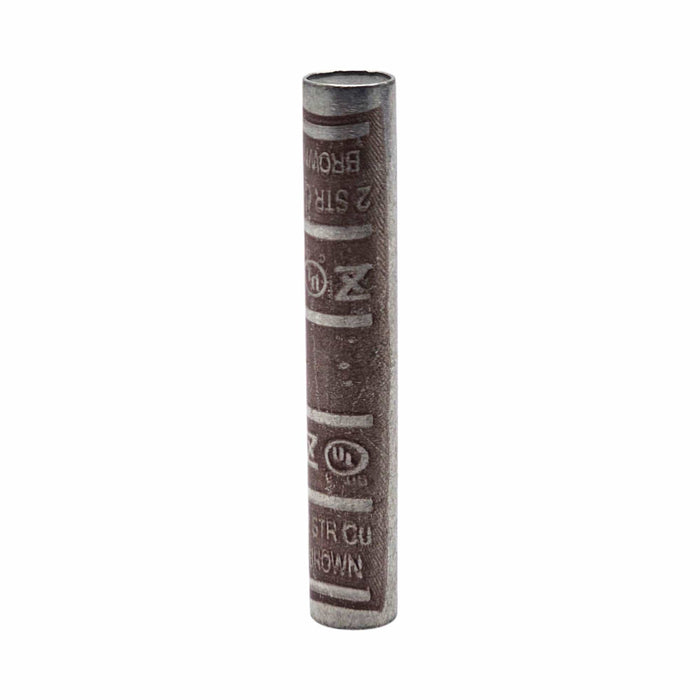

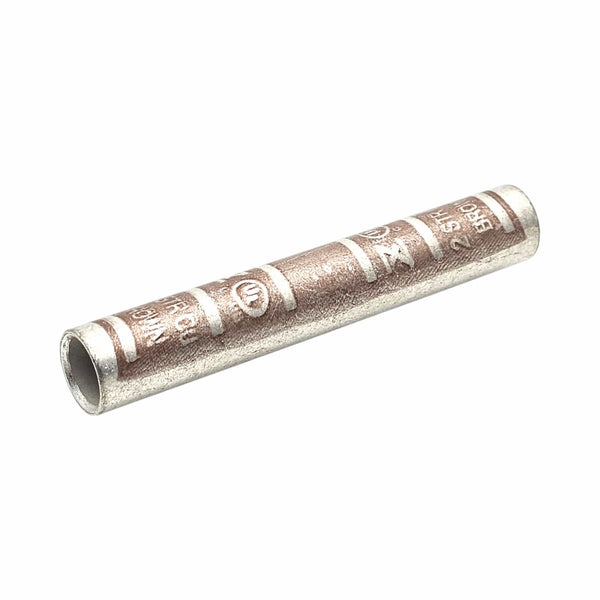

The Conversions Tech Long Barrel Copper Compression Splice is a center-stop butt splice for 2 AWG conductors (compatible with 2 AWG to 1 AWG). The extended barrel provides increased crimping surface for secure terminations in power distribution, switchgear, and utility infrastructure. Electro-tin plated seamless copper construction delivers conductivity and corrosion resistance for industrial, renewable energy, and building infrastructure applications.
Specifications
- Type: Long Barrel with Center Wire Stop
- Length: 2.500 inches
- Inner Diameter: 0.343 inches
- Outer Diameter: 0.469 inches
- Conductor Material: High-Strength Seamless Copper
- Finish: Electro-Tin Plated for Corrosion Resistance
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Conductor Size: 2 AWG (compatible with 2 AWG to 1 AWG)
- Color Code: Brown
- Certifications: UL Listed, RoHS Compliant
- Features: Chamfered ends for easy wire insertion
Cross-Reference
Equivalent to long barrel compression splices from Burndy, Panduit, and ILSCO. Designed to meet the same electrical and mechanical specifications at lower total installed cost.
FAQ
What crimp die size should be used for this 2 AWG long barrel splice?
Match your crimp tool die to the color code (brown) and conductor size (2 AWG). The long barrel requires a compatible hydraulic or mechanical crimp tool rated for compression connectors. Verify die index matches the connector barrel length for full-coverage crimping.
Is this splice rated for 1 AWG conductors?
Yes. The connector is specified for 2 AWG with compatibility for 2 AWG to 1 AWG wire sizes. Confirm fit with actual conductor diameter and follow your crimp tool manufacturer's instructions for the larger size.
