Long Barrel Compression Splice 3/0 AWG Copper | 35kV, 90°C, UL Listed
Shipping calculated at checkout
SKU: 212-5030
894 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

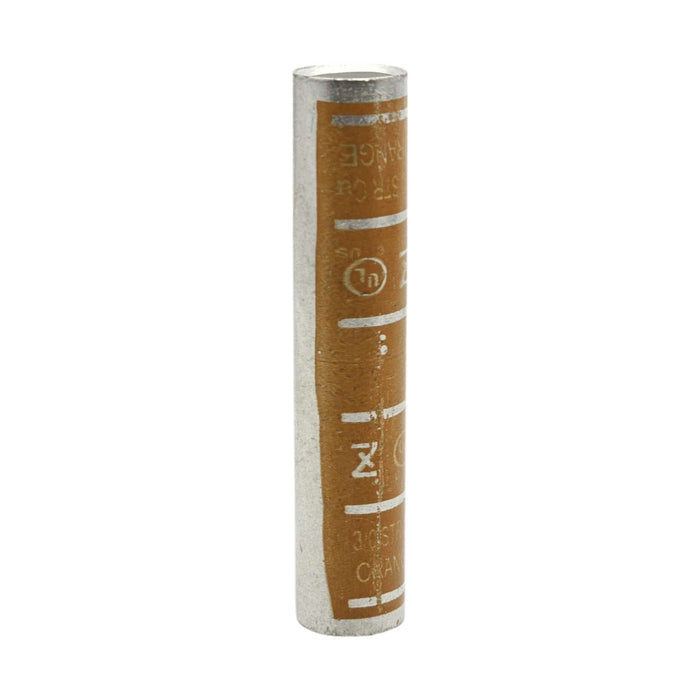

The Conversions Tech Long Barrel Copper Compression Splice is engineered for terminating and splicing 3/0 AWG copper conductors in high-voltage electrical systems. The extended barrel design with center wire stop provides increased crimping surface area for reliable mechanical and electrical connections. Applications include power distribution panels, industrial machinery, renewable energy systems, electrical substations, commercial and residential construction, data centers, telecommunications infrastructure, generators, temporary power installations, and utility networks.
Specifications
- Type: Long Barrel with Center Wire Stop
- Length: 2.750 inches
- Inner Diameter: 0.480 inches
- Outer Diameter: 0.625 inches
- Conductor Material: High-Strength Seamless Copper
- Finish: Electro-Tin Plated for Corrosion Resistance
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Conductor Size: 3/0 AWG (compatible with 2 AWG to 3/0 AWG)
- Color Code: Green
- Certifications: UL Listed, RoHS Compliant
Cross-Reference
Equivalent to long barrel compression splices from major manufacturers. Designed to meet the same dimensional and performance specifications as industry-standard 3/0 AWG long barrel splices at lower cost.
FAQ
What wire sizes does this splice accommodate?
This compression splice is rated for 3/0 AWG copper conductors. The barrel design also accommodates wire sizes from 2 AWG to 3/0 AWG.
What is the voltage rating and temperature limit?
The splice is rated for 35 kV applications and operates at temperatures up to 90°C.
What certifications does this product carry?
UL Listed and RoHS Compliant. The green color coding facilitates identification and compliance with industry standards.
