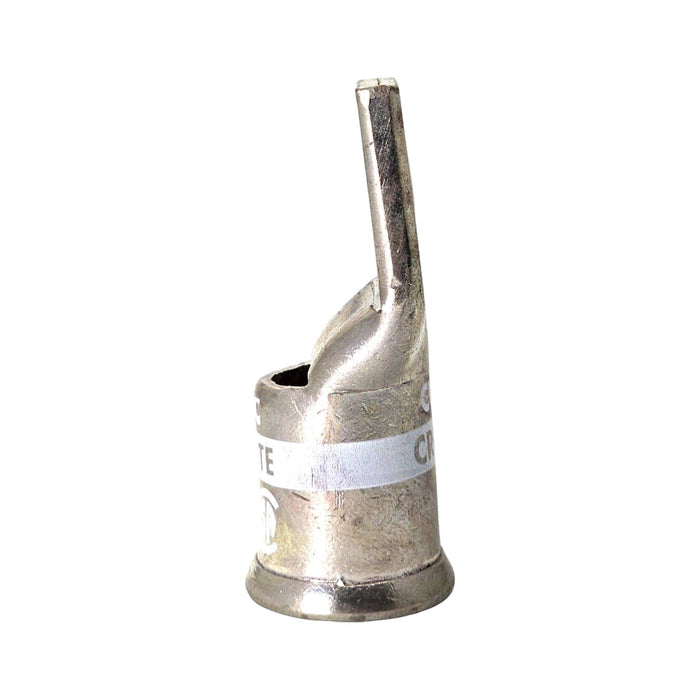

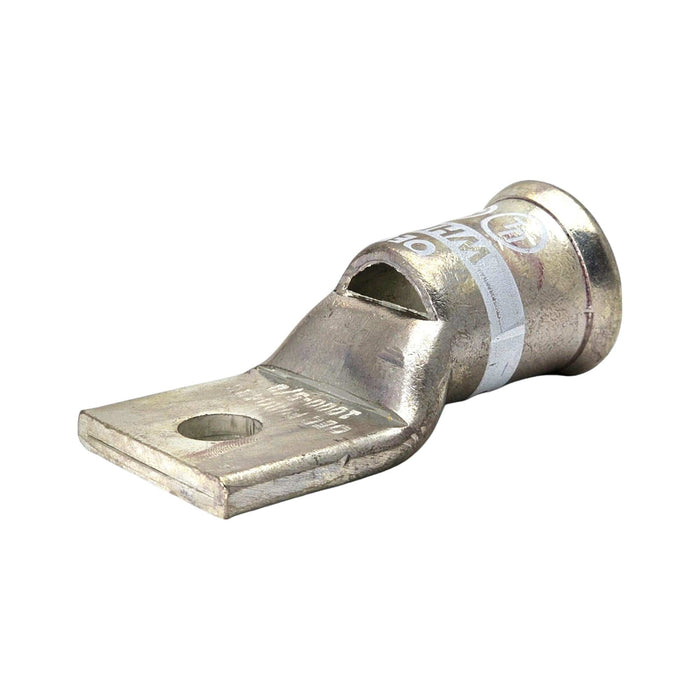

Copper Short Barrel One Hole Compression Lugs 1000 MCM 5/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-F98043B
Only 8 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech 1-Hole Lug is expertly engineered for 1000 MCM conductors, offering a 5/8-inch bolt size and a single-hole configuration for easy installation. Designed with a sight window for precise wire placement, it ensures a secure and accurate connection. The tin-plated finish enhances durability and provides corrosion resistance for long-lasting performance. The distinctive white color code allows for quick identification, making this lug an ideal and reliable choice for complex electrical systems that demand both efficiency and dependability.
Key Features
- Optimized for high-capacity 1000 MCM conductors, ensuring a secure fit and optimal electrical performance.
- Features a sight window for precise installation and a flared barrel entry to ease wire insertion.
- Constructed with tin-plated copper for maximum durability and corrosion resistance.
- Complies with UL486A/B safety standards, suitable for various industrial and commercial applications.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | White |
| Overall Length | 1.83 inches |
| Barrel Length | 0.625 inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 1000 MCM |
| Stud Size | 5/8 inch |
| Die Index | I-37 |
| Pad Size | 0.875 inch L x 0.673 inch W x 0.109 inch Thk |
| Pad Hole | 1 |
| Barrel Type | Standard |
| UL Rating | UL486A/B |
| Barrel Entry Type | Flared |
| Temperature Rating | 90°C |
