Copper Short Barrel One Hole Compression Lugs 300 MCM 5/16-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09807
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

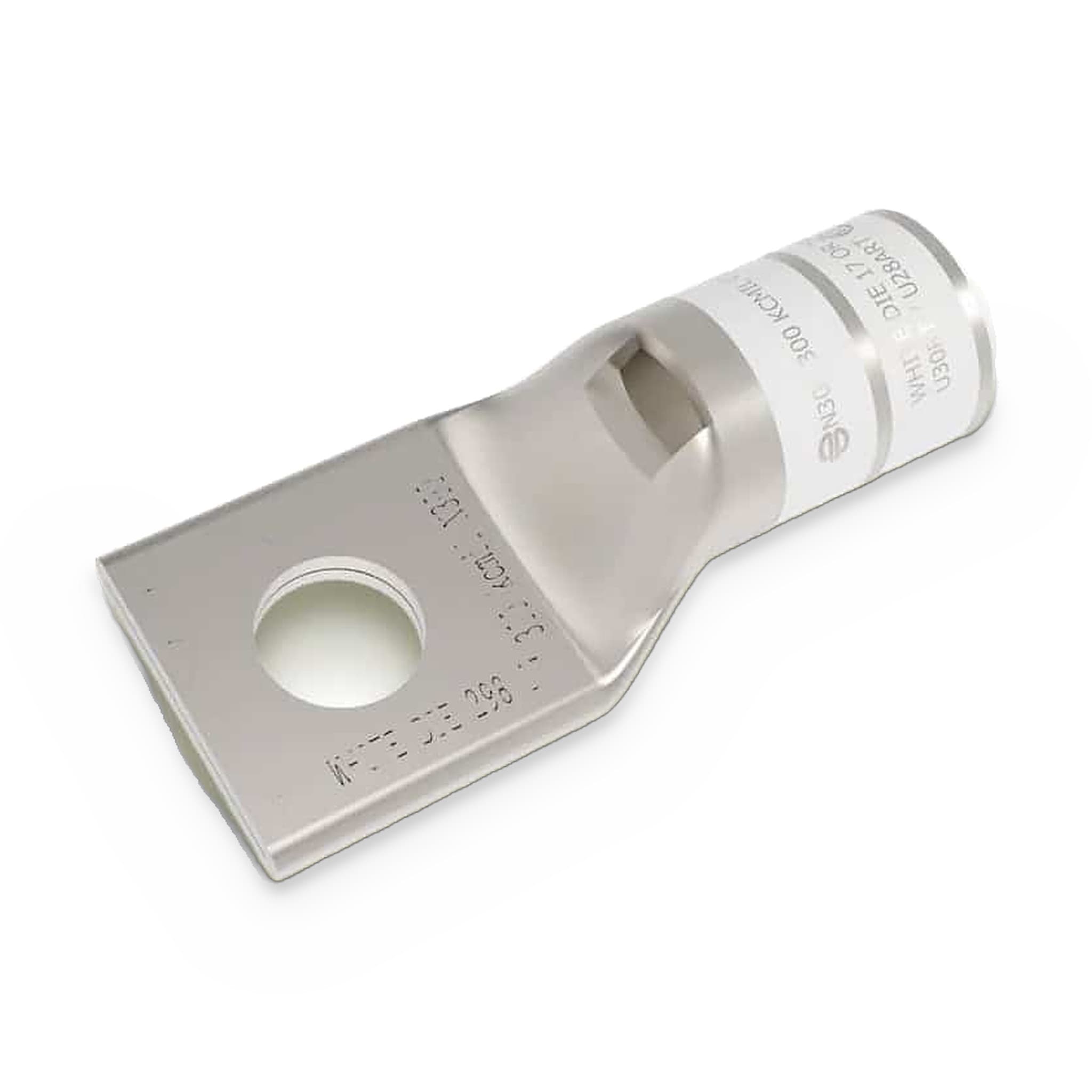

The Conversions Tech 1-Hole Lug is a premium copper compression lug, engineered for reliable electrical connections in demanding applications. With a 300 MCM conductor size, it is built to handle high-current systems effectively. The 1-hole configuration and 5/16-inch bolt size ensure a secure, stable attachment to equipment. Designed with a standard barrel, it facilitates easy crimping, while the sight window provides clear visibility during installation. The tin-plated finish offers enhanced corrosion resistance, and the white color code ensures quick, accurate identification for streamlined installation and maintenance.
Key Features
- Electro-tin plated high-strength seamless copper construction for enhanced conductivity and corrosion resistance.
- White color for quick and easy identification in electrical installations.
- 2.9-inch overall length and 1.063-inch barrel length provide a secure electrical connection.
- Copper conductor material ensures efficient electrical performance..
- 35 kilovolt voltage rating makes it suitable for various electrical applications.
- Accommodates a 300 MCM conductor size for versatility.
- Designed for a 5/8-inch stud size and I-66 die index for precise crimping.
- 1.25-inch length x 1.189-inch width pad size with 1 pad hole for efficient cable attachment.
- Wire strip length of 1.125 inches and a temperature rating of 90 degrees Celsius for varied operating conditions.
Technical Specifications
| Material | Electro tin-plated high-strength seamless copper |
|---|---|
| Color | White |
| Dimensions | 2.9-inch overall length, 1.063-inch barrel length |
| Conductor | Copper, 300 MCM conductor size |
| Voltage and Temperature | 35 kilovolt voltage rating, 90°C temperature rating |
| Installation | 5/16-inch stud size, I-66 die index, standard straight barrel type |
| Pad Size and Hole | 1.25-inch length x 1.189-inch width pad size, 1 pad hole |
| Additional Features | Sight hole, chamfered cable entry type |
| Wire Strip Length | 1.125 inch |
