300 kcmil Copper Compression Lug, 1/2" Stud, 1-Hole, Standard Barrel
Shipping calculated at checkout
SKU: 210-98035
1000 in stock
Open here
Goes with

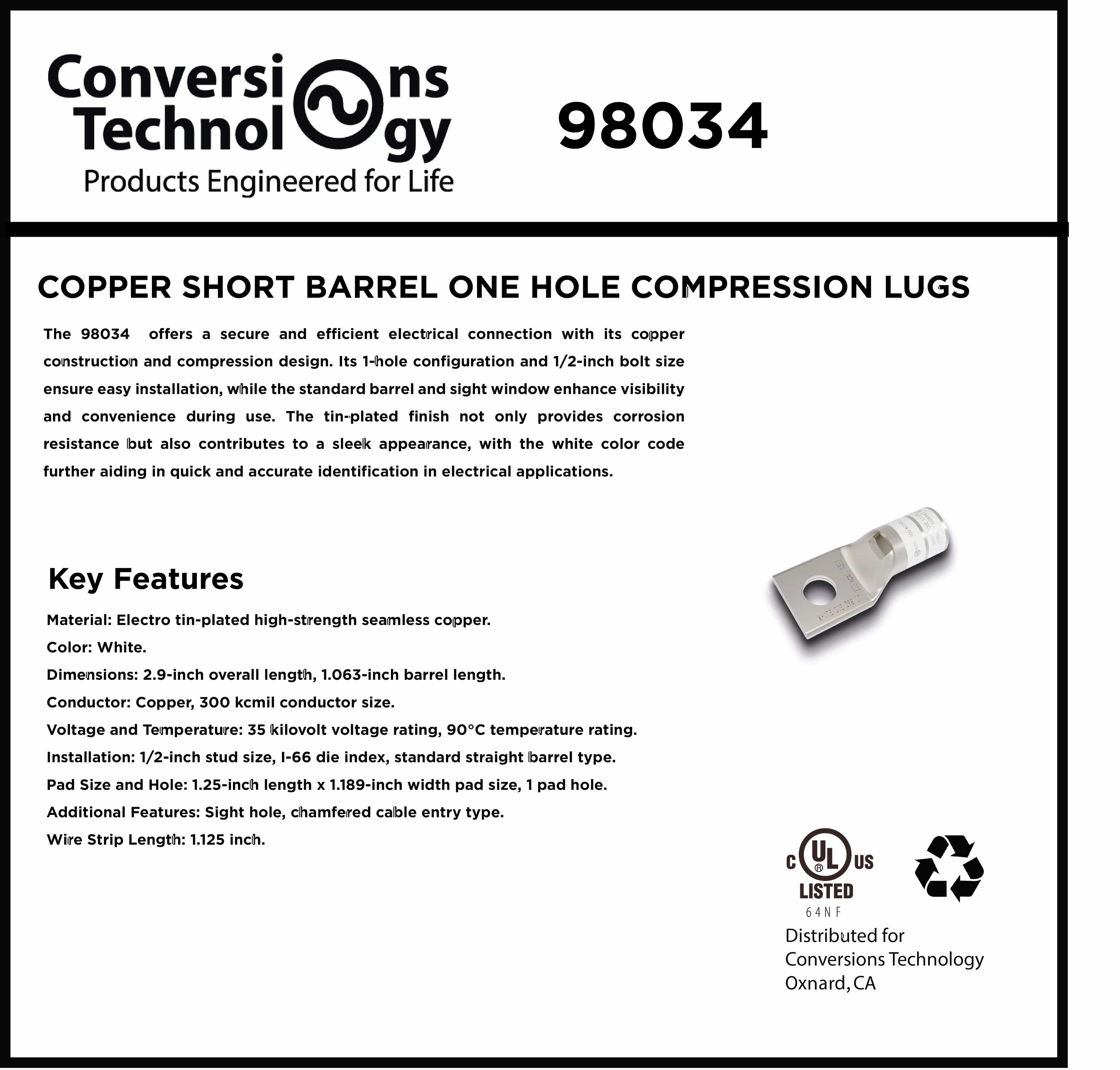

The Conversions Tech 1-Hole Lug is a high-quality copper compression lug designed for reliable electrical connections. Featuring a 300 MCM conductor size, a 1-hole configuration, and a 1/2-inch bolt size, this lug ensures secure and efficient terminations. It is equipped with a standard barrel and a sight window for easy visual inspection during installation. The tin-plated finish provides enhanced durability and corrosion resistance, while the white color code simplifies identification for quick and accurate use in various electrical applications.
| Specifications | |
| Part number | 210-98035 |
| Conductor | 300 kcmil copper, Class B stranded |
| Stud | 1/2 in, 1 hole |
| Barrel | Standard, 1.10 in (E), chamfered entry, inspection window |
| Overall length | 2.63 in (B) |
| Tongue width | 1.189 Inch |
| Die | Index 66, White, one crimp |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 600 V, 285 A at 75 C |
| Color code | White |
Key Features
- High-Quality Copper Construction: Made from durable copper for superior electrical conductivity and long-lasting reliability.
- 300 MCM Conductor Size: Designed for 300 MCM conductors, ideal for medium-to-high power electrical systems.
- 1/2-Inch Bolt Size: Features a 1/2-inch bolt hole for secure and stable connections to terminals.
- Standard Barrel Design: The standard barrel provides a reliable crimp connection, ensuring secure and efficient electrical terminations.
- Sight Window: Equipped with a sight window for visual inspection, ensuring correct wire insertion and crimping for a secure connection.
- Tin Plating: Coated with tin plating for enhanced corrosion resistance, ensuring durability and long-lasting performance.
-
White Color Code: The white color code simplifies identification during installations, improving efficiency and reducing errors.
Technical Specifications
| Material | Electro tin-plated high-strength seamless copper |
|---|---|
| Color | White |
| Overall Length | 2.9 inches |
| Barrel Length | 1.063 inches |
| Conductor Material | Copper |
| Conductor Size | 300 MCM |
| Voltage Rating | 35 kilovolt |
| Temperature Rating | 90°C |
| Stud Size | 1/2 inch |
| Die Index | I-66 |
| Barrel Type | Standard, Straight Barrel |
| Pad Size | 1.25 inches length x 1.189 inches width |
| Pad Holes | 1 Pad Hole |
| Sight Hole | With Sight Hole |
| Cable Entry Type | Chamfered |
| Wire Strip Length | 1.125 inch |
