1-Hole Copper Compression Lug 300 MCM | 5/8" Bolt, 90°C
Shipping calculated at checkout
SKU: 210-09809
1000 in stock
Open here

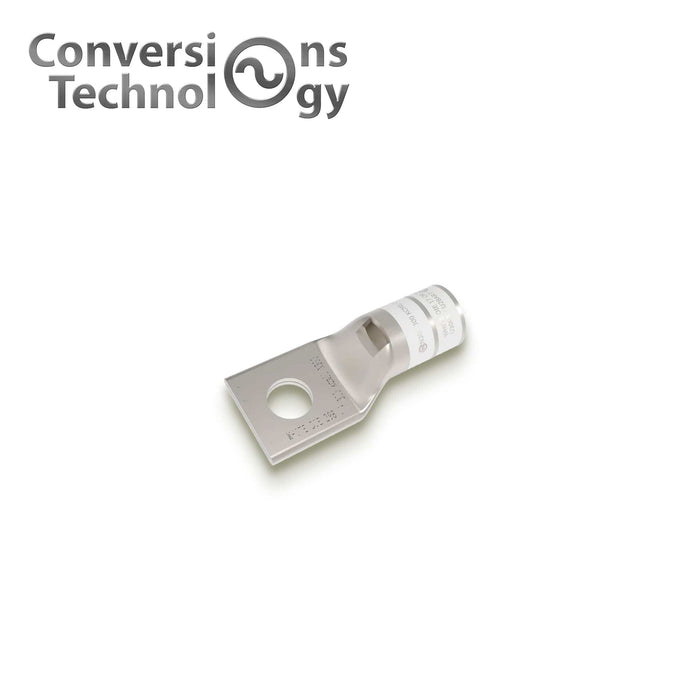

The Conversions Tech 1-Hole Copper Compression Lug is a short barrel compression terminal designed for 300 MCM copper conductors in high-current electrical systems. Engineered for utility, industrial, and commercial power distribution applications, this lug provides secure termination points for switchgear, transformers, panelboards, and bus connections. The electro-tin plated seamless copper construction delivers consistent conductivity while resisting oxidation in standard operating environments.
Specifications
- Conductor size: 300 MCM copper
- Bolt/stud size: 5/8 inch
- Pad dimensions: 1.25 inch length x 1.189 inch width
- Pad holes: 1
- Barrel type: Standard straight, short barrel
- Barrel length: 1.063 inch
- Overall length: 2.9 inch
- Wire strip length: 1.125 inch
- Die index: I-66
- Voltage rating: 35 kilovolt
- Temperature rating: 90°C
- Material: Electro-tin plated high-strength seamless copper
- Color code: White
- Cable entry: Chamfered
- Features: Sight window (sight hole)
Cross-Reference
Equivalent in form and function to compression lugs from major electrical manufacturers. Conversions Tech specifications match industry-standard dimensional and electrical ratings for 300 MCM one-hole copper lugs, providing compatible termination solutions at reduced cost.
FAQ
What crimping die do I need for this 300 MCM lug?
This lug requires an I-66 die index for proper compression. Verify your crimping tool compatibility with the I-66 die specification before installation.
Is this lug rated for 90°C conductor ampacity?
Yes, the 90°C temperature rating supports full ampacity per NEC Table 310.16 for 300 MCM copper conductors when installed in equipment rated for 90°C terminations.
Can I use this lug with aluminum conductors?
No, this lug is specified for copper conductors only. The material compatibility, barrel dimensions, and crimp specifications are engineered specifically for 300 MCM copper cable.
Specifications
| Part Number | 210-09809 |
| Category | Electrical connector |
| Weight | 0.6 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — One-Hole Long Barrel, 300 kcmil, 5/8 Inch stud
CT P/N 210-09809 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA30 |
All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
