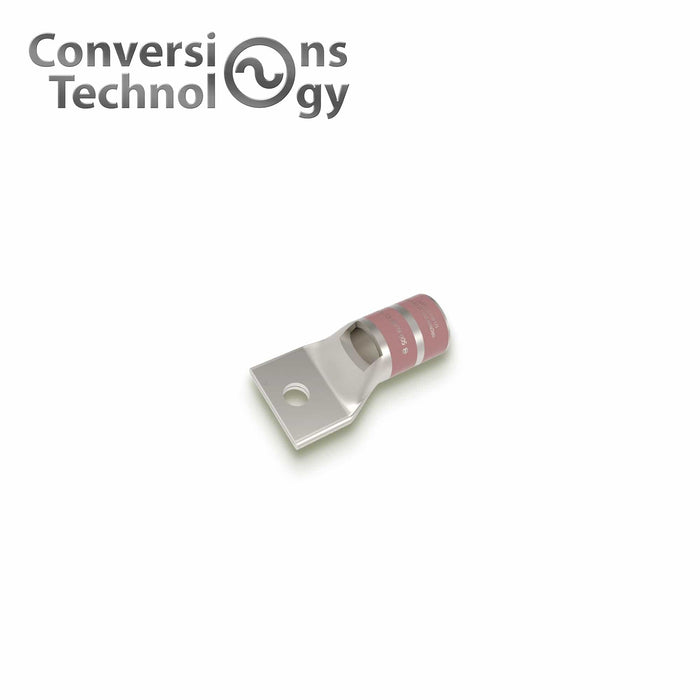

Copper Short Barrel One Hole Compression Lugs 500 MCM 5/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09817
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech 1-Hole Lug is engineered for optimal electrical performance, featuring a durable copper construction suitable for a 500 MCM conductor size. Its 5/8-inch bolt size, standard barrel, and built-in sight window facilitate easy installation and inspection. The lug’s tin-plated surface enhances corrosion resistance and conductivity, while the brown color code streamlines identification in complex electrical systems. Trust in this lug for secure and efficient electrical connections in a variety of applications
Key Features
-
Seamless Electro-Tin Plated Copper: Ensures a durable and corrosion-resistant construction for reliable electrical connections.
Brown Color: Facilitates easy identification in complex electrical systems.
3.282 Inch Overall Length: Provides a compact design for versatile installation in various applications.
35 kV Voltage Rating: Suitable for high-voltage applications, ensuring secure electrical connections.
500 MCM Conductor Size: Accommodates large conductors, making it versatile for different electrical setups.
5/8 Inch Stud Size: Compatible with standard electrical studs for easy and secure installation.
I-87 Die Index: Indicates the appropriate die for use during crimping, ensuring proper termination.
1.25 Inch L X 1.535 Inch W X 0.234 Inch Thk Pad Size: Provides ample surface area for a reliable connection.
1 Pad Hole(s): Enables a secure attachment to the conductor.
Standard Barrel Type: Ensures a common design for compatibility with various connectors and tools.
Size 0.828 Inch ID X 1.062 Inch OD: Offers specific dimensions for optimal conductor compatibility.
Barrel Type Chamfered Entry: Facilitates smooth conductor insertion for efficient crimping.
Temperature Rating 90 Deg: Suitable for applications with elevated temperatures, ensuring consistent performance.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Brown |
| Overall Length | 3.282 Inches |
| Barrel Length | 1.3 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 500 MCM |
| Stud Size | 5/8 Inch |
| Die Index | I-87 |
| Pad Size | 1.25 Inches L x 1.535 Inches W x 0.234 Inches Thk |
| Pad Holes | 1 |
| Barrel Type | Standard |
| ID x OD Size | 0.828 Inch ID x 1.062 Inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90°C |
