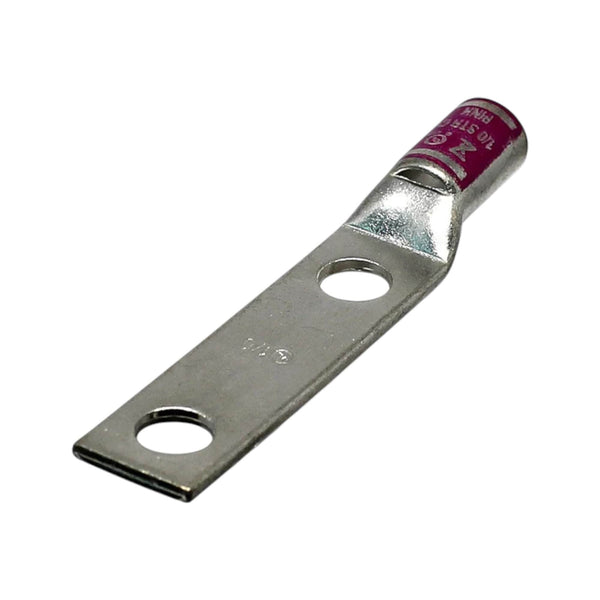

Copper Short Barrel Two Hole Compression Lugs 1/0 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09936
850 in stock
Open here
The Conversions Tech Copper Compression Lug is a durable and high-performance connector designed for the secure termination of 1/0 AWG conductors. With a 3/8-inch bolt size and 2-hole configuration, it provides a strong, stable connection ideal for a range of electrical applications. The standard barrel design allows for easy crimping, while the sight window ensures proper installation by providing clear visibility during the crimping process. The tin-plated finish enhances corrosion resistance, and the distinctive pink color code allows for quick and easy identification, making it a reliable and efficient choice for electrical connections in demanding environments.
Key Features
-
Seamless Electro-Tin Plated Copper Material: High-quality construction for reliable electrical conductivity and corrosion resistance.
-
Pink Color: Distinctive pink color code for quick identification in electrical systems.
-
3.043 Inch Overall Length: Optimal size for versatile use in various electrical applications.
-
0.75 Inch Barrel Length: Balanced barrel length for secure conductor termination.
-
Conductor Material: Copper: Utilizes copper, a highly conductive and durable material.
-
35 kV Voltage Rating: Suitable for applications with higher voltage requirements.
-
1/0 AWG Conductor Size: Accommodates 1/0 AWG wire size for diverse wiring needs.
-
3/8 Inch Stud Size: Compatible with standard 3/8-inch stud sizes for ease of installation.
-
I-42 Die Index: Designated die index for efficient and precise crimping.
-
1.937 Inch L X 0.738 Inch W X 0.125 Inch Thk Pad Size: Appropriate pad dimensions for secure electrical connections.
-
2 Pad Hole(S): Dual pad holes for flexibility in conductor termination.
-
1 Inch Pad Hole Spacing: Standardized spacing for consistent and organized installations.
-
Standard Barrel Type: Conforms to the industry standard barrel design for compatibility.
-
Size 0.39 Inch ID X 0.515 Inch OD: Specific inner and outer diameters for precise connections.
-
Barrel Type Chamfered Entry: Facilitates smooth and easy wire insertion during installation.
- Temperature Rating 90 Deg C: Suitable for applications with elevated temperature requirements.
Technical Specifications
| Wire Size | 1/0 AWG |
|---|---|
| Color | Pink |
| Overall Length (L) | 73.1mm (2.88") |
| Length 1 (L1) | 46.5mm (1.83") |
| Length 2 (L2) | 25.4mm (1.00") |
| Diameter (D) | 18.4mm (0.72") |
| Diameter 1 (D1) | 12.9mm (0.51") |
| Diameter 2 (D2) | 10.1mm (0.40") |
| Width (B) | 20.3mm (0.80") |
| Height (E) | 10.4mm (0.41") |
| Thickness (F) | 2.7mm (0.10") |
| Terminal Material | Tin-Plated Copper |
| Stud Size | 3/8" |
| Temperature Rating | 90°C |
| Voltage Rating | 35 kV |
| Max Amp Rating | 150 Amps |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Specifications
| Part Number | 210-09936 |
| Category | Electrical connector |
| Weight | 0.3 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 1/0 AWG, 3/8 Inch stud
CT P/N 210-09936 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA252N |
| Panduit | LCC1/0-12-X |
| NSI Industries | L10N * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
