Copper Short Barrel Two Hole Compression Lugs 1/0 AWG 5/16-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09934
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

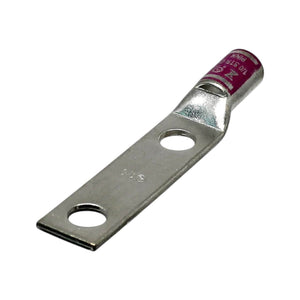

The Conversions Tech Copper Compression Lug is a robust and high-performance connector designed for the secure termination of 1/0 AWG conductors. With a 5/16-inch bolt size and 2-hole configuration, it provides a stable and reliable electrical connection for a wide range of applications. The standard barrel design ensures easy crimping, while the sight window allows for visual inspection during installation, guaranteeing a secure crimp every time. Its tin-plated finish enhances corrosion resistance, and the distinctive pink color code ensures quick and easy identification, making this lug an ideal choice for efficient, long-lasting electrical connections.
Key Features
-
Seamless Electro Tin Plated Copper Material: High-quality construction for reliable electrical conductivity and corrosion resistance.
-
Pink Color: Distinctive pink color code for quick identification in electrical systems.
-
2.793 Inch Overall Length: Optimal size for versatile use in various electrical applications.
-
0.75 Inch Barrel Length: Balanced barrel length for secure conductor termination.
-
Conductor Material: Copper: Utilizes copper, a highly conductive and durable material.
-
35 kV Voltage Rating: Suitable for applications with higher voltage requirements.
-
1/0 AWG Conductor Size: Accommodates 1/0 AWG wire size for diverse wiring needs.
-
5/16 Inch Stud Size: Compatible with standard 5/16-inch stud sizes for ease of installation.
-
I-42 Die Index: Designated die index for efficient and precise crimping.
-
1.687 Inch L X 0.738 Inch W X 0.125 Inch Thk Pad Size: Appropriate pad dimensions for secure electrical connections.
-
2 Pad Hole(S): Dual pad holes for flexibility in conductor termination.
-
7/8 Inch Pad Hole Spacing: Standardized spacing for consistent and organized installations.
-
Standard Barrel Type: Conforms to the industry standard barrel design for compatibility.
-
Inner Diameter 0.39 Inch: Specific inner diameter for precise connections.
-
Outer Diameter 0.515 Inch: Specific outer diameter for precise connections.
- Chamfered Type Cable Entry: Facilitates smooth and easy wire insertion during installation.
Technical Specifications
| Wire Size | 1/0 AWG |
|---|---|
| Color | Pink |
| L | 68.0mm (2.68") |
| L1 | 41.4mm (1.63") |
| L2 | 22.3mm (0.88") |
| D | 18.4mm (0.72") |
| D1 | 12.9mm (0.51") |
| D2 | 10.1mm (0.40") |
| B | 20.3mm (0.80") |
| E | 8.7mm (0.34") |
| F | 2.7mm (0.10") |
| Terminal Material | Tin-Plated Copper |
| Stud Size | 5/16" |
| Temperature Rating | 90°C |
| Voltage Rating | 35 kV |
| Max Amp Rating | 150 Amps |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
