Copper Short Barrel Two Hole Compression Lugs 1 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09932
1000 in stock
Open here

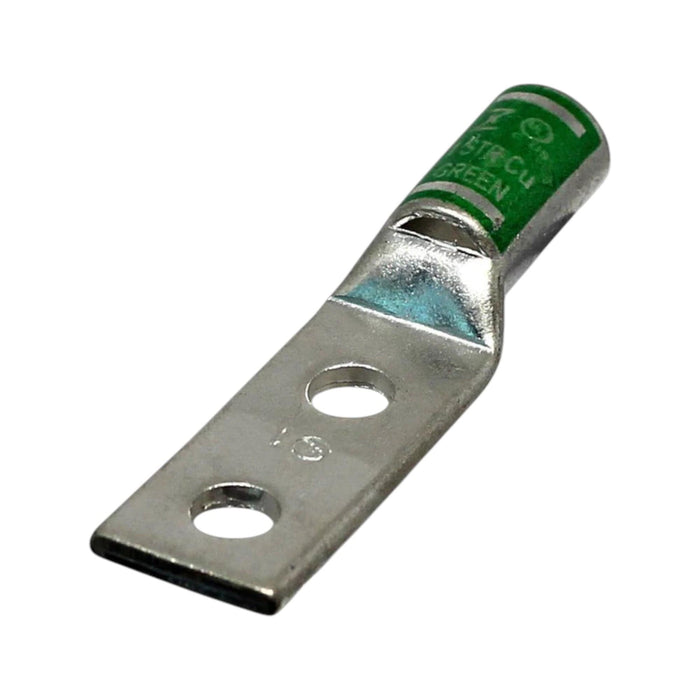

This Conversions Tech copper compression lug offers a reliable solution for various electrical applications. Its 1/2-inch bolt size and 5/8-inch hole spacing provide flexibility in installations, ensuring a secure fit for a wide range of wiring setups. The standard barrel construction, along with a convenient sight window, allows for easy and secure connections, while the tin-plated finish enhances corrosion resistance, ensuring long-term durability. The distinctive green color code allows for quick identification, making this lug both a durable and user-friendly choice for diverse electrical systems.
Key Features
- Seamless Electro-Tin Plated Copper Material: High-quality construction for reliable electrical conductivity and corrosion resistance.
- Green Color: Distinctive green color code for quick identification in electrical systems.
- 2.392 Inch Overall Length: Optimal size for versatile use in various electrical applications.
- 0.625 Inch Barrel Length: Balanced barrel length for secure conductor termination.
- Conductor Material: Copper: Utilizes copper, a highly conductive and durable material.
- 35 kV Voltage Rating: Suitable for applications with higher voltage requirements.
- 1 AWG Conductor Size: Accommodates 1 AWG wire size for diverse wiring needs.
- 1/2 Inch Stud Size: Compatible with standard 1/2-inch stud sizes for ease of installation.
- I-37 Die Index: Designated die index for efficient and precise crimping.
- 1.437 Inch L X 0.673 Inch W X 0.109 Inch Thk Pad Size: Appropriate pad dimensions for secure electrical connections.
- 2 Pad Hole(S): Dual pad holes for flexibility in conductor termination.
- 5/8 Inch Pad Hole Spacing: Standardized spacing for consistent and organized installations.
- Standard Barrel Type: Conforms to the industry standard barrel design for compatibility.
- Inner Diameter 0.359 Inch: Specific inner diameter for precise connections.
- Outer Diameter 0.468 Inch: Specific outer diameter for precise connections.
- Chamfered Type Cable Entry: Facilitates smooth and easy wire insertion during installation.
-
Temperature Rating 90 Deg C: Suitable for applications with a temperature rating of up to 90 degrees Celsius.
Technical Specifications
| Wire Size | 1 AWG |
|---|---|
| Color | Green |
| Overall Length (L) | 98.0mm (3.86") |
| Neck Length (L1) | 73.1mm (2.87") |
| Neck Length (L2) | 16.7mm (0.66") |
| Outer Diameter (D) | 16.7mm (0.66") |
| Inner Diameter (D1) | 11.6mm (0.45") |
| Hole Diameter (D2) | 9.1mm (0.36") |
| Width (B) | 20.3mm (0.80") |
| Hole Spacing (E) | 12.9mm (0.51") |
| Thickness (F) | 2.5mm (0.10") |
| Terminal Material | Tin-Plated Copper |
| Stud Size | 1/2" |
| Temperature Rating | 90°C |
| Voltage Rating | 35KV |
| Max Amp Rating | 85 Amps |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Specifications
| Part Number | 210-09932 |
| Category | Electrical connector |
| Weight | 0.12 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 1 AWG, 1/2 Inch stud
CT P/N 210-09932 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA1C2N |
| Panduit | LCC1-12W-E |
| NSI Industries | L1N * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
