Two-Hole Copper Compression Lug 1 AWG 5/16" Stud | 130A UL/CE
Shipping calculated at checkout
SKU: 210-98048B
1000 in stock
Open here

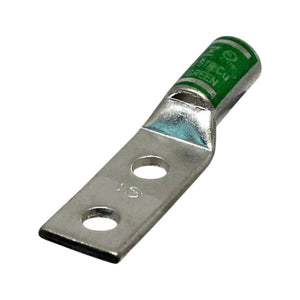

Two-hole short barrel compression lug for terminating 1 AWG copper conductors to 5/16-inch studs. Used in switchgear, panelboards, transformers, and industrial power distribution where dual-bolt mounting provides mechanical stability and reduced joint resistance. The short barrel design accommodates confined spaces while maintaining full current-carrying capacity. Tin-plated copper construction resists oxidation in standard indoor and controlled outdoor environments.
Specifications
- Conductor size: 1 AWG
- Stud size: 5/16"
- Pad holes: 2
- Hole spacing: 1" (25.4mm) / 0.34" (8.7mm) — verify application fit
- Overall length: 2.892" (73.5mm) / 2.61" (66.3mm)
- Barrel length: 0.625" (15.9mm)
- Neck length (L1): 1.63" (41.4mm)
- Neck length (L2): 0.88" (22.4mm)
- Pad dimensions: 1.937" L x 0.673" W x 0.109" Thk
- Inner diameter: 0.359" (9.1mm) / 0.46" (11.6mm)
- Outer diameter: 0.468" (11.9mm) / 0.68" (16.7mm)
- Width (B): 0.80" (20.3mm)
- Thickness (F): 0.10" (2.5mm)
- Material: Seamless electro tin-plated copper
- Color code: Green
- Die index: I-37
- Cable entry: Chamfered type
- Voltage rating: 35kV
- Temperature rating: 90°C
- Max amp rating: 130A
- Certifications: UL Recognized, CE Certified, RoHS Compliant
Cross-Reference
Equivalent form factor to standard two-hole compression lugs from major manufacturers. Die index I-37 matches common industry tooling for consistent crimp quality.
FAQ
What crimping tool and die should I use?
Use a compression tool with I-37 die index. Verify die alignment before crimping; the sight window allows visual confirmation of full conductor insertion.
Is this lug rated for outdoor or wet locations?
The 35kV voltage rating and 90°C temperature rating apply to standard installations. Environmental suitability depends on enclosure type and local code requirements; the tin-plated finish provides corrosion resistance for typical industrial atmospheres.
Why do the dimensions show two values for some specs?
Source data contains both fractional inch and metric conversions with minor discrepancies. Verify physical fit using the dimensional table before specifying for critical applications.
Specifications
| Part Number | 210-98048B |
| Category | Electrical connector |
| Weight | 0.12 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 1 AWG, 5/16 Inch stud
CT P/N 210-98048B is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA1C2N |
| Panduit | LCC1-12W-E |
| NSI Industries | L1N * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
