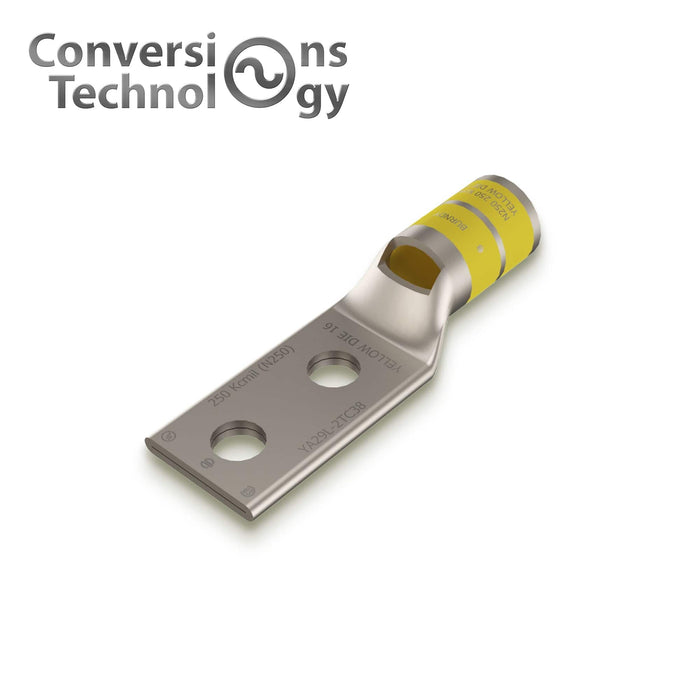

Copper Short Barrel Two Hole Compression Lugs 4/0 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98055
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Compression Lug is a durable and reliable connector designed for secure electrical connections. Built for 4/0 AWG conductors, it features a 1/4-inch bolt size and a 2-hole configuration, ensuring a stable and efficient connection. The standard barrel design facilitates easy crimping, while the sight window provides visual inspection during installation, ensuring a proper crimp. The tin-plated finish offers corrosion resistance, and the distinctive yellow color code ensures quick identification, making this lug an ideal choice for reliable, long-lasting performance in various electrical applications.
Key Features
- 4/0 AWG Conductor Size: Designed for securely terminating 4/0 AWG conductors, making it ideal for high-power electrical systems.
- 1/4-Inch Bolt Size: Provides a stable and strong connection with a 1/4-inch bolt size, ensuring a reliable attachment to terminals or equipment.
- 2-Hole Configuration: Dual attachment points offer a secure and stable connection, perfect for various electrical applications requiring robust connectivity.
- Standard Barrel Design: Allows for easy crimping with compression tools, ensuring a secure and efficient electrical connection every time.
- Sight Window: Provides visual inspection during installation, ensuring the crimp is properly made for optimal performance and security.
- Tin-Plated Finish: Enhances corrosion resistance, offering protection against environmental factors and ensuring long-lasting durability.
- Yellow Color Code: Facilitates quick and easy identification, improving organization and reducing the risk of errors during installation.
-
Durable and Reliable: Engineered for long-lasting performance, making it an excellent choice for a wide range of industrial, commercial, and electrical applications
Technical Specifications
| Material | Seamless Electro Tin Plated Copper |
|---|---|
| Color | Yellow |
| Overall Length | 3.053 Inches |
| Barrel Length | 0.875 Inch |
| Conductor Material | Copper |
| Conductor Size | 4/0 AWG |
| Stud Size | 1/4 Inch |
| Die Index | I-54 |
| Pad Size | 1.687 Inch L x 0.999 Inch W x 0.141 Inch Thk |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Inner Diameter | 0.546 Inch |
| Outer Diameter | 0.687 Inch |
| Cable Entry | Chamfered Type |
