Copper Short Barrel Two Hole Compression Lugs 6 AWG #10 Bolt Size
Shipping calculated at checkout
SKU: 210-98045C
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

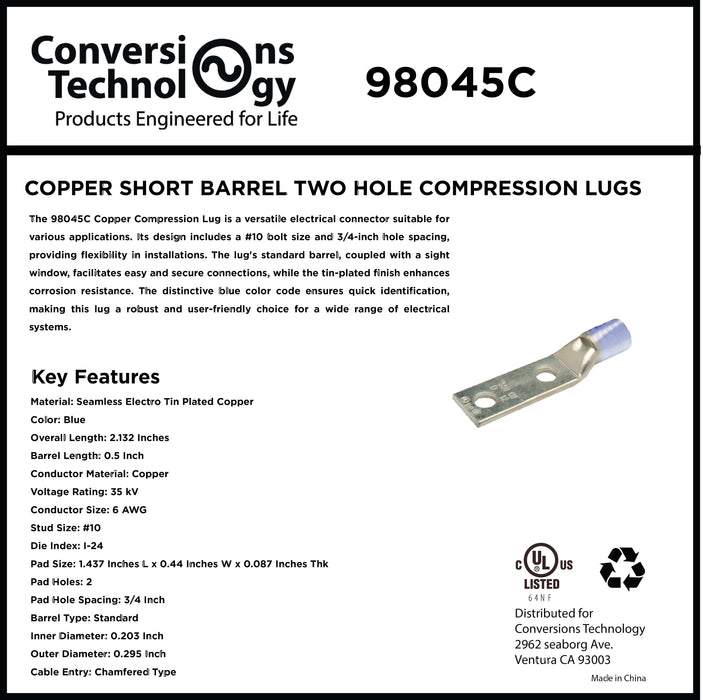

Conversions Tech 6 AWG Copper Compression Lug — Dual Hole, #10 Stud, Blue Color Code
The Conversions Tech 6 AWG Copper Compression Lug is a durable, high-performance connector designed for secure and efficient electrical terminations. Engineered from seamless electro-tin-plated copper, it ensures superior conductivity and corrosion resistance in demanding environments. This lug features a dual-hole pad configuration, #10 bolt size, and ¾-inch hole spacing for stable, vibration-resistant installations.
The standard barrel design with a sight window allows visual verification during crimping, ensuring complete conductor engagement. The blue color code identifies compatibility with 6 AWG conductors, while the chamfered cable entry simplifies wire insertion for consistent, professional results.
Key Features
- Seamless Tin-Plated Copper: Provides excellent conductivity and corrosion protection for long-lasting performance.
- Blue Color Code: Easy identification for 6 AWG wire applications per industry standards.
- Dual-Hole Pad: Two-hole configuration ensures a secure, vibration-resistant termination.
- Standard Barrel Design: Simplifies crimping and ensures compatibility with standard crimping tools.
- Sight Window: Enables visual inspection during installation to confirm proper conductor seating.
- Chamfered Cable Entry: Smooth entry guides conductors easily into the barrel, preventing strand damage.
- #10 Stud Size: Fits standard terminals and busbars with ease for consistent installation.
- High Voltage Rating: Rated for up to 35 kV applications.
- Die Index I-24: Ensures precise crimp alignment for UL-compliant terminations.
- Durable Finish: Tin plating prevents oxidation, making it suitable for indoor or outdoor environments.

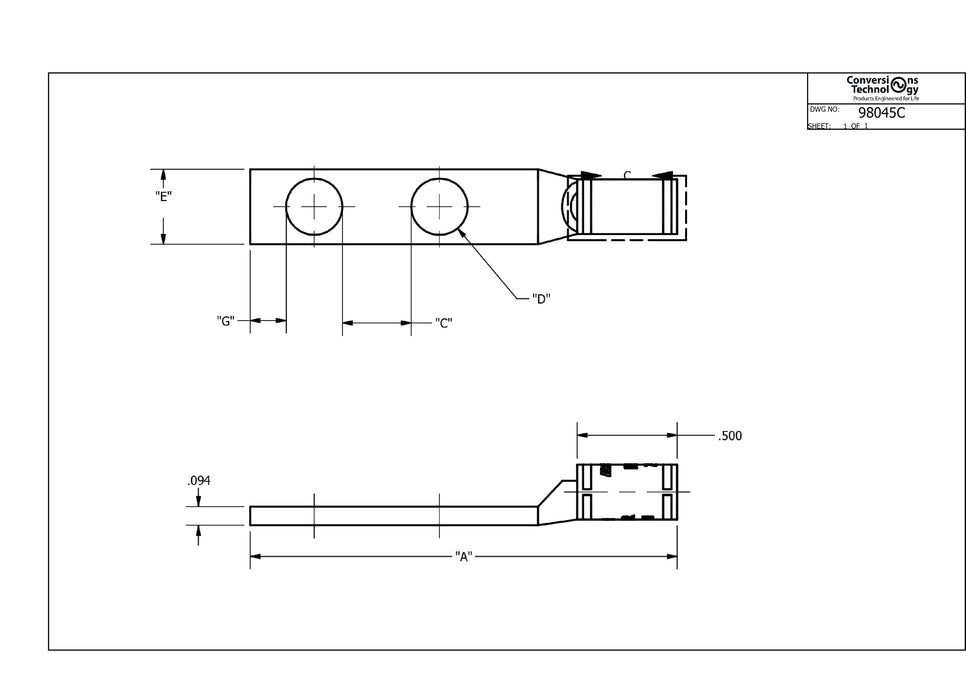

Technical Specifications
| Material | Seamless Electro-Tin-Plated Copper |
| Color Code | Blue |
| Overall Length | 2.132 in (54.1 mm) |
| Barrel Length | 0.5 in (12.7 mm) |
| Conductor Size | 6 AWG |
| Voltage Rating | 35 kV |
| Stud Size | #10 |
| Die Index | I-24 |
| Pad Size | 1.437 in L × 0.44 in W × 0.087 in Thk |
| Pad Holes | 2 |
| Pad Hole Spacing | ¾ in (19.05 mm) |
| Barrel Type | Standard |
| Inner Diameter | 0.203 in (5.15 mm) |
| Outer Diameter | 0.295 in (7.49 mm) |
| Cable Entry | Chamfered Type |
Applications
- Industrial and commercial electrical panels
- Power distribution and grounding systems
- Renewable energy and solar installations
- HVAC and control system wiring
- Marine, automotive, and heavy-equipment applications
The Conversions Tech 6 AWG Dual-Hole Copper Compression Lug combines mechanical strength, electrical efficiency, and ease of installation — providing reliable terminations for power and control systems where safety and durability matter most.
FAQs (Click to Expand)
1. What wire size does this lug support?
It is designed for 6 AWG copper conductors, offering a perfect fit for standard crimping applications.
2. What does the blue color indicate?
The blue color code signifies compatibility with 6 AWG wire according to the industry-standard identification system.
3. What is the barrel type?
This lug features a standard barrel with a chamfered entry for smooth wire insertion and consistent crimping results.
4. Does it have a sight window?
Yes. The built-in sight window allows installers to verify full conductor insertion before crimping.
5. What stud size is supported?
It supports a #10 stud size for mounting to terminals and grounding bars.
6. What is the rated voltage?
This lug is rated for up to 35 kV, suitable for high-voltage electrical systems.
7. Is the lug tin-plated?
Yes. The electro-tin plating improves conductivity and provides corrosion resistance in indoor and outdoor installations.
8. What is the die index for crimping?
The designated I-24 die index should be used for accurate and UL-compliant crimping results.
9. What applications is it best suited for?
It’s ideal for industrial panels, solar installations, and grounding systems requiring strong, low-resistance terminations.
10. Why choose Conversions Tech lugs?
Conversions Tech compression lugs are precision-machined, UL-tested, and manufactured for reliable conductivity, corrosion protection, and consistent quality across all voltage ranges.
