Two-Hole Compression Lug 8 AWG 1/2" Stud | 35kV 90°C Tin-Plated Copper
Shipping calculated at checkout
SKU: 210-09910
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

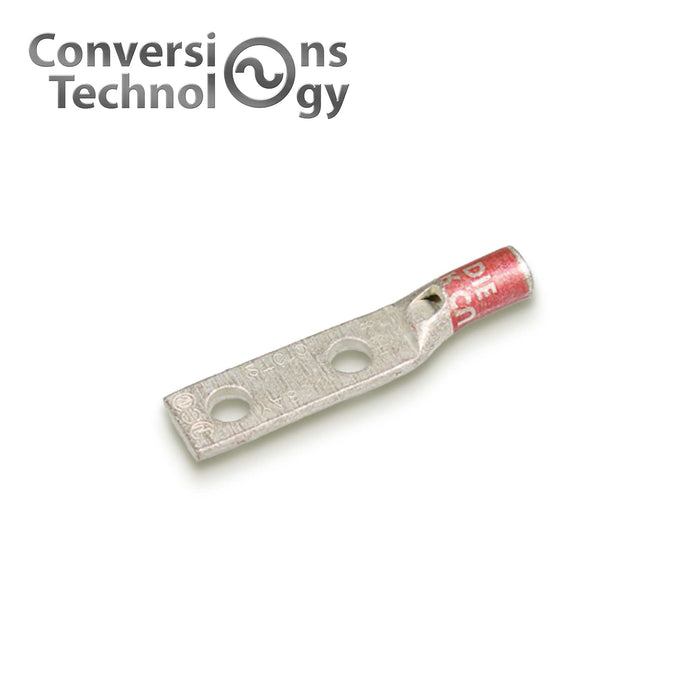

The Conversions Tech two-hole compression lug is a short-barrel terminal designed for 8 AWG copper conductors. Engineered for panel, equipment, and structural grounding applications where dual-bolt mounting provides mechanical redundancy. The tin-plated copper construction delivers corrosion resistance and stable conductivity in commercial and industrial electrical systems. A sight window enables visual verification of conductor insertion depth during crimping. The red color code supports quick wire size identification in crowded termination cabinets.
Specifications
- Conductor Size: 8 AWG
- Stud/Bolt Size: 1/2"
- Pad Configuration: 2 holes, 5/8" (0.625") hole spacing
- Pad Dimensions: 1.437" L x 0.486" W x 0.093" thick
- Barrel Type: Standard short barrel
- Barrel Length: 0.5"
- Inner Diameter: 0.179"
- Outer Diameter: 0.272"
- Overall Length: 2.132"
- Cable Entry: Chamfered
- Material: Seamless electro tin-plated copper
- Color Code: Red
- Die Index: I-21
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Max Amp Rating: 50A
- Certifications: UL Recognized, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to two-hole compression lug form factors from Panduit, Burndy, and Ilsco for 8 AWG copper terminations. Specified by Conversions Tech engineering and manufactured to these dimensions by certified partner factories.
FAQ
What crimping tool die do I need for this lug?
Use die index I-21. Verify your crimping tool manufacturer's die chart to confirm compatibility with short-barrel copper compression lugs.
Is this lug rated for medium-voltage applications?
The 35 kV voltage rating supports use in medium-voltage terminations. Confirm application requirements against your system voltage and clearance specifications.
Why does the pad have two holes with 5/8" spacing?
Dual-hole mounting distributes mechanical stress and provides backup retention if one bolt loosens. The 5/8" spacing matches standard busbar and equipment pad drilling patterns.
