Copper Short Barrel Two Hole Compression Lugs 8 AWG #10 Bolt Size
Shipping calculated at checkout
SKU: 210-98044A
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech reliable copper compression lug designed for a wide range of electrical applications. It accommodates an 8 AWG conductor size and features 2 holes for secure fastening with #10 bolts, ensuring a strong connection. The lug includes a standard barrel with an integrated sight window, enabling efficient installation and visual inspection. Its tin-plated finish enhances corrosion resistance, while the red color code ensures easy identification and compatibility with standard color-coding systems. This lug guarantees durable and efficient performance in various electrical systems.
Key Features
- Copper Construction – Provides excellent electrical conductivity for reliable and efficient connections.
- 8 AWG Conductor Size – Specifically designed for 8 AWG wire, making it ideal for smaller electrical conductors.
- #10 Bolt Size – Features a standard #10 bolt size for secure and stable connections.
- Two-Hole Design – Dual holes ensure a more secure fastening and effective electrical connection.
- Standard Barrel – The standard barrel ensures easy wire insertion and consistent compression.
- Sight Window – Built-in sight window allows for quick visual inspection of the crimped connection for proper installation.
-
Tin Plating & Red Color Code – Tin plating enhances corrosion resistance, while the red color code allows for quick identification and compatibility with standard color-coding systems.

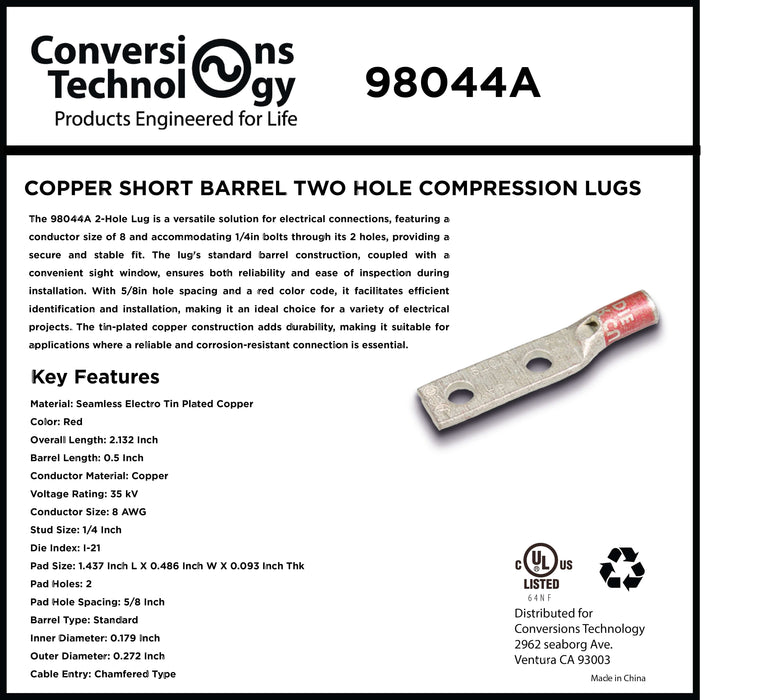

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Red |
| Overall Length | 2.132 Inch |
| Barrel Length | 0.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 8 AWG |
| Stud Size | 10 |
| Die Index | I-21 |

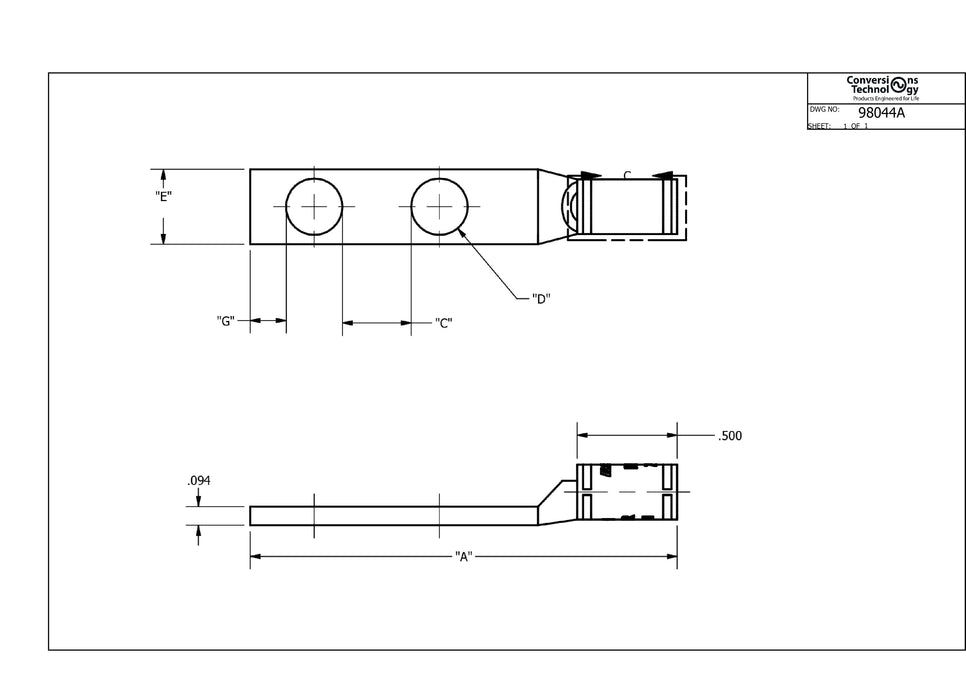

| Pad Size | 1.437 Inch Length x 0.486 Inch Width x 0.093 Inch Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 5/8 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.179 Inch |
| Outer Diameter | 0.272 Inch |
| Cable Entry | Chamfered Type |
