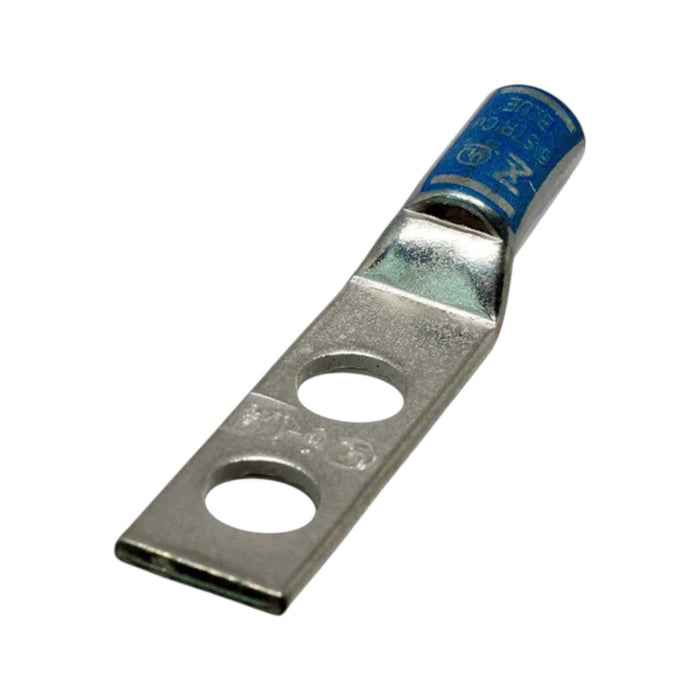

Two-Hole Copper Compression Lug 6 AWG 1/4" Stud, 25-Pack | 90°C, Tin-Plated
Shipping calculated at checkout
SKU: 210-09914-25
36 in stock
Open here
Two-hole copper compression lug for terminating 6 AWG copper conductors to 1/4-inch studs. Designed for medium-voltage applications up to 35 kV with a 90°C temperature rating. The standard barrel with chamfered cable entry accepts 6 AWG wire, while the dual-hole pad provides mechanical redundancy for critical connections. Tin-plated seamless copper construction resists corrosion; blue color code enables fast field identification. Built-in sight window allows visual verification of proper crimp compression. Common applications include switchgear terminations, transformer connections, motor leads, and power distribution panels where dual-bolt retention is specified.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 6 AWG
- Stud Size: 1/4 Inch
- Pad Holes: 2
- Pad Hole Spacing: 1 Inch
- Pad Size: 1.687" Length x 0.44" Width x 0.087" Thickness
- Overall Length: 2.382 Inches
- Barrel Type: Standard
- Barrel Length: 0.5 Inch
- Inner Diameter: 0.203 Inch
- Outer Diameter: 0.295 Inch
- Cable Entry: Chamfered Type
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-24
- Color Code: Blue
Cross-Reference
Equivalent form factor to Burndy YAV, Panduit LCCX, and Ilsco CTLU two-hole compression lugs for 6 AWG applications. Compatible with standard industry tooling and dies.
FAQ
What crimp die do I use with this lug?
Use die index I-24. The built-in sight window confirms proper compression—wire should fill the window after crimping.
Is this lug rated for medium voltage?
Yes. 35 kV voltage rating suits switchgear and transformer terminations where medium-voltage ratings are required.
Why two holes instead of one?
Dual-hole mounting distributes mechanical load and prevents rotation under vibration or thermal cycling. 1-inch hole spacing matches standard busbar drilling patterns.
Specifications
| Part Number | 210-09914 |
| Category | Electrical connector |
| Weight | 0.12 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 6 AWG, 1/4 Inch stud
CT P/N 210-09914 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA6C2N * |
| Panduit | LCC6-12 * |
| NSI Industries | L6N * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
