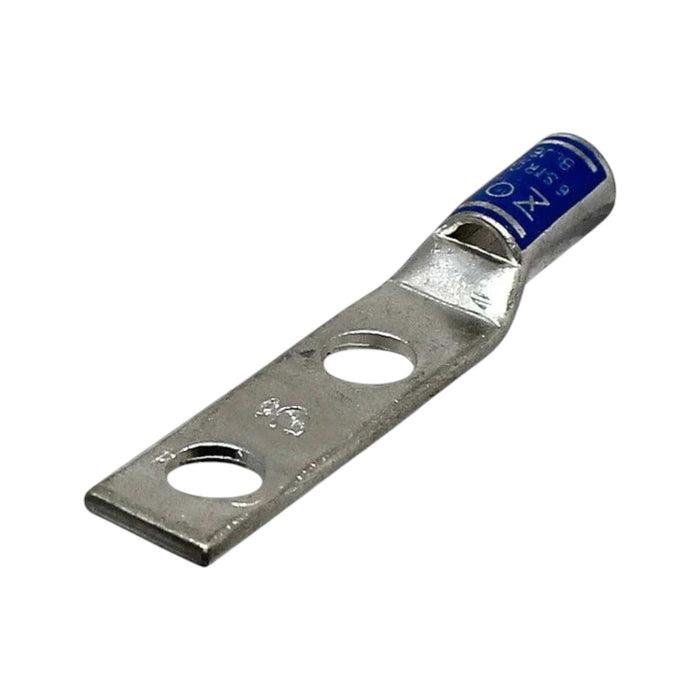

Short Barrel Two-Hole Compression Lug 6 AWG 3/8" | 90°C, Blue
Shipping calculated at checkout
SKU: 210-09917
Only 4 in stock
Open here
The Conversions Tech short barrel two-hole compression lug terminates 6 AWG copper conductors to panels, transformers, switchgear, and bus bars where dual-bolt mounting provides mechanical stability and electrical redundancy. The standard barrel profile accepts standard crimp tooling while the integrated sight window permits visual verification of full conductor insertion before and after compression.
Specifications
- Conductor Size: 6 AWG
- Material: Seamless Electro-Tin Plated Copper
- Stud Size: 3/8 Inch (two holes)
- Pad Holes: 2
- Pad Hole Spacing: 1 Inch
- Pad Size: 1.937" L x 0.598" W x 0.087" T
- Overall Length: 2.632 Inches
- Barrel Type: Standard
- Barrel Length: 0.5 Inch
- Inner Diameter: 0.203 Inch
- Outer Diameter: 0.295 Inch
- Cable Entry: Chamfered Type
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-24
- Color Code: Blue
Cross-Reference
Equivalent form factor to Panduit and Burndy two-hole standard barrel compression lugs for 6 AWG / 3/8" stud applications. Die index I-24 matches common industry tooling specifications.
FAQ
What crimp die should I use with this lug?
Use die index I-24. This specification ensures proper compression force and barrel fill for 6 AWG copper conductor. Verify die compatibility with your crimp tool manufacturer.
Is this lug rated for wet or corrosive environments?
The electro-tin plating provides corrosion resistance suitable for standard industrial and commercial environments. The 90°C temperature rating applies to dry locations per standard application.
Why two holes instead of one?
Dual 3/8" studs distribute mechanical load and provide redundant electrical contact paths. The 1-inch hole spacing matches standard bus bar drilling patterns.
Specifications
| Part Number | 210-09917 |
| Category | Electrical connector |
| Weight | 0.12 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 6 AWG, 3/8 Inch stud
CT P/N 210-09917 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA6C2N * |
| Panduit | LCC6-12 * |
| NSI Industries | L6N * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
