Copper Short Barrel Two Hole Compression Lugs 4 AWG 5/16 Inch Bolt Size

Sale price $0.91

Shipping calculated at checkout

SKU: 210-09919

1000 in stock

🖨️ Print Spec Sheet

Shop with confidence

  • Fast shipping
  • Easy exchanges
  • Trusted reviews
  • Eco materials
  • Price guarantee
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Venmo
  • Visa

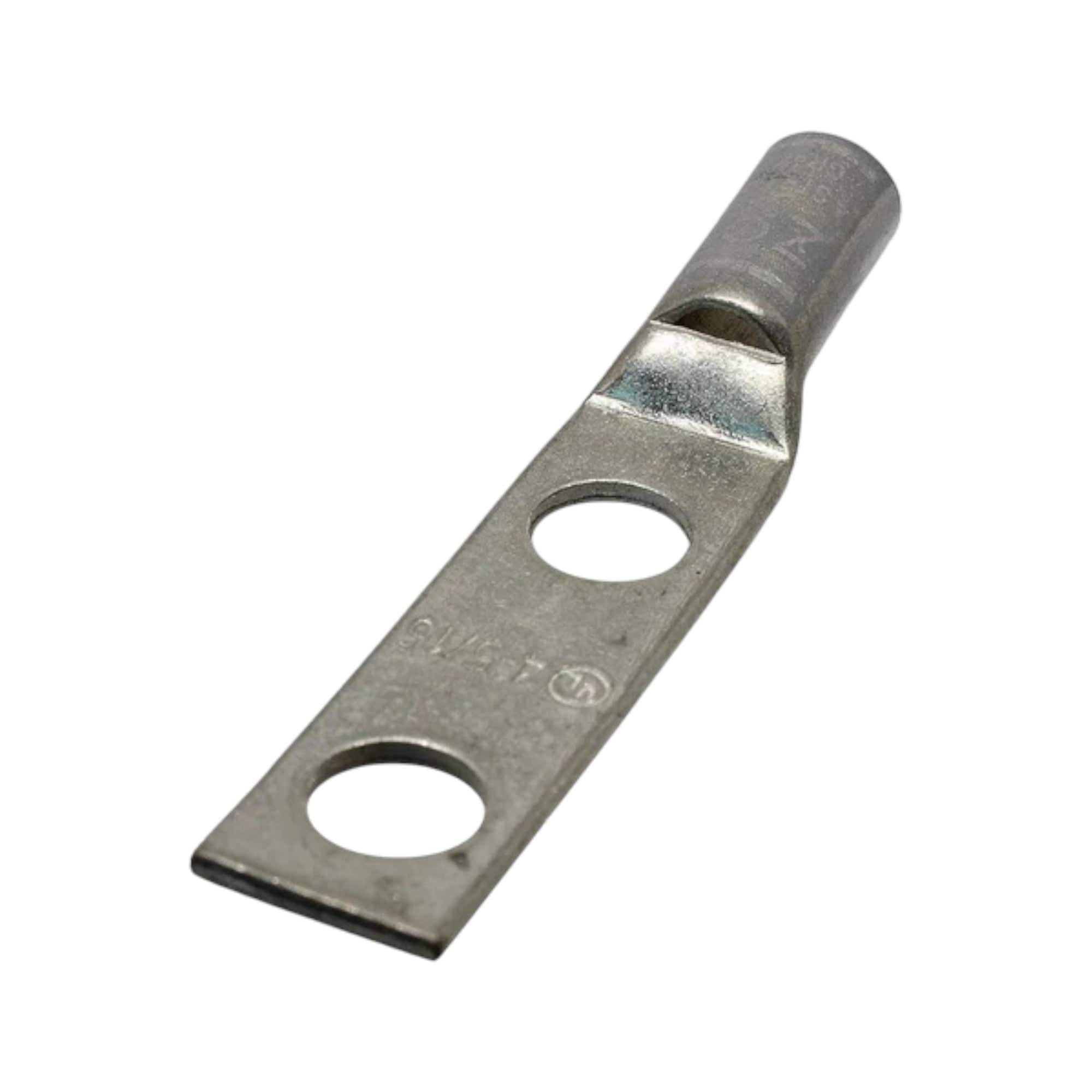

The Conversions Tech robust copper connector designed for a range of electrical applications. It supports a 4 AWG conductor size and features two holes, a 5/16-inch bolt size, and 1-inch hole spacing, ensuring secure and efficient electrical connections. The lug includes a standard barrel and a built-in sight window for easy visual inspection. Its tin-plated finish offers superior corrosion resistance, while the distinctive gray color code allows for quick identification and compatibility with standard color-coding systems. This connector guarantees reliable and long-lasting performance in various electrical settings.

Key Features

  • Copper Construction – Provides reliable electrical conductivity and ensures long-term performance in electrical systems.
  • 4 AWG Conductor Size – Specifically designed for 4 AWG wire, making it suitable for medium to larger conductors.
  • 5/16-inch Bolt Size – Standard bolt size for secure and stable connections.
  • 1-inch Hole Spacing – Offers optimal spacing for secure attachment points, ensuring reliable electrical connections.
  • Standard Barrel – Features a standard barrel for easy wire insertion and consistent compression.
  • Sight Window – Allows for visual inspection of the crimped connection, ensuring proper installation and quality control.
  • Tin Plating & Gray Color Code – Tin plating enhances corrosion resistance, while the gray color code ensures quick identification and compatibility with standard color-coding systems.

Technical Specifications

Material Seamless Electro-Tin Plated Copper
Color Gray
Overall Length 2.671 Inches
Barrel Length 0.5 Inch
Conductor Material Copper
Voltage Rating 35 kV
Conductor Size 4 AWG
Stud Size 5/16 Inch
Die Index I-29
Pad Size 1.937 Inches Length x 0.486 Inches Width x 0.093 Inches Thickness
Pad Holes 2
Pad Hole Spacing 1 Inch
Barrel Type Standard
Inner Diameter 0.25 Inch
Outer Diameter 0.343 Inch
Cable Entry Chamfered Type
