Short Barrel Compression Splice 750 kcmil | Center Wire Stop, 90°C
Shipping calculated at checkout
SKU: 210-98126
Only 27 in stock

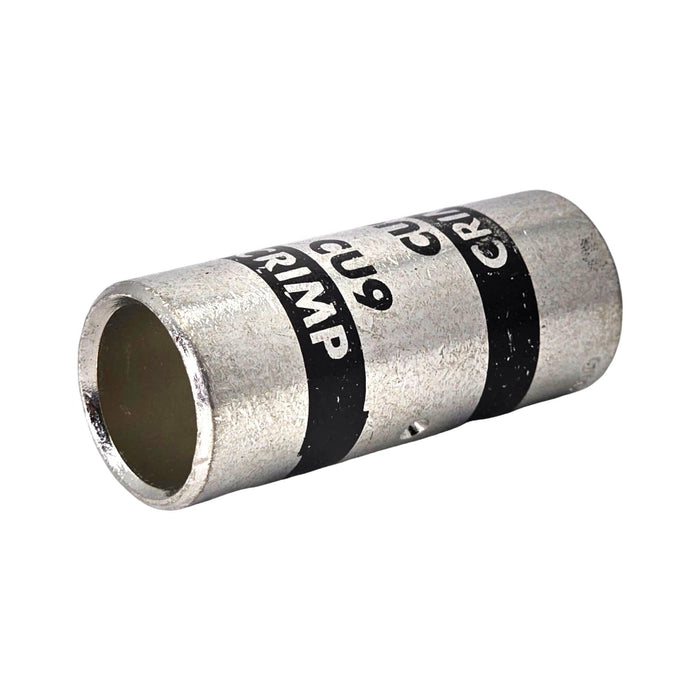

The Conversions Tech Copper Short Length Compression Splice is a center wire stop connector engineered for heavy-duty grounding and bonding applications. Designed for 750 kcmil copper conductors, this splice provides a secure electrical connection in power distribution systems, industrial machinery, renewable energy installations, electrical panels, switchboards, commercial construction, data centers, telecommunications equipment, generators, and utility grid infrastructure.
Specifications
- Type: Center Wire Stop
- Conductor Size: 750 kcmil
- Length: 3.375 inches
- Inner Diameter: 1.031 inches
- Outer Diameter: 1.313 inches
- Barrel Type: Short with Chamfered End
- Conductor Material: Copper
- Body Material: Electro-Tin Plated High Strength Seamless Copper
- Color Code: Black
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Application: Grounding and Bonding
- Certifications: UL Certified, RoHS Compliant
Cross-Reference
This short barrel center wire stop splice is equivalent in form and function to compression splices offered by major electrical manufacturers, providing comparable electrical performance and dimensional specifications at competitive distributor pricing.
FAQ
What crimping pattern is required for this 750 kcmil compression splice?
Install using the number and sequence of crimps specified by your compression tool manufacturer for 750 kcmil copper splices. The center wire stop ensures proper conductor insertion depth. Verify die compatibility with 1.313" outer diameter before installation.
Can this splice be used for applications other than grounding and bonding?
The specified application is grounding and bonding. While the 35 kV voltage rating and 750 kcmil conductor capacity suggest broader power distribution suitability, verify with your engineer or inspector that this center wire stop design meets your specific circuit requirements.
Direct Cross-Reference — Long Barrel Butt Splice, 750 kcmil
CT P/N 210-98126 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Panduit | SCL750-6 * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
