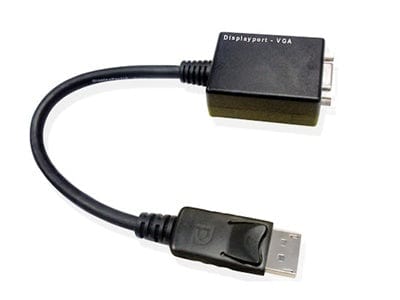

Audio Video Adapter | DisplayPort to VGA Cable

Sale price $15.56

Shipping calculated at checkout

SKU: DPV-A

In stock

🖨️ Print Spec Sheet

Shop with confidence

  • Fast shipping
  • Easy exchanges
  • Trusted reviews
  • Eco materials
  • Price guarantee
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Venmo
  • Visa



Conversions Tech DP 1.1a → VGA Active Conversion Module

Transcodes dual-lane DisplayPort™ video into precision 0–700 mVpp analog RGBHV—driver-free, bus-powered.

Engineering Highlights

  • 154 MHz Pixel Clock – sustains 1920 × 1200 @ 60 Hz (8-bpc) or 1920 × 1080 @ 60 Hz (10-bpc)
  • 10-bit Triple-DAC – 332 Msps RGB pipeline, 75 Ω source impedance, DNL < ±0.25 LSB
  • Embedded EDID EEPROM – VGA profile auto-prefetched prior to link training for deterministic HPD handshake
  • ±0.5 % SSC – spread-spectrum clocking integrated on DP PLL to attenuate peak EMI & pass FCC/CE Class B
  • Micropower Architecture – 1.4 W active, 0.1 W standby, harvested from DP pin-20 (3.3 V; < 500 mA)

Technical Specification Matrix

Parameter Specification
DisplayPort Input DP 1.1a, 1 or 2 lanes @ 2.7 Gb/s/lane + 1 Mb/s AUX
Maximum Pixel Clock 154 MHz (8-bpc) · 144 MHz (10-bpc)
Analog RGB Output 0–700 mVpp, 3-channel, 75 Ω drive
DAC Resolution 10-bit, integral linearity < ±0.4 LSB
EDID Handling On-chip 256-byte EEPROM · VGA EDID template
Hot-Plug & Sink Detect HPD monitoring + DDC pull-down sensing
EMI Compliance Spread-Spectrum (±0.5 %) · FCC/CE Class B
Power Budget Active 1.4 W · Standby 0.1 W (3.3 V rail)

Application Domains

Control-room workstations • Legacy projector QA rigs • Secure NOC consoles • Digital-signage players • Hybrid AV switchers • Academic & corporate training labs



4 Reasons Pros Buy Direct from Conversions Tech

Headquartered in business-friendly Wyoming, we design, test, and ship every product from inside the United States—delivering genuine “Made-for-America” quality without the big-box markup.

Our in-house team owns every CAD file, mold, and QA station behind our weatherproof boxes, conduit bodies, and power inverters. Vertical control means tighter tolerances, UL-listed safety, and up to 30 % lower cost than private-label imports.

Thousands of SKUs sit ready to go. Orders placed by 2 p.m. ship the same day, keeping contractors, OEMs, and distributors on schedule.

Need a torque spec or an OEM quote at dawn? You’ll speak directly with the Conversions Tech engineering desk—not a script reader—for instant answers, custom kitting, and private-label options.

Bottom line: For rugged, code-compliant electrical solutions shipped fast from a trusted U.S. source, choose Conversions Tech and build it right the first time.
