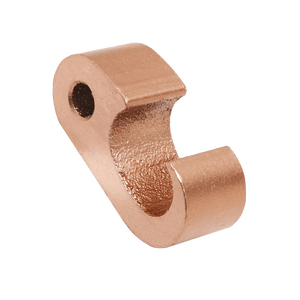

Fig 6 Irreversible Compression Connector 250-500 MCM / 1/0-2/0 STR
Shipping calculated at checkout
SKU: 610-23178
In stock
Open here
Fig 6 Type Irreversible Compression Connectors are parallel conductor splices engineered for joining two continuous conductors in medium-to-large gauge applications. Designed for direct burial installations, these connectors serve underground distribution, utility, and lightning protection systems where permanent, maintenance-free connections are required. The compact form factor allows straightforward taping after compression, reducing installation time in confined spaces.
Specifications
- Conductor Range: 250-500 MCM or 1/0-2/0 AWG stranded
- Voltage Rating: 600 Volts
- Temperature Rating: 90°C heat resistant
- Material: Copper alloy
- Configuration: Accommodates two continuous parallel conductors
- Pre-filled with anti-oxidant compound
- UL 467 listed (grounding and bonding)
- UL 96 listed (lightning protection components)
- Application: Direct burial
Cross-Reference
Equivalent to Burndy Y-type and Blackburn compression splices in conductor range and application. Conversions Tech specifications match major manufacturer dimensional standards at reduced cost.
FAQ
Can this connector be used for both 250-500 MCM and 1/0-2/0 AWG?
Yes. The Fig 6 connector accommodates either conductor range through the same die set, providing flexibility for inventory stocking across multiple job requirements.
Is a specific compression tool required?
Install with industry-standard compression tools and dies sized for the conductor range. Verify proper die selection to achieve listed electrical and mechanical performance.
Does UL 96 listing apply to all installations?
UL 96 certification specifically covers lightning protection system applications. UL 467 covers general grounding and bonding. Both listings are present; specify the appropriate standard based on application code requirements.
Availability: This item ships on our standard restock cycle — typical lead time 2–3 weeks. Order now to reserve your place in the queue, or email sales@conversionstech.com for expedited options and firm dates on volume orders.
Specifications
| Part Number | 610-23178 |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
Cross-Reference: 610-23178
| Brand | Part Number | Notes |
|---|---|---|
| Burndy | YGHC-C series | HYGROUND irreversible tap class, 250-500 kcmil run — match by run/tap range* |
| Conversions Tech | 610-23178 | distributor-direct |
*Cross by rod diameter, cable range, and UL 467 direct-burial listing - verify die index for your tooling. Trademarks belong to their owners.
See also ground rods and irreversible compression grounding. Contractor & distributor pricing →
