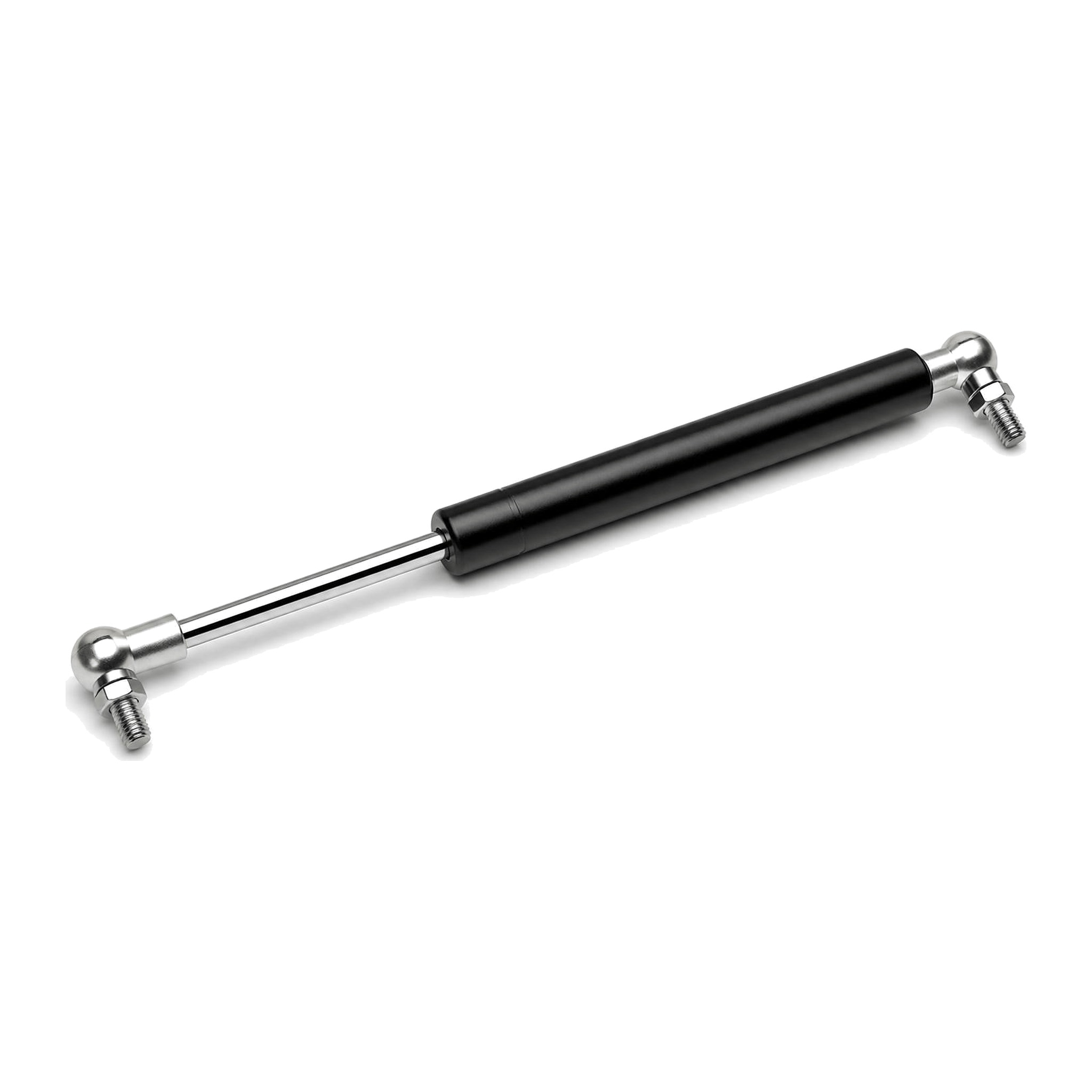

Gas Spring 14.76 in (375 mm), 6.50 in Stroke, 22-110 lb | M6 Ends | CT-GS18-08-375-165
Shipping calculated at checkout
SKU: CT-GS18-08-375-165-0100N
50 in stock
Open here

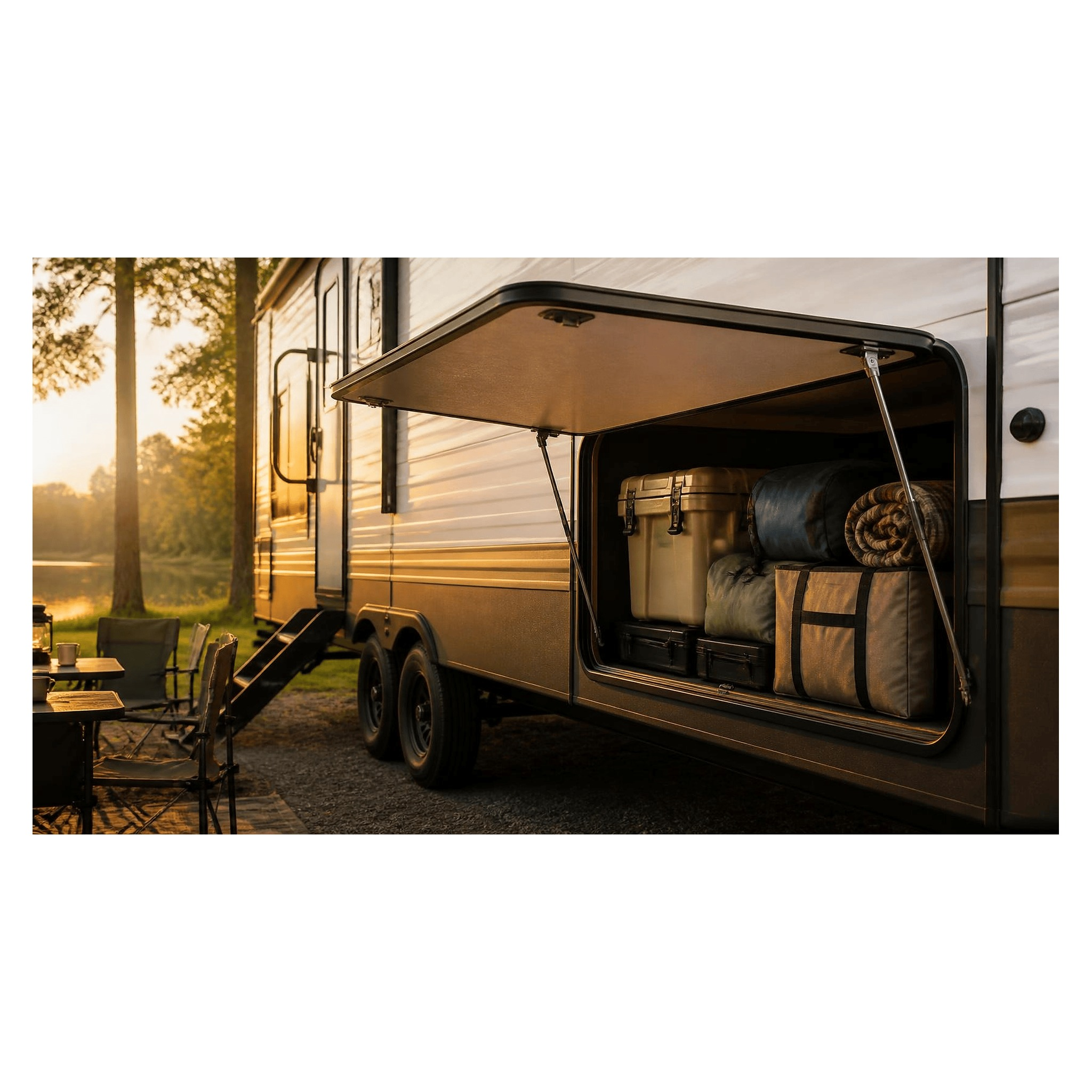

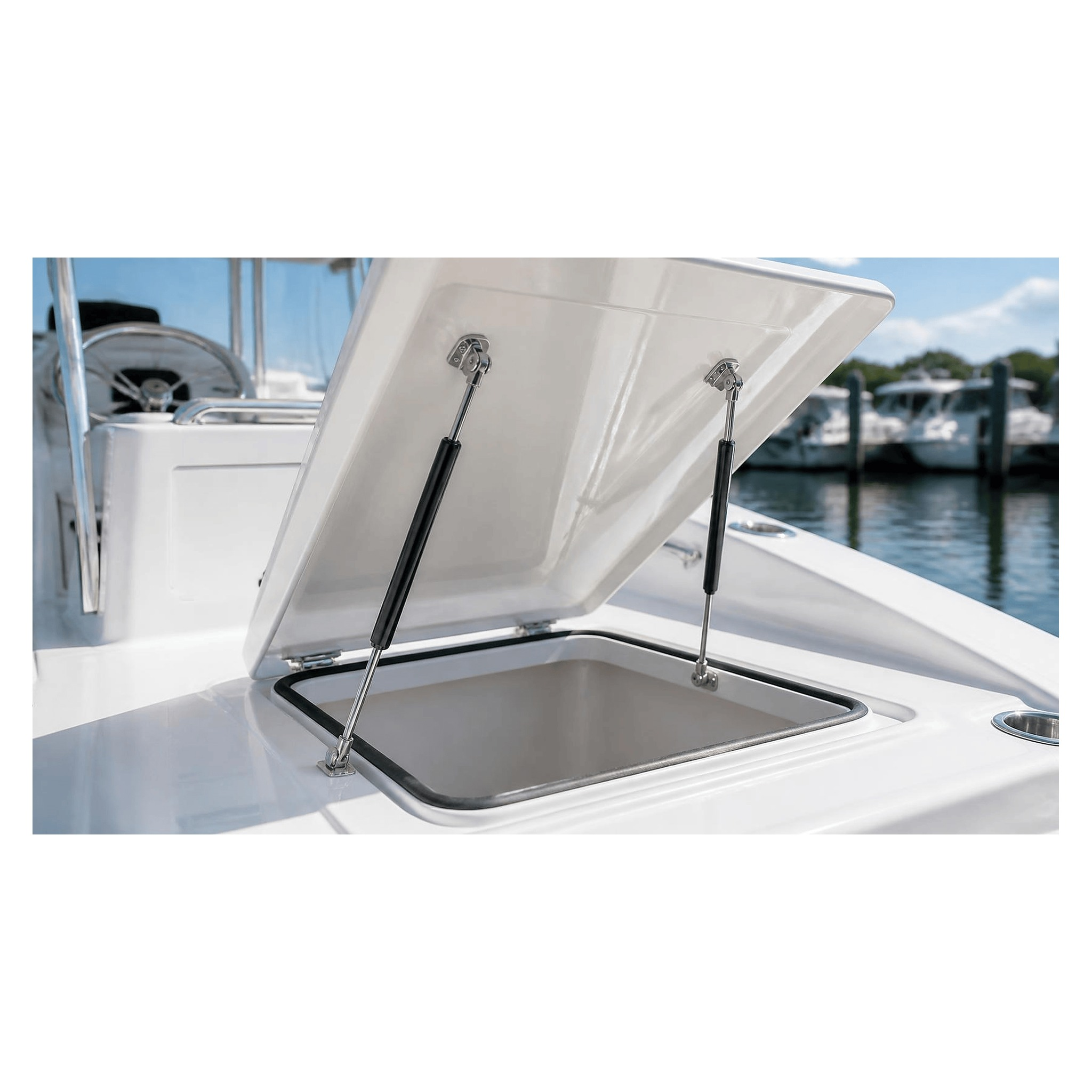

The longest and strongest size in the standard program. It's built for RV exterior storage bays, boat deck hatches, work-truck compartment doors and storage-bed platforms, used two per lid.
| Part no. base | CT-GS18-08-375-165 |
|---|---|
| Extended length (L) | 14.76 in (375 mm) |
| Stroke (S) | 6.50 in (165 mm) |
| Compressed length (calc.) | 8.27 in (210 mm), L − S, before fittings |
| Tube Ø | 0.71 in (18 mm) |
| Rod Ø | 0.31 in (8 mm) |
| Thread | M6 both ends |
| Forces (variants) | 22 / 33 / 44 / 55 / 66 / 77 / 110 lb (10 / 15 / 20 / 25 / 30 / 35 / 50 kg) |
| Max friction FR (8 mm platform) | 60 N (13 lbf) |
| Progression X (8 mm platform) | ≈1.35 |
| Material | MS standard; stainless on request |
Same-day shipping on in-stock items. Volume, OEM and wholesale pricing: cs@conversionstech.com.
Product images are illustrative renderings.
