12 AWG Solid Grounding Pigtails with 10-32 Screws | 50-Pack | 686-012
Shipping calculated at checkout
SKU: 686-012
In stock
Open here

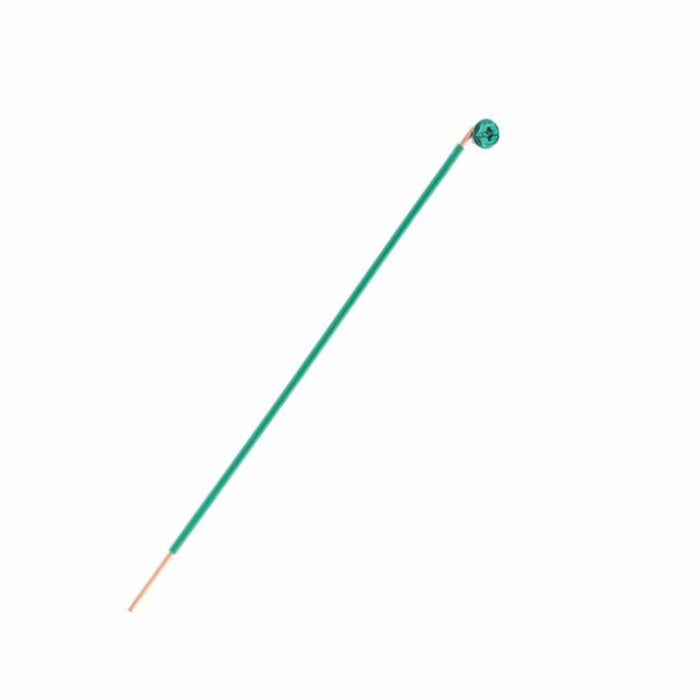

CT 686-012 — 12 AWG solid copper grounding pigtails with green thread-forming 10-32 grounding screws, 50-pack. Pre-cut green THHN tails with a stripped end and a captive screw, for bonding devices and metal boxes to the equipment grounding conductor without putting the device in series with the ground path. Direct cross for Ideal 30-3404 (50-pack).
| Part No. | 686-012 |
|---|---|

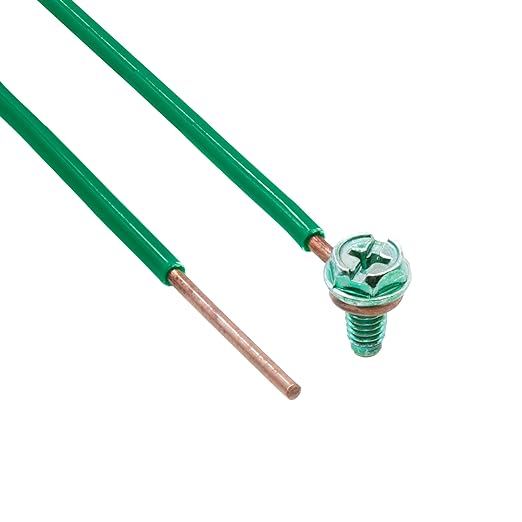

| Conductor | 12 AWG solid bare-copper, green insulated tail, stripped one end |

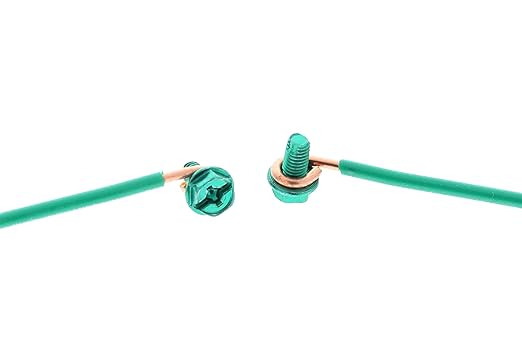

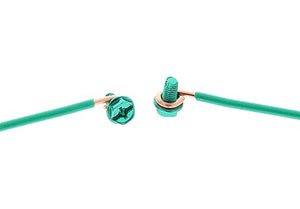

| Screw | Green thread-forming 10-32 grounding screw, combination head |

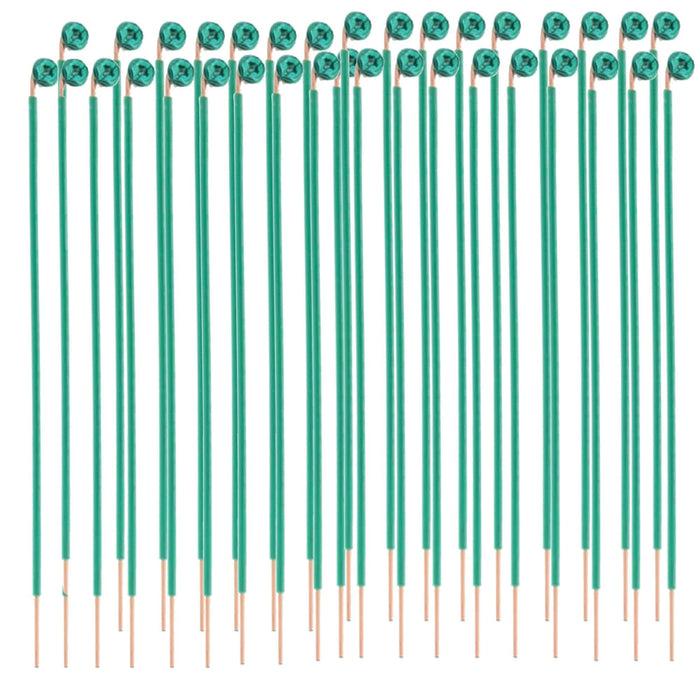

| Package | 50 pigtails with screws |
| Rating | 600 V, 90°C conductor; screw meets NEC 250.8(A)(6) thread-forming machine screw |
Cross-reference
| Manufacturer | Part No. | Notes |
|---|---|---|
| Ideal | 30-3404 | 12 AWG solid, 6.5 in, with screws, 50-pack |
Where it's required
- Every metal box with an equipment grounding conductor — NEC 250.148 (splice the EGCs and pigtail to the device so removing the device does not open the ground)
- Bonding receptacle grounding terminals to metal boxes — NEC 250.146
- Switch and luminaire grounding in metal boxes — NEC 404.9(B), 410.44
How to install

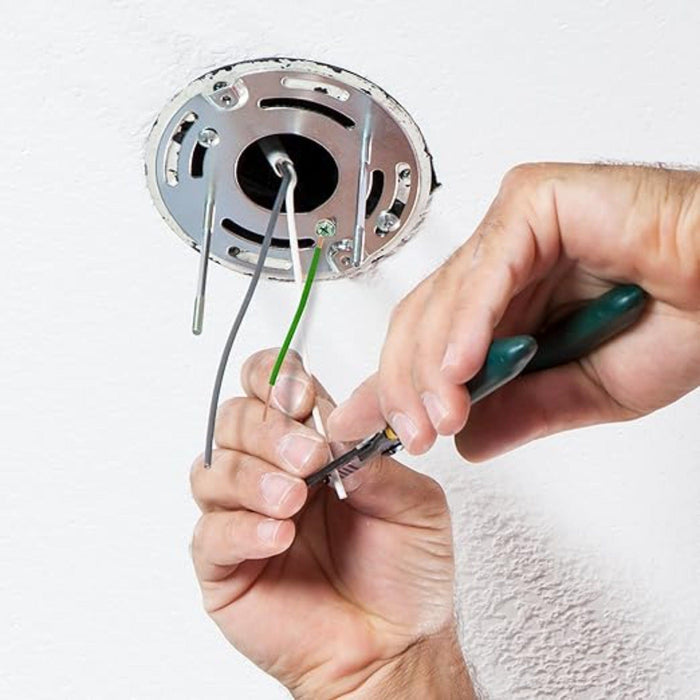

Join the circuit EGCs and the pigtail with a listed connector; drive the green screw into the box's factory-tapped 10-32 hole (never a knockout or a sheet-metal screw — NEC 250.8(B)); land the pigtail's free end on the device grounding terminal. Code detail: Grounding Accessories and the NEC.
Ships from Oxnard, CA. Volume and trade pricing through the trade desk. Also available as a 2-pack.
