Ground Lay in Rebar Clamp Wire Range 2 1/4-2" Pipe Size
Shipping calculated at checkout
SKU: 880-22315
50 in stock

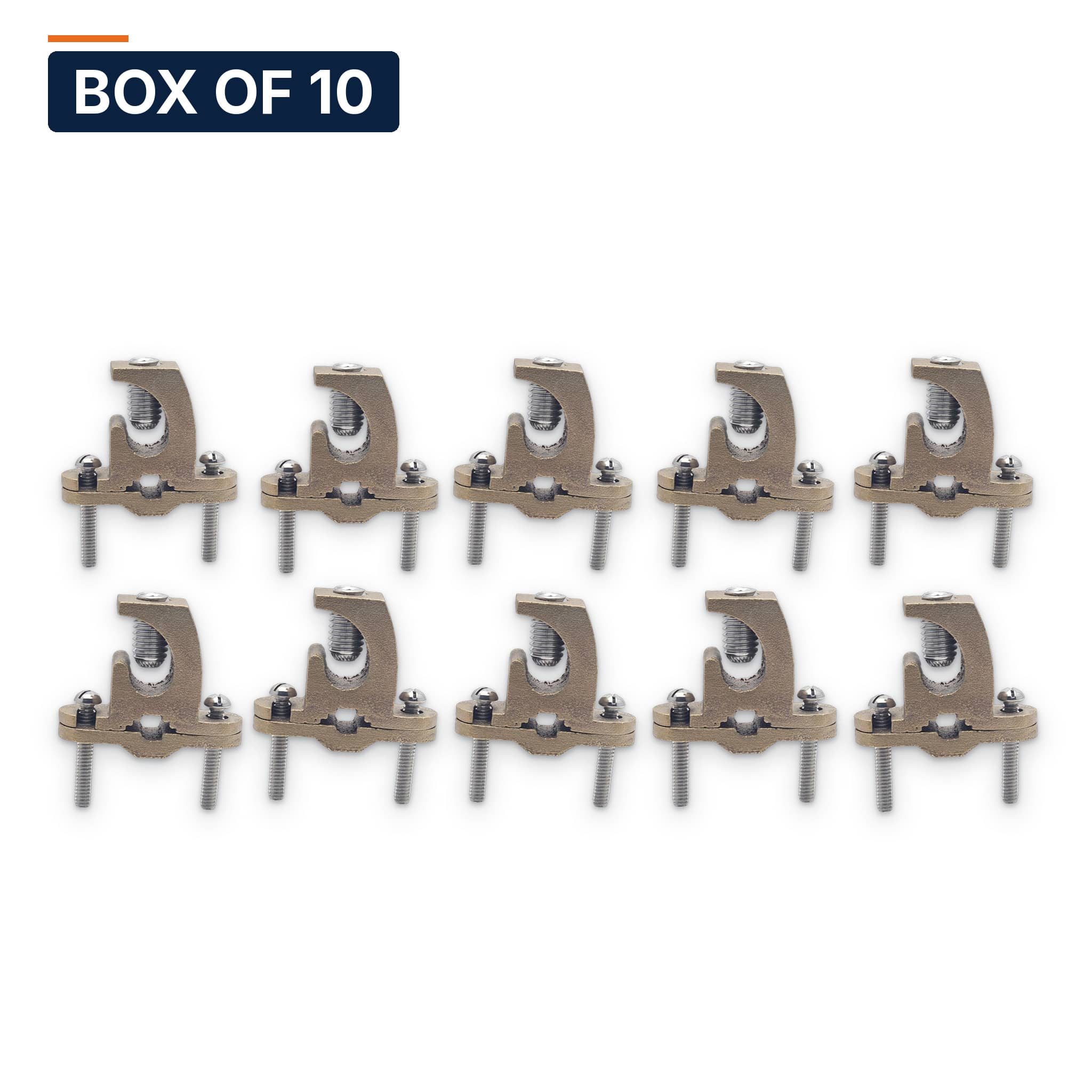

The Bronze Alloy Ground Clamp with Stainless Steel Screw is designed for secure and efficient direct burial applications. Suitable for connecting conductors ranging from 8 AWG to 4/0 AWG stranded to rods and pipes sized 2 to 2 1/4 inch. This clamp ensures a reliable grounding connection, enhancing safety and conductivity in electrical installations.
Specifications
Material:
- Body: Bronze Alloy
- Screw: Stainless Steel
Size:
- Length: 3 Inches
- Width: 2-1/4 Inches
Application: Direct Burial
Installation:
- (2) Screw Connector to Pipe
- (1) Screw Wire Connector
Conductor Size: 8 to 4/0 AWG Stranded
Rod Size: 1/2 to 1 Inch
IPS Size: 1/2 to 1 Inch
Uses and Cases
- Direct Burial Grounding: Ideal for direct burial applications, offering a reliable connection between large 8 AWG to 4/0 AWG copper or aluminum grounding conductors and ground rods in soil.
- Electrical Installations: Used in various electrical installations to establish a robust grounding system, ensuring safety and compliance with electrical codes.
- Rod Grounding: Suitable for connecting grounding conductors to ground rods with rod sizes ranging from 1/2 to 1 inch.
- Pipe Grounding: Utilized for connecting grounding conductors to pipes, enhancing the overall grounding system in electrical setups.
- Versatile Conductor Compatibility: Accommodates a range of conductor sizes, from 8 to 4/0 AWG stranded, providing flexibility in conductor choices.
- IP System Grounding: Used in grounding applications associated with 1/2 to 1 inch IPS (Iron Pipe Size) systems, providing versatility in installation scenarios.
Item Features
- Material: Body: Bronze Alloy, Screw: Silicon Bronze
- Size: Length: 3 Inches, Width: 2-1/4 Inches
- Application: Direct Burial
- Installation: (2) Screw Connector to Pipe, (1) Screw Wire Connector
- Conductor Size: 8 to 4/0 AWG Stranded
Get detailed information and drawings for our products. Click the links below to download the spec sheet and drawing in PDF format:
Download Spec Sheet Download DrawingCross-Reference: 880-22315
| Brand | Series / Part | Notes |
|---|---|---|
| Blackburn (ABB) | G-series clamp class* | match by rod/pipe size and conductor range |
| Burndy | GAR / GRC clamp class* | same UL 467 class |
| Bridgeport / Halex | acorn clamp class* | match by rod size |
*Cross by rod or pipe size and conductor range - UL 467 listed class. Bronze/brass construction. Trademarks belong to their owners.
NOTE: mechanical clamps are for accessible connections; buried or concrete-encased splices require irreversible compression or exothermic welding per NEC 250.64(C).
