Insulated Tap Connectors 1 port single-side Entry ( 1/0 Awg - 750 MCM )
Shipping calculated at checkout
SKU: 610-3002750
Out of stock
Open here

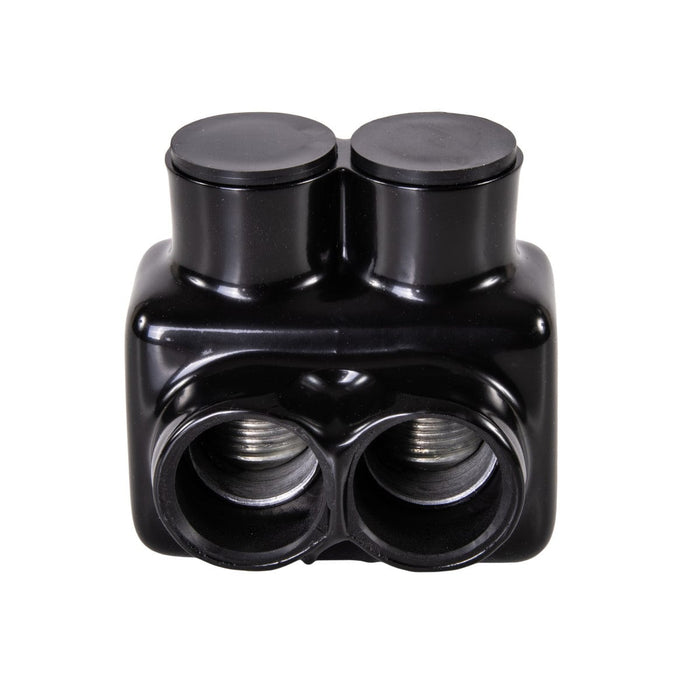

Conversions Tech Insulated Tap Connector — 1/0 AWG to 750 MCM, 6061-T6 Aluminum (UL Certified)
The Conversions Tech Insulated Tap Connector is a precision-machined, single-side-entry connector engineered for reliable splicing and distribution of heavy-gauge conductors. Manufactured from 6061-T6 aluminum and pre-insulated for safety, it supports both aluminum and copper wires from 1/0 AWG to 750 MCM, delivering consistent performance in residential, commercial, and industrial electrical systems.
Key Product Features
- 6061-T6 Aluminum Construction: Aerospace-grade aluminum alloy ensures high tensile strength, corrosion resistance, and secure terminations under heavy load.
- Single-Side Entry Design: Simplifies conductor insertion and installation while maintaining low contact resistance and consistent electrical continuity.
- Wide Wire Compatibility: Accommodates both copper and aluminum conductors from 1/0 AWG to 750 MCM (Class B or C stranding).
- Pre-Insulated Safety Jacket: Factory-molded dielectric coating provides protection against accidental contact and harsh environments.
- UL Certified: Tested to UL 486A/B standards under File E186991 for safe, code-compliant electrical terminations.
- Versatile Applications: Suitable for residential service equipment, commercial panels, HVAC, power distribution, and industrial control systems.
- Corrosion-Resistant Finish: Durable coating and oxide inhibitor compatibility extend connector life in outdoor or damp installations.
Technical Specifications
| Connector Type: | Insulated Tap Connector, 1-Port Single-Side Entry |
| Wire Size Range: | 1/0 AWG – 750 MCM (Copper or Aluminum) |
| Material: | 6061-T6 Aluminum Alloy (AL9CU Rated) |
| Voltage Rating: | 600 V Max |
| Temperature Rating: | 90 °C Continuous, −45 °C Cold Performance |
| Standards & Certifications: | UL 486A/B | cULus Listed | UL File E186991 |
| Insulation Type: | Black Plastisol (Dielectric, UV Resistant) |
| Conductor Compatibility: | Aluminum & Copper Conductors (Class B & C) |
| Body Finish: | Anodized Protective Coating with Pre-Fill Inhibitor Compatibility |
| Country of Origin: | USA |
Recommended Applications
- Residential service entrance and meter base connections
- Commercial and industrial panelboards and switchgear
- HVAC power distribution and control equipment
- Infrastructure and utility power systems
- Automotive and marine electrical assemblies
- Renewable-energy installations and load centers
- Machinery and equipment wiring across industries
Frequently Asked Questions (FAQs)
1. What is a single-side entry insulated tap connector?
It is a connector with all ports accessible from one side, simplifying installation in tight spaces while maintaining a secure, low-resistance electrical connection.
2. Why use 6061-T6 aluminum for the body?
6061-T6 offers exceptional mechanical strength, thermal stability, and corrosion resistance, making it ideal for high-amperage electrical applications.
3. Is this connector compatible with both copper and aluminum conductors?
Yes. It is dual-rated (AL9CU) for safe termination of either copper or aluminum conductors without bimetal adapters.
4. What UL certification applies to this product?
The connector is tested to UL 486A/B and listed under File No. E186991, verifying mechanical strength and electrical safety standards.
5. Can it be used for line-side connections?
Yes, its dielectric insulation and mechanical integrity make it suitable for line-side service taps when installed per NEC requirements.
6. Does it come pre-filled with oxide inhibitor?
Some models are compatible with pre-fill oxide inhibitors to enhance corrosion resistance and electrical stability over time.
7. What environments is it rated for?
Designed for indoor and outdoor use with UV-resistant plastisol insulation, operational from −45 °C to +90 °C.
8. Is additional insulation required after installation?
No. The factory-molded plastisol insulation provides full dielectric protection and requires no additional taping unless specified by local code.
9. Can this connector be used in marine or automotive systems?
Yes. Its corrosion-resistant aluminum body and dielectric insulation make it suitable for marine, automotive, and off-grid applications.
10. Where is the Conversions Tech Insulated Tap Connector manufactured?
All Conversions Tech connectors are engineered and tested in the United States to meet UL and cULus safety requirements.
