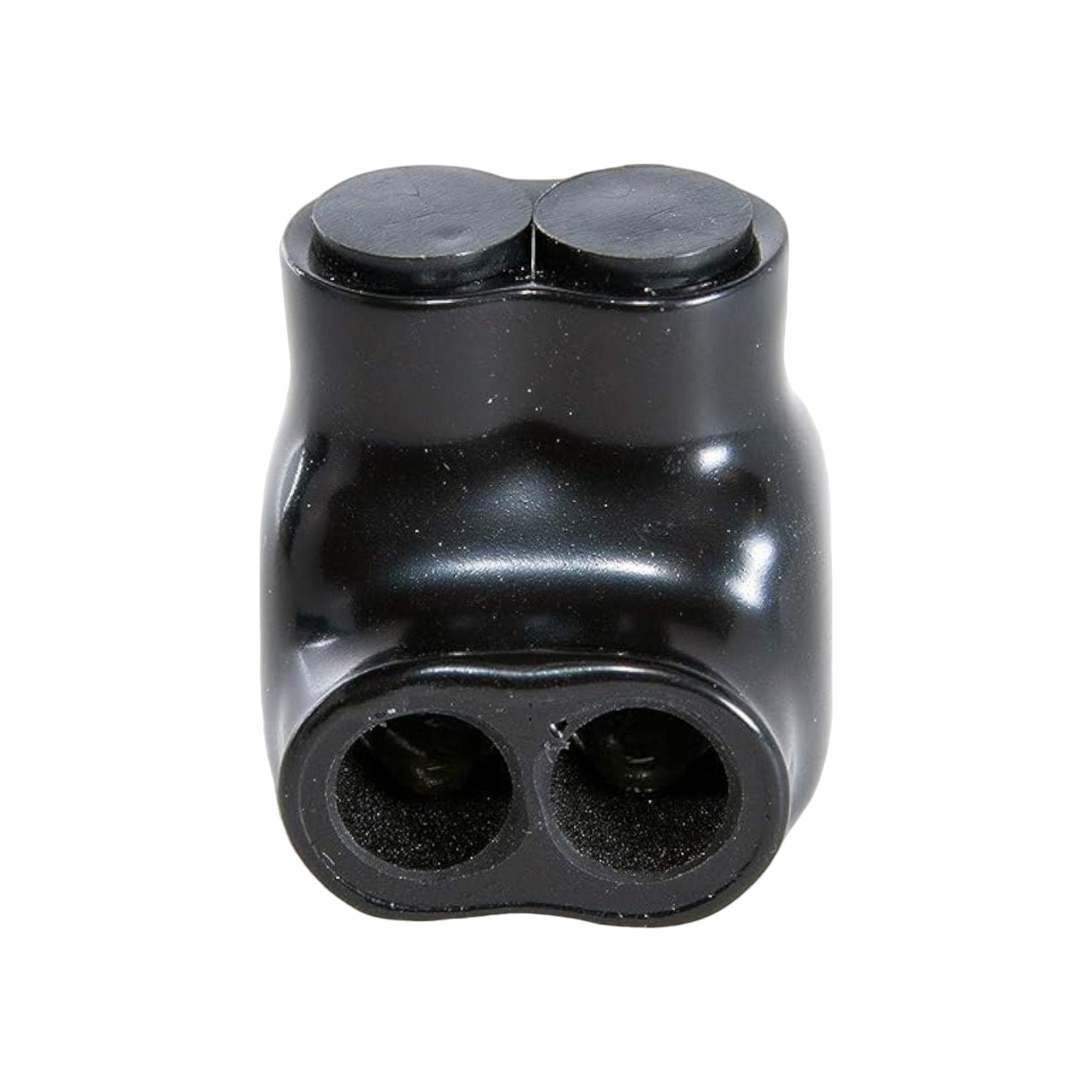

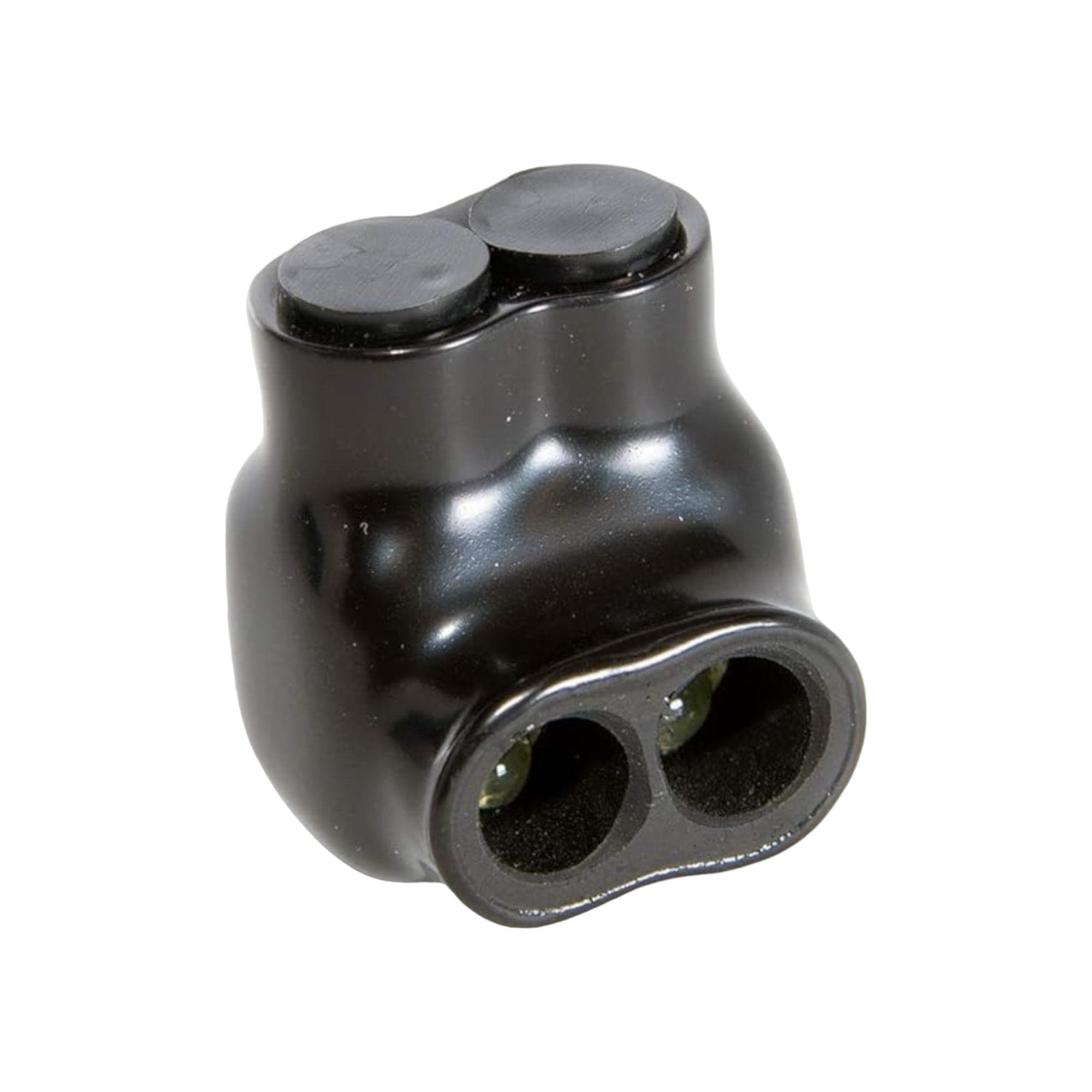

Insulated Tap Connectors 2 port single-side Entry 14 AWG - 4 AWG
Shipping calculated at checkout
SKU: 610-2002414
Out of stock
Open here
Insulated Tap connectors ensure secure connections between conductors with a rounded design and UV-resistant insulation. Features include:
Key Features
- Secure Connections: Utilizes adjustable set screws and rounded body for high-pressure, low-resistance connections.
- Single-Side Wire Entry: Quickly connects 2 conductors (4-14 AWG), compliant with NEC article 230.46.
- NEC 230.46 Compliance: Designed to meet NEC standards for line side service equipment connections.
- Ergonomic Design: Rounded body and smooth plastisol insulation for comfortable installation.

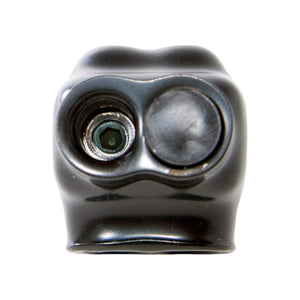

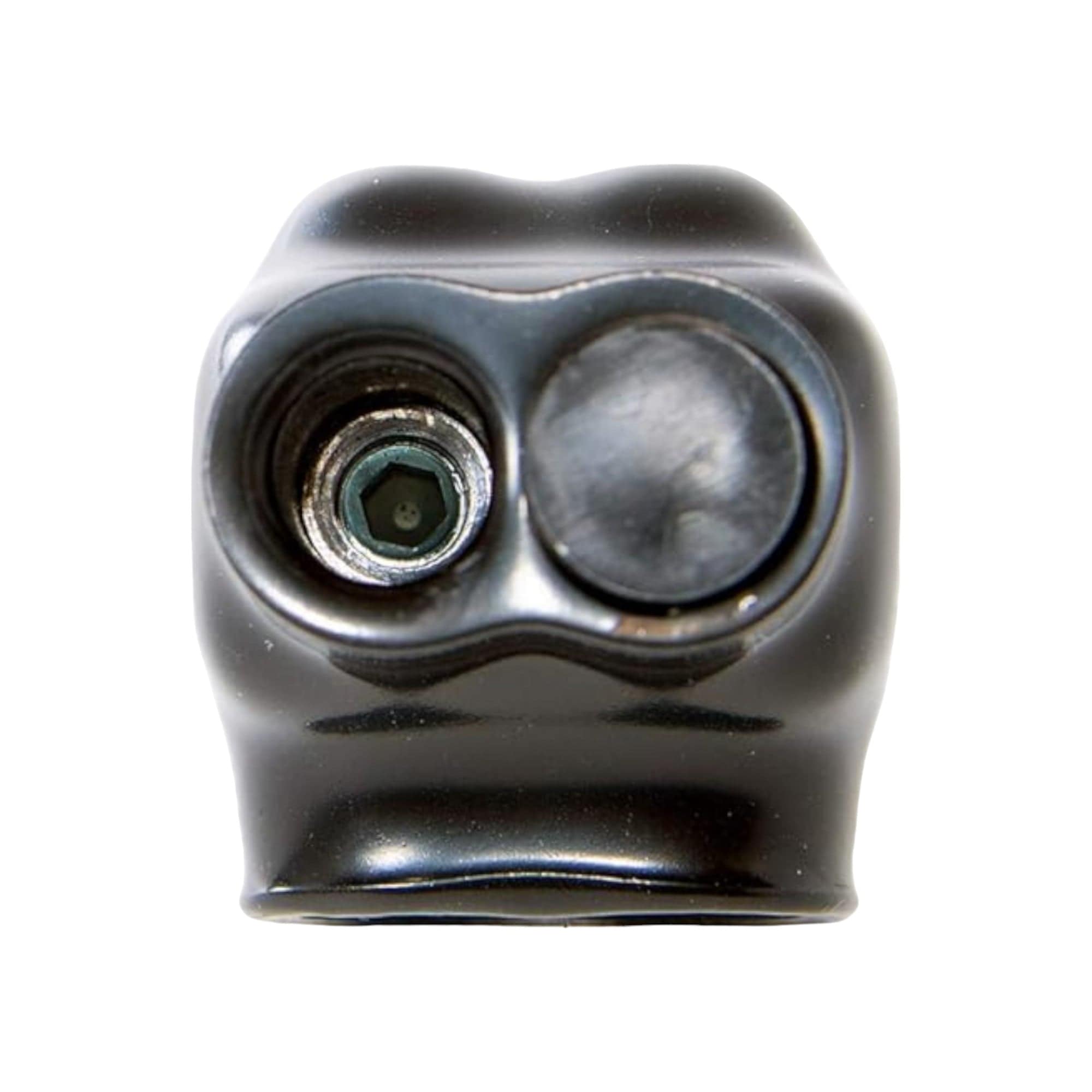

- Removable Plugs: Prevents debris and moisture with removable plugs on ports and set screws.
- Pre-Filled Oxide Inhibitor: Gel-filled ports inhibit corrosion, ensuring stable electrical resistance.
- Professional Performance: Durable plastisol insulation resists UV radiation, abrasion, and chemicals for reliable, extended service life.
Key Technical Specifications
Wire Gauge Range: 4 AWG to 14 AWG
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Single-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
Certifications: cULus, Meets NEC 230.46
UL Standard: UL 486A/B
Conductor Max Amps:
- Aluminum: 100 A
- Copper: 130 A
Temperature Rating: 90°C, AL9CU
Conductor Count: 2
Applications
- Residential electrical installations
- Commercial building wiring systems
- Industrial machinery and equipment electrical systems
- Power distribution networks
- HVAC systems
- Infrastructure and utility projects
- Electrical systems in automotive and marine environments
- Machinery and equipment wiring across various industries
Explore our insulated tap connectors for reliable, compliant electrical connections in various applications.
