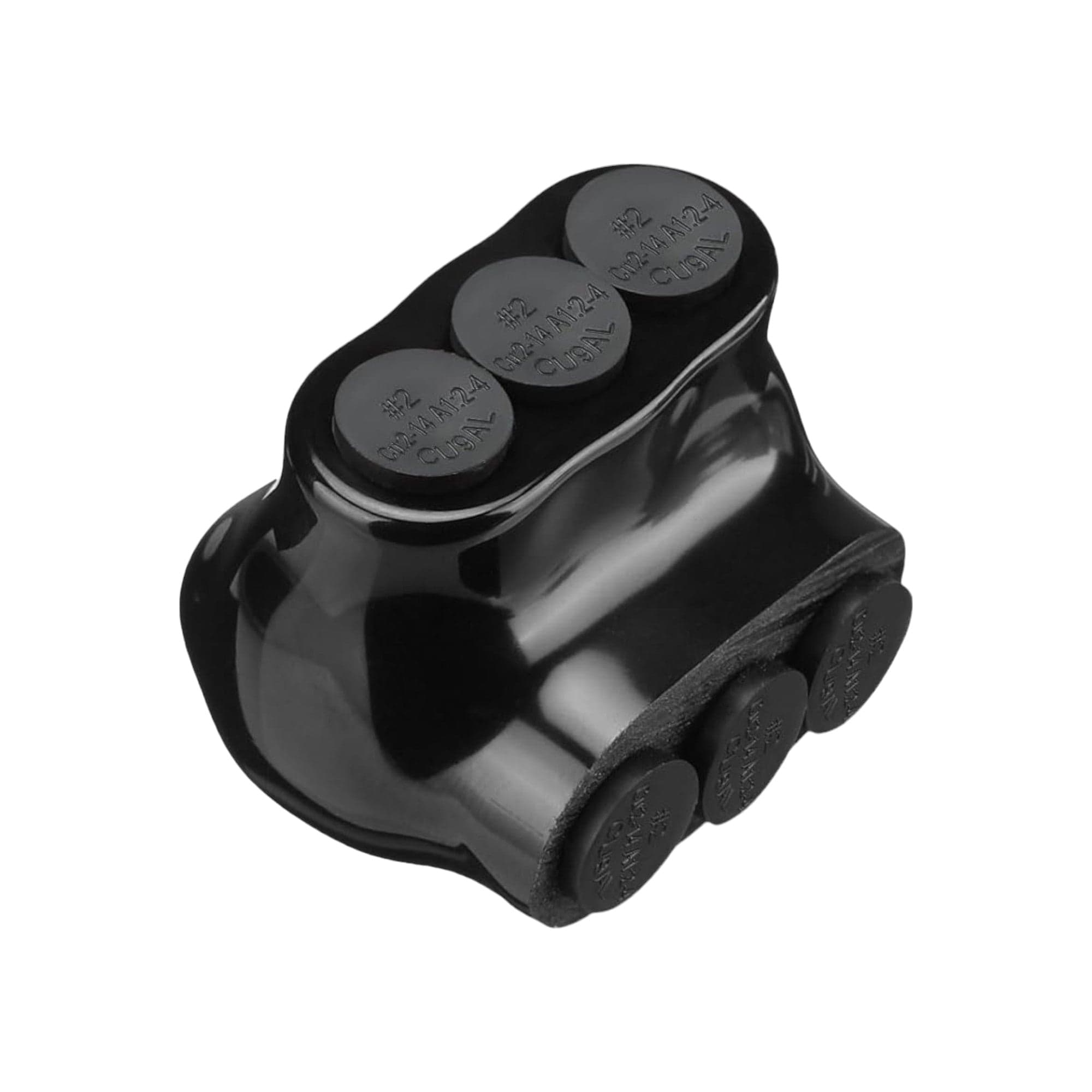

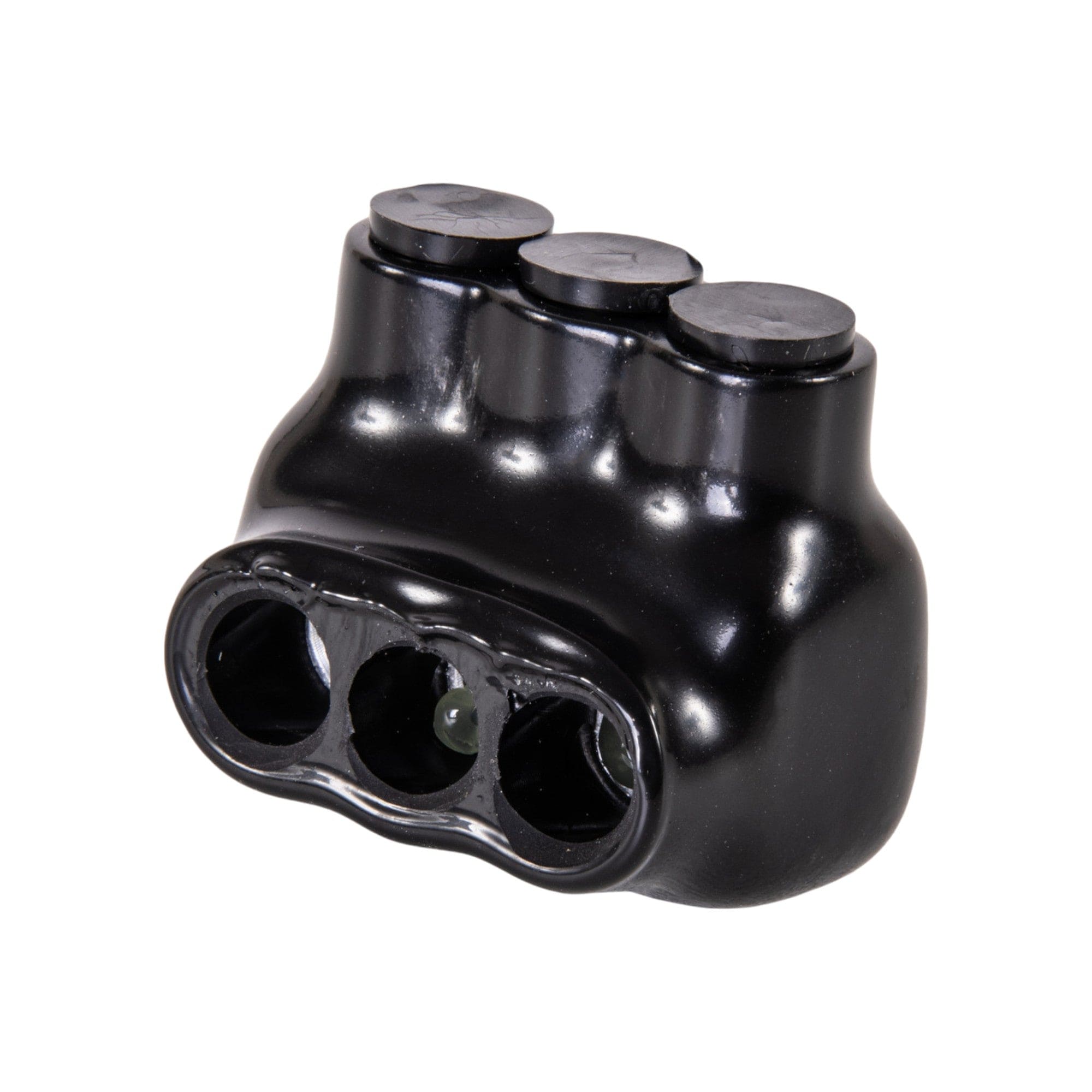

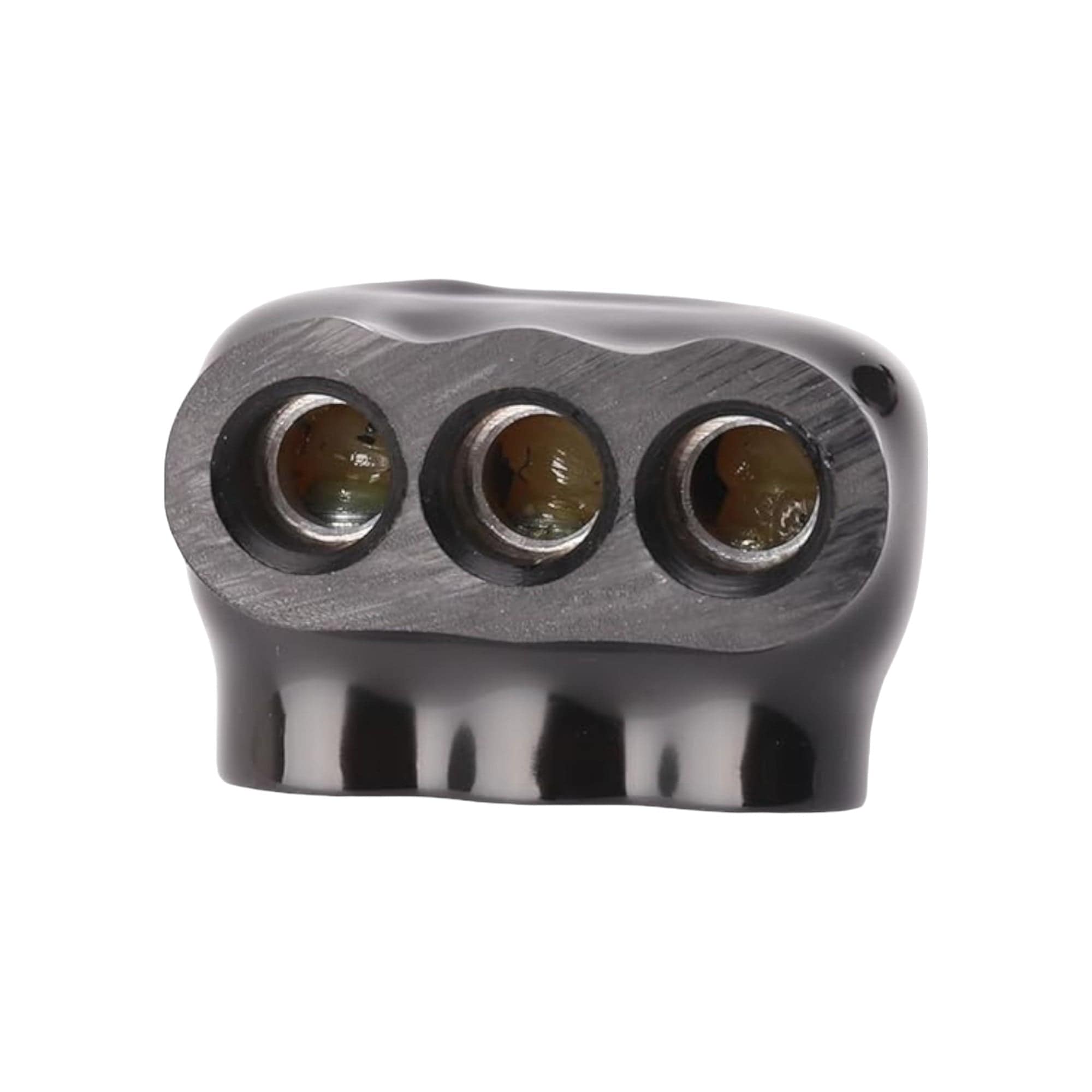

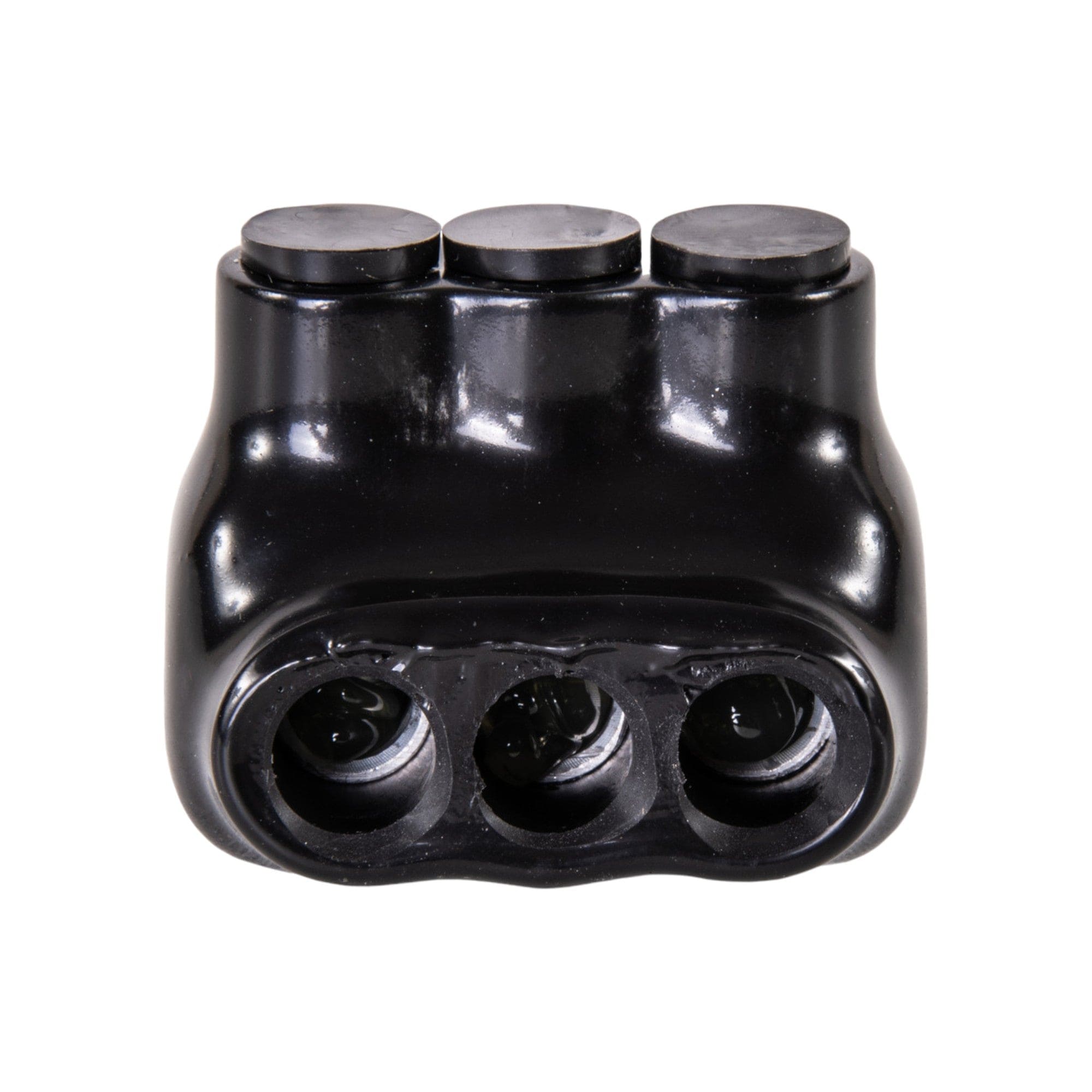

Insulated Tap Connectors 3 port single-side Entry 14 AWG - 2 AWG
Shipping calculated at checkout
SKU: 610-2003214
Out of stock
Open here
Insulated Tap connectors form secure connections between conductors with a rounded design and UV-resistant insulation. Key features include:
Key Features
- Secure Connections: Utilizes adjustable set screws and rounded body for high-pressure, low-resistance connections.
- Single-Side Wire Entry: Quickly connects 3 conductors (2-14 AWG), compliant with NEC article 230.46.
- NEC 230.46 Compliance: Meets NEC requirements for line side connections on service equipment.
- Ergonomic Design: Rounded body and smooth plastisol insulation for comfortable gripping during installation.
- Removable Plugs: Each port and set screw includes a removable plug to prevent debris and moisture ingress.
- Pre-Filled Oxide Inhibitor: Gel-filled ports inhibit corrosion, ensuring stable electrical resistance over time.
- Professional Performance: Durable plastisol insulation resists UV radiation, abrasion, and chemicals for reliability.
Key Technical Specifications
Wire Gauge Range: 2 AWG to 14 AWG
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Single-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
