Insulated Tap Connectors 3 port single-side Entry 14 AWG - 4 AWG
Shipping calculated at checkout
SKU: 610-3003414
194 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

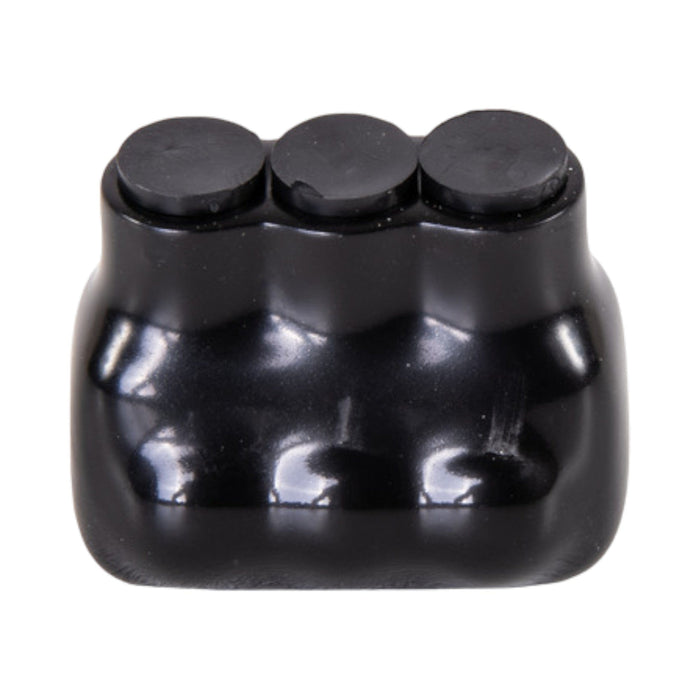

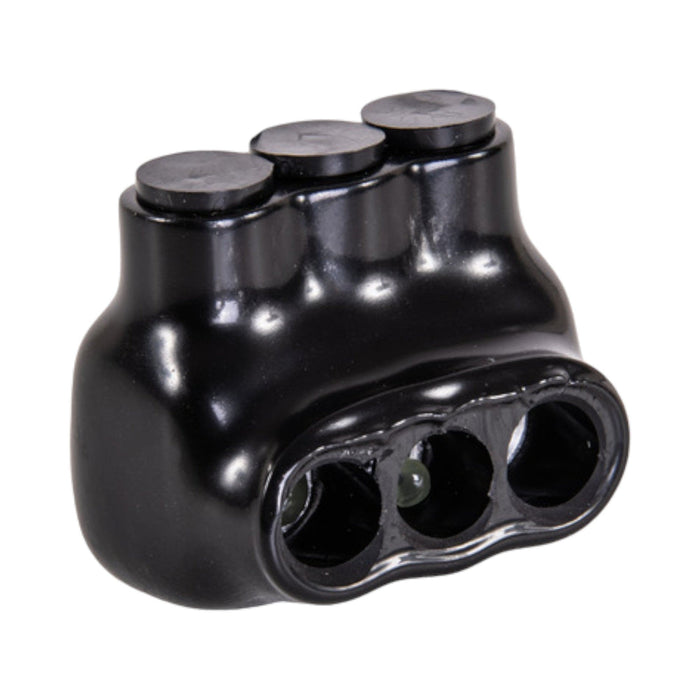

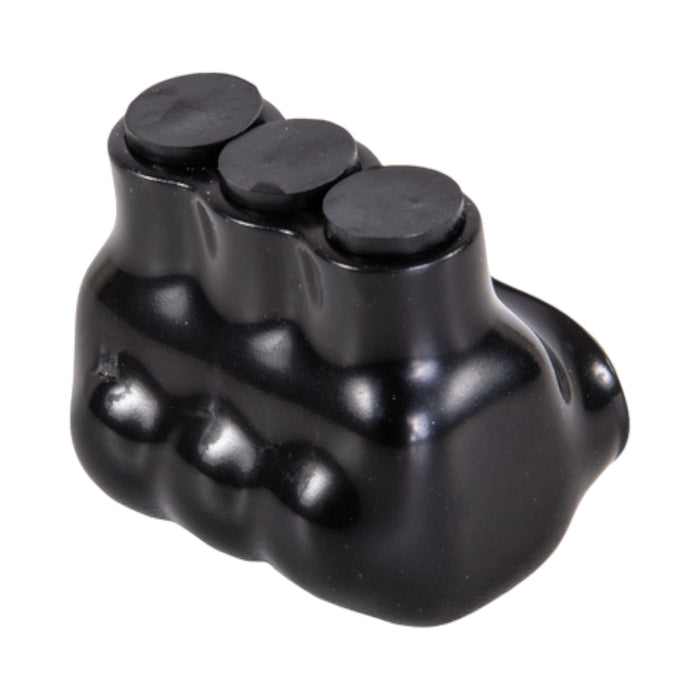

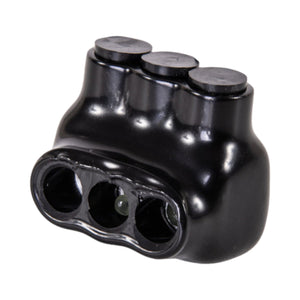

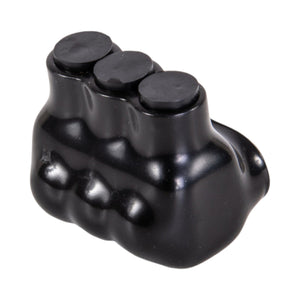

Insulated Tap Connectors – 3-Port Single-Side Entry (14 AWG to 4 AWG)
Conversions Tech Insulated Tap Connectors deliver rock-solid, code-compliant power distribution in residential, commercial, and industrial environments. Each connector features a 3-port, single-side entry design that makes line-side service equipment wiring fast, clean, and NEC 230.46–compliant. A UV-resistant plastisol shell, pre-filled oxide inhibitor, and high-strength set screws guarantee low-resistance, corrosion-free performance for years.
Why Install Our Insulated Tap Connectors?
- Secure, Low-Resistance Connections — precision set screws clamp conductors tightly for minimal voltage drop.
- Single-Side Entry Efficiency — land up to three conductors without flipping or twisting the block.
- NEC 230.46 & UL 486A/B Certified — fully approved for line-side service equipment conductors.
- Ergonomic, Rounded Body — smooth plastisol coating protects hands and conductors during install.
- Debris-Proof Plugs — removable caps seal ports and set-screw channels against dust and moisture.
- Pre-Filled Oxide Inhibitor — factory-applied gel stops galvanic corrosion and keeps resistance stable.
- UV-Resistant Plastisol — stands up to abrasion, chemicals, and outdoor exposure.
Key Technical Specs
- Wire Range: 14 AWG – 4 AWG (Al + Cu)
- Connector Material: Tin-plated Aluminum, plastisol-insulated
- Voltage Rating: 600 V
- Max Ampacity: 100 A (Al), 130 A (Cu)
- Temperature Rating: 90 °C, AL9CU
- Standards & Listings: cULus Listed, NEC 230.46, UL 486A/B
Top Installation Use-Cases
- Residential load centers & sub-panels
- Commercial building feeder taps
- Industrial machinery power drops
- HVAC disconnects & service switches
- Utility & infrastructure power grids
- Marine and specialty vehicle electrical systems
Get the Details
Ready to spec the perfect tap connector for your next job? Grab the full datasheet and CAD drawing below:
