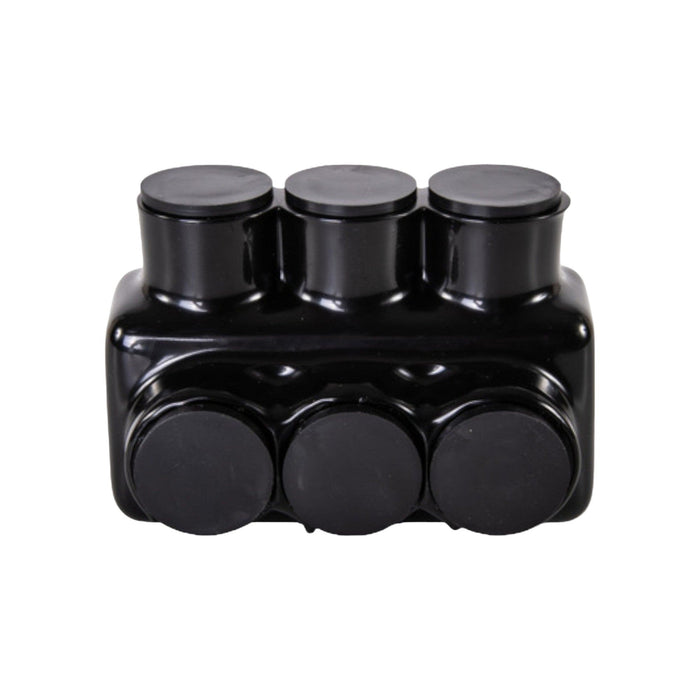

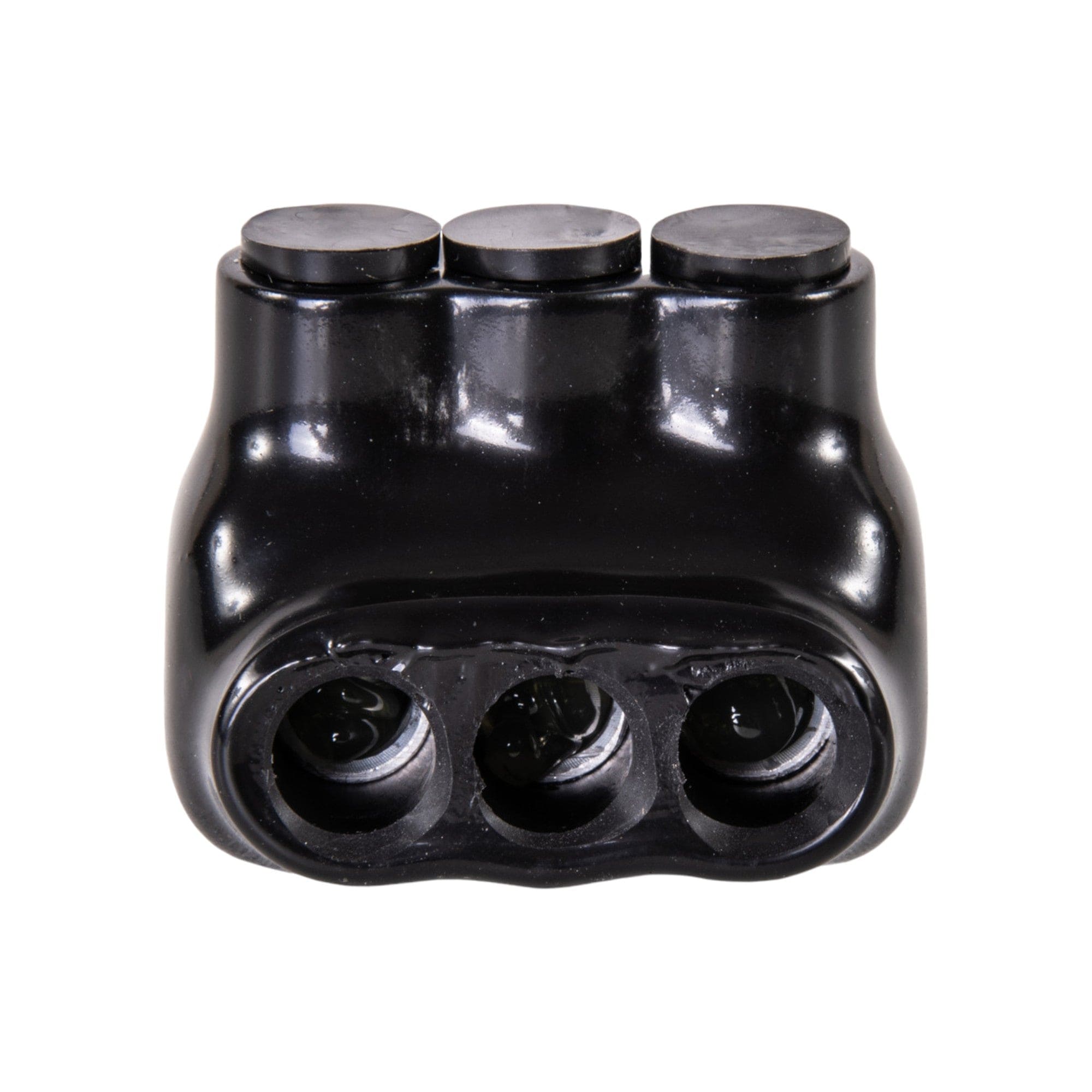

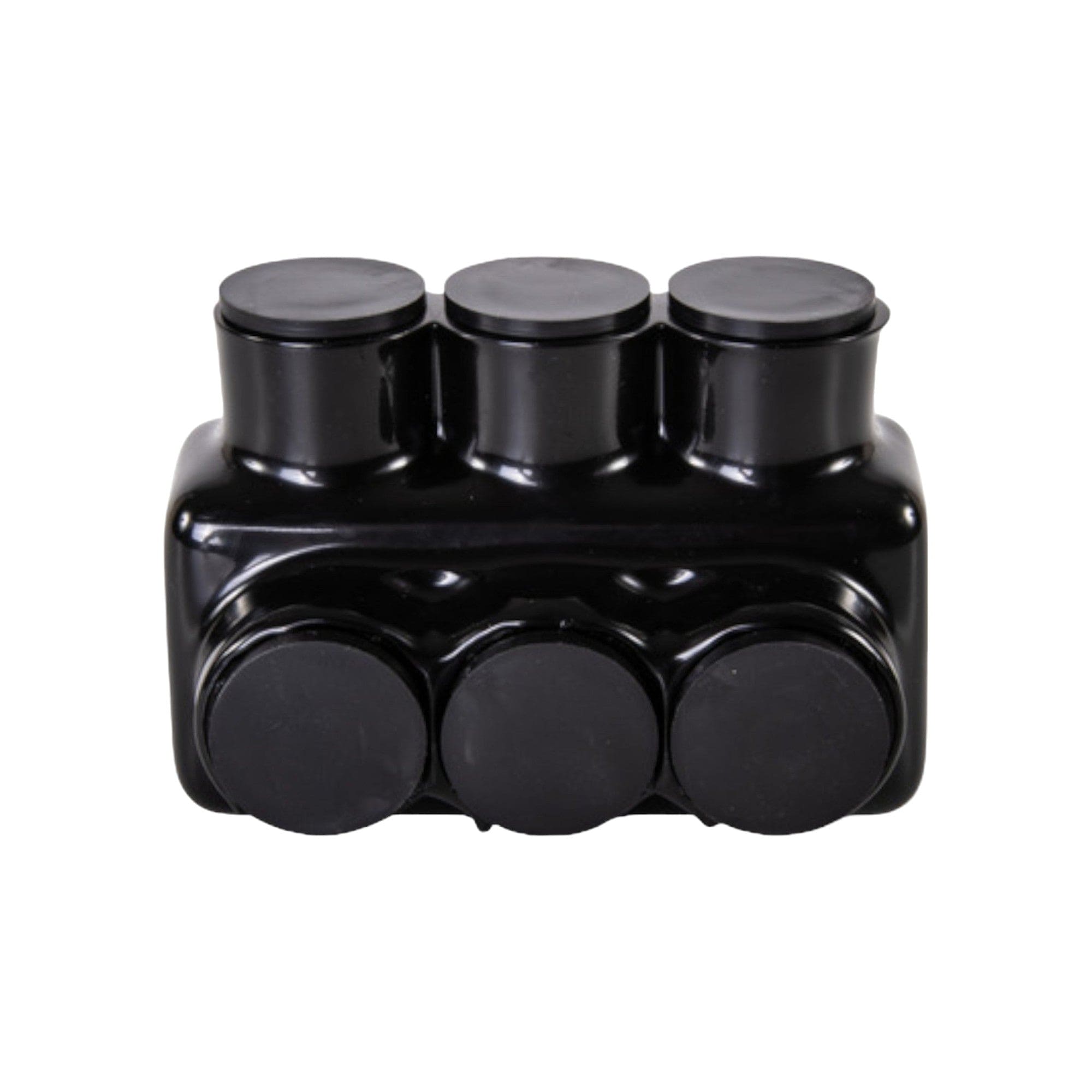

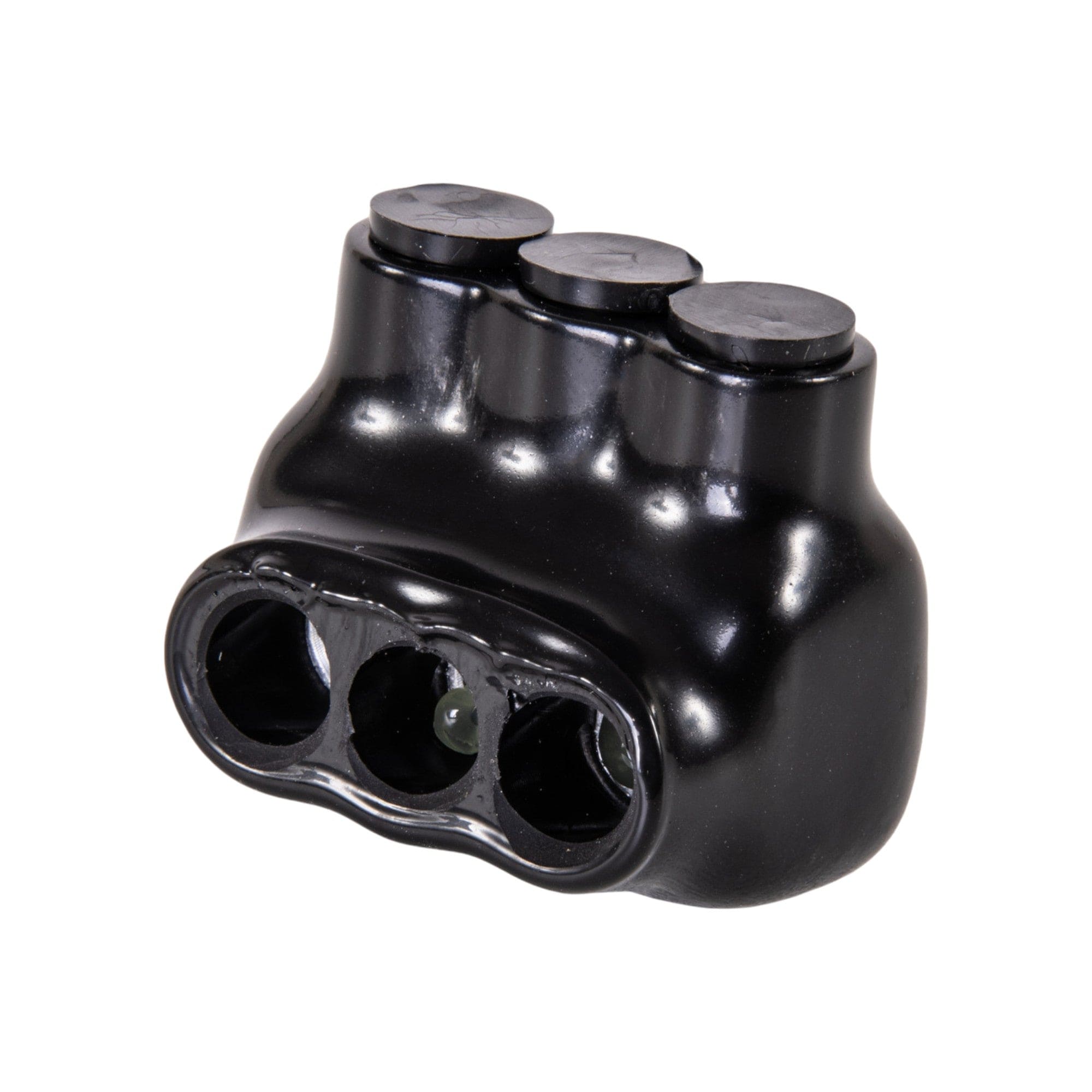

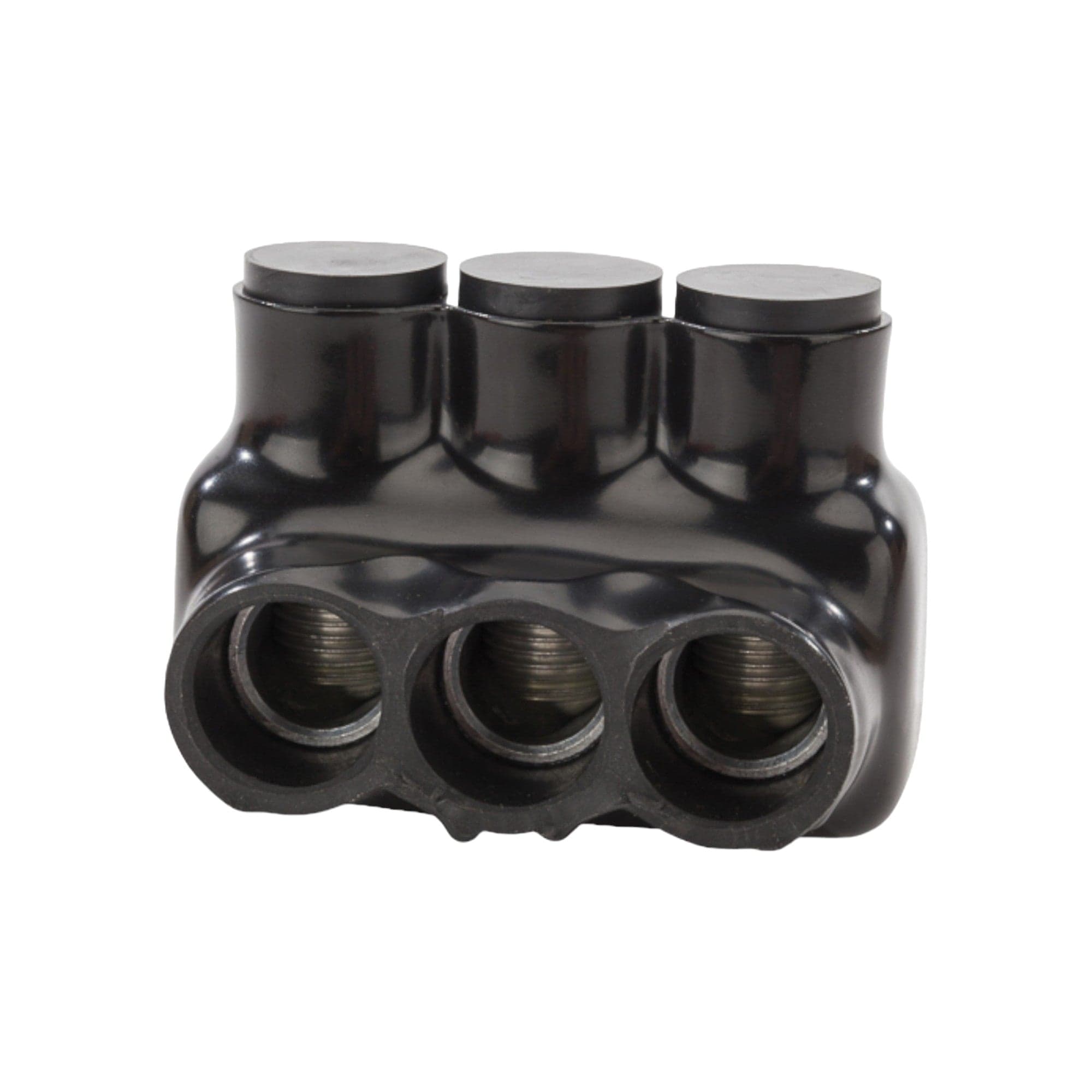

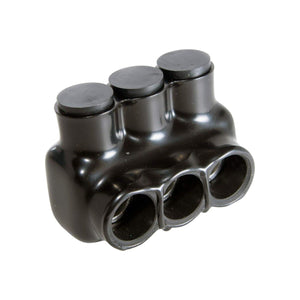

Insulated Tap Connectors 3 port single-side Entry 6 AWG - 2 AWG
Shipping calculated at checkout
SKU: 610-2003026
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connectors by Conversions Tech - Reliable Electrical Solutions
Explore Conversions Tech's Insulated Tap Connectors, designed for secure and efficient connections between multiple conductors. With a rounded design and UV-resistant insulation, these connectors deliver top-tier performance for various electrical applications.
Key Features of Conversions Tech Insulated Tap Connectors
- Secure Connections: Adjustable set screws and a rounded body ensure reliable, low-resistance electrical connections.
- Single-Side Wire Entry: Quickly connects 3 conductors (2-6 AWG), perfect for NEC 230.46-compliant installations.
- NEC 230.46 Compliance: Meets National Electrical Code standards for line side connections in service equipment.
- Ergonomic Design: Rounded body with smooth plastisol insulation for easy, comfortable installation.
- Removable Plugs: Includes plugs to protect ports from debris and moisture.
- Pre-Filled Oxide Inhibitor: Gel-filled ports prevent corrosion and maintain stable performance.
- Professional Performance: UV-resistant plastisol insulation ensures durability in diverse environments.
Technical Specifications - Conversions Tech Insulated Tap Connectors
Wire Gauge Range: 2 AWG to 6 AWG
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Single-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
журналCertifications: cULus, Meets NEC 230.46
UL Standard: UL 486A/B, UL File No: E186991
Wire Cable Class: Class B, Class C
Conductor Max Amps: Aluminum: 100 A, Copper: 130 A
Conductor Size Range: Aluminum: 2 AWG to 6 AWG
Conductor Type: Copper, Aluminum
Temperature Rating: 90°C, AL9CU
Conductor Count: 3
Environmental Temperature: Cold Temperature rated to -45°C
Applications for Conversions Tech Insulated Tap Connectors
- Residential electrical installations
- Commercial building wiring systems
- Industrial electrical installations
- HVAC systems
- Infrastructure projects
- Automotive environments
- Marine environments
- Power distribution networks
- Various industrial equipment wiring
Download our detailed specification sheet and drawing for more information:
Download Specification Sheet
