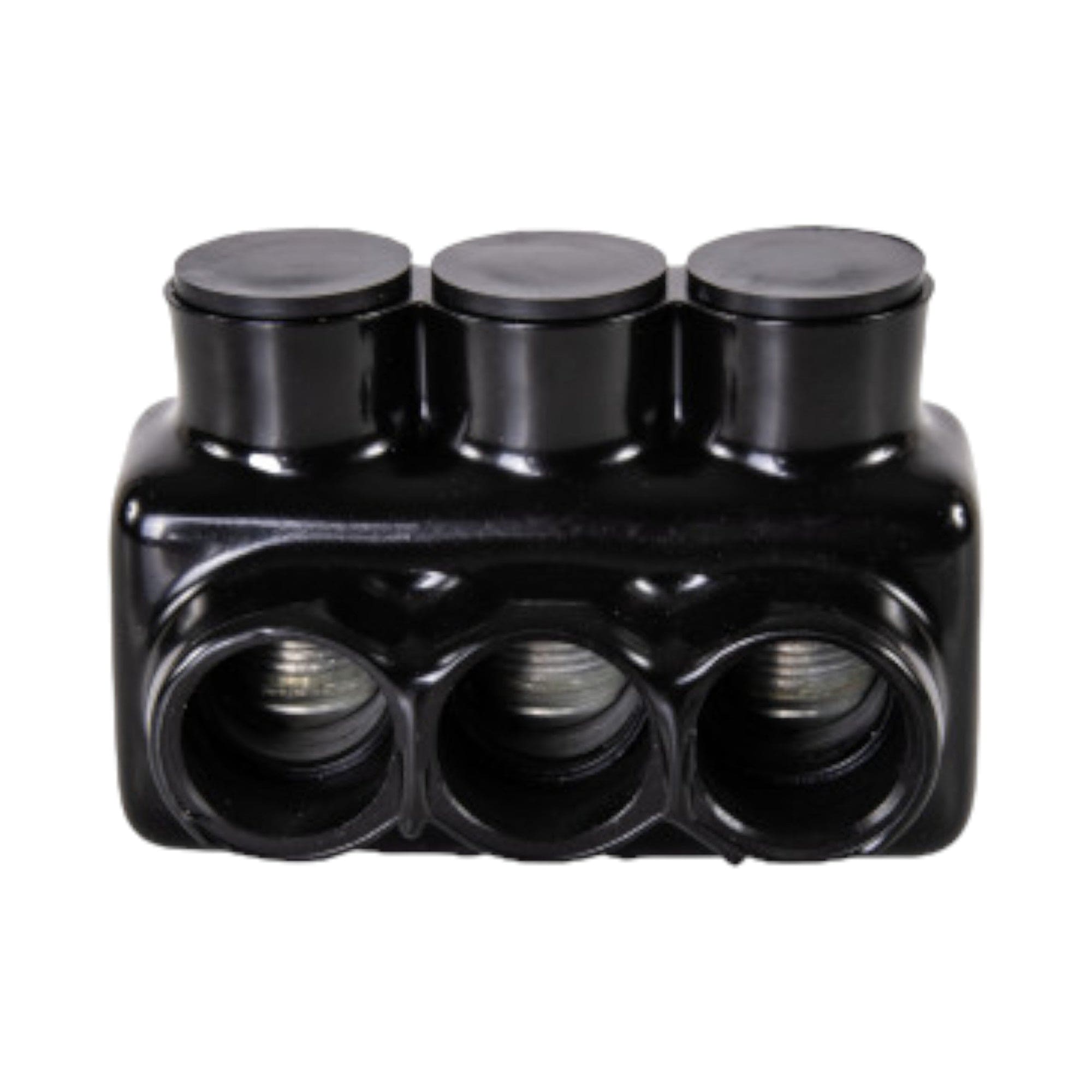

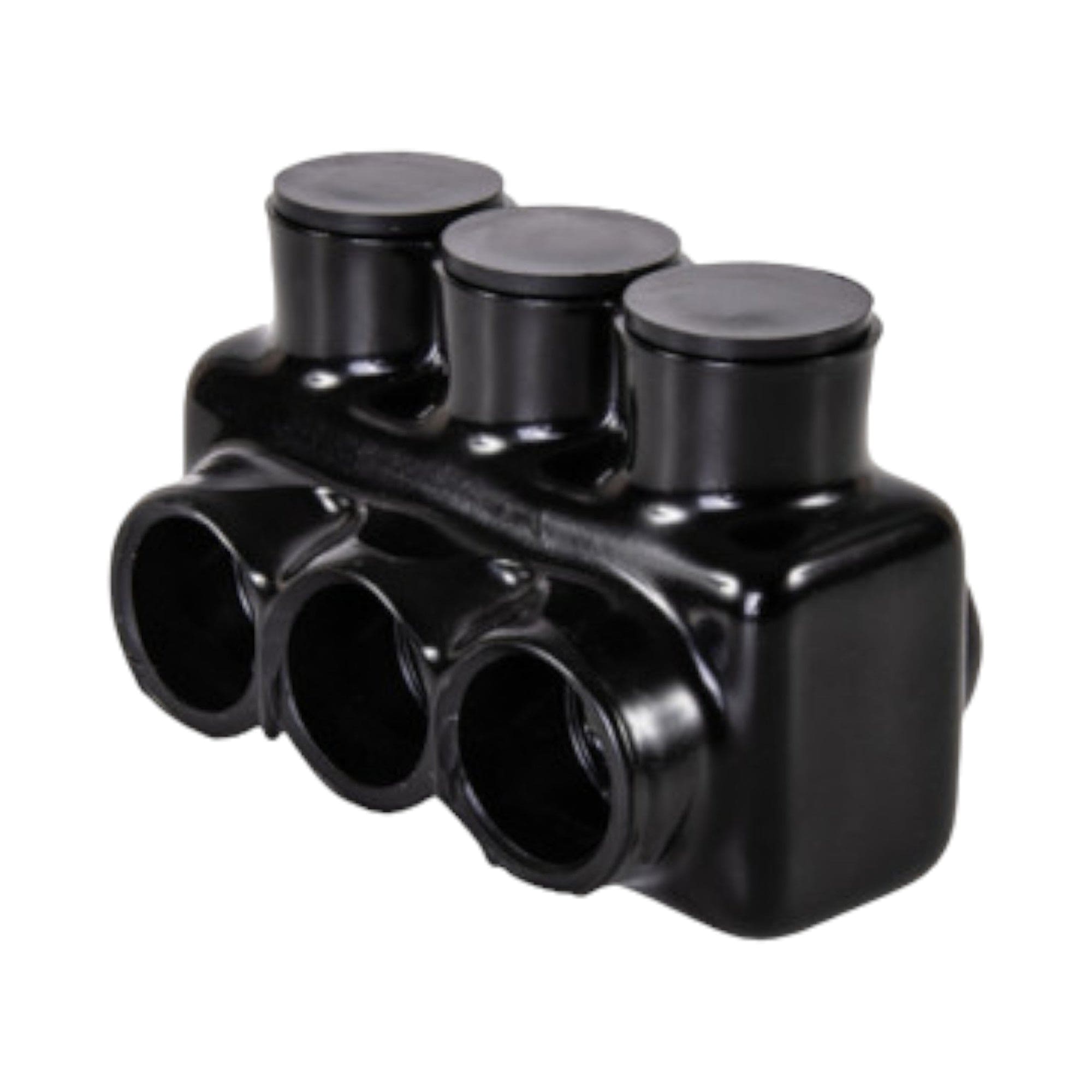

Insulated Tap Connectors 3 port single-side Entry 6 AWG - 3/0 AWG
Shipping calculated at checkout
SKU: 610-2003036
Out of stock
Open here
Insulated Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. These connectors offer several key advantages:
Key Features
- Secure Connections: Utilizes adjustable set screws and a rounded body design for high-pressure connections with minimal electrical resistance.
- One-Side Wire Entry: Enables quick and secure connections for 3 conductors (3/0 AWG - 6 AWG), compliant with NEC article 230.46 for service equipment line side connections.
- NEC 230.46 Compliance: Meets National Electrical Code requirements, suitable for line side connections on service equipment.
- Ergonomic Design: Features a rounded body and smooth plastisol insulation finish for comfortable gripping during installation.

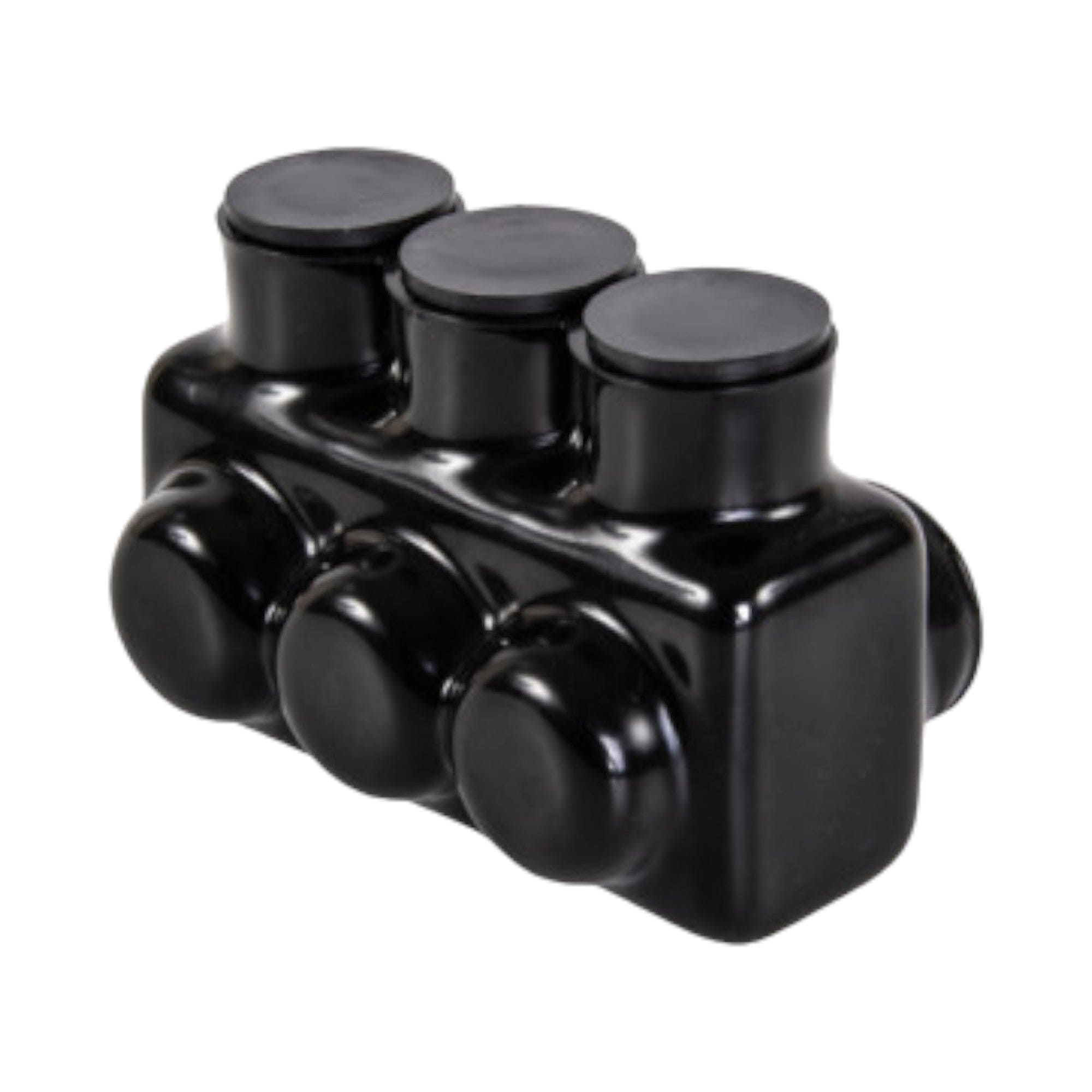

- Removable Plugs: Equipped with removable plugs to prevent debris, moisture, and contaminants from entering during wire insertion.
- Pre-Filled Oxide Inhibitor: Includes oxide inhibitor gel in entry ports to prevent corrosion, ensuring stable electrical resistance over time.
- Professional Performance: Durable plastisol insulation coating provides superior resistance to UV radiation, abrasion, and chemicals, ensuring reliable performance and extended service life.
Key Technical Specifications
Wire Gauge Range: 3/0 AWG to 6 AWG
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Single-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
Certifications: cULus, Meets NEC 230.46
UL Standard: UL 486A/B
UL File No: E186991
Wire Cable Class: Class B, Class C
Conductor Max Amps: Aluminum: 100 A, Copper: 130 A
Conductor Size Range: Aluminum: 3/0 AWG to 6 AWG
Conductor Type: Copper, Aluminum
Temperature Rating: 90°C, AL9CU
Conductor Count: 3
Environmental Temperature: Cold Temperature rated to -45°C
Dimensions:
Weight: 0.293 LB, Weight BX (LB): 1.905
Width: 1.965 IN, Width BX (IN): 6.1875
Width (mm): 49.911
Applications
- Power distribution systems
- Service equipment connections (line side)
- Control panels
- Industrial and commercial electrical installations
- Residential electrical installations
- Commercial building wiring systems
- Industrial machinery and equipment electrical systems
- HVAC systems
- Infrastructure and utility projects
- Electrical systems in automotive and marine environments
- Machinery and equipment wiring across various industries
Explore the versatility and reliability of our insulated tap connectors for your electrical needs.
