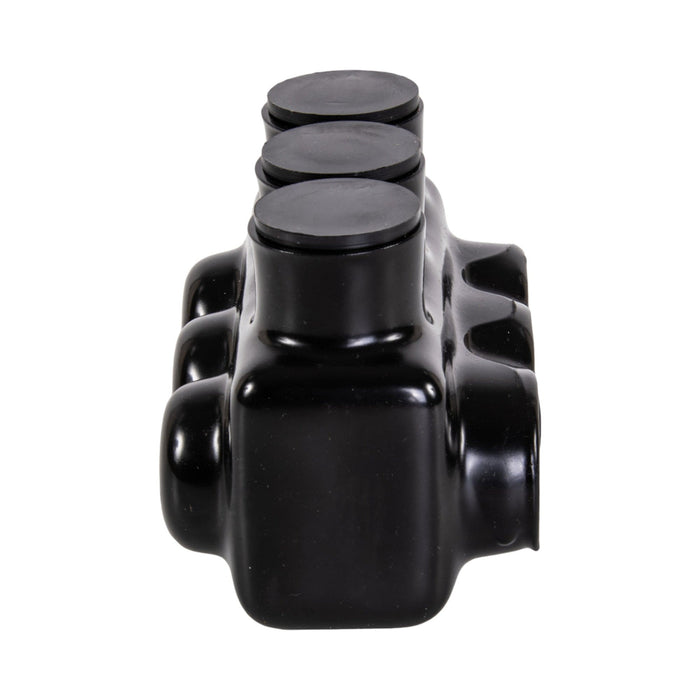

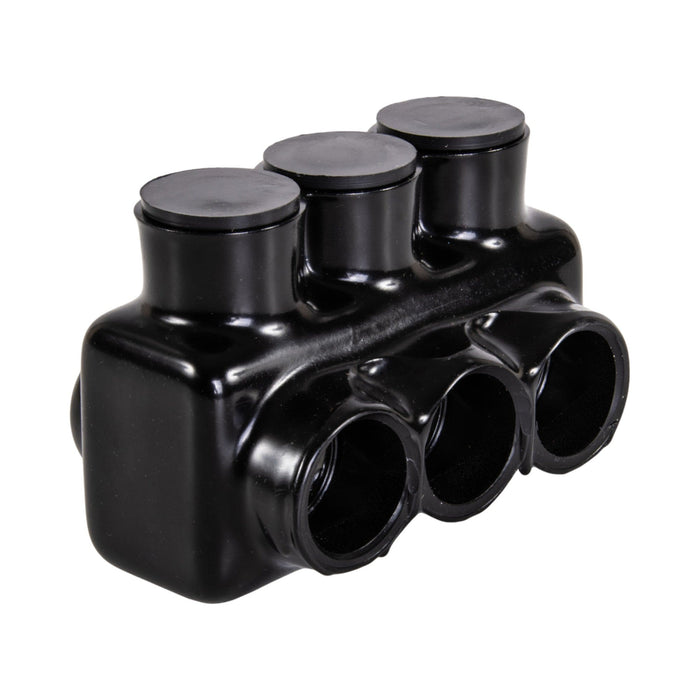

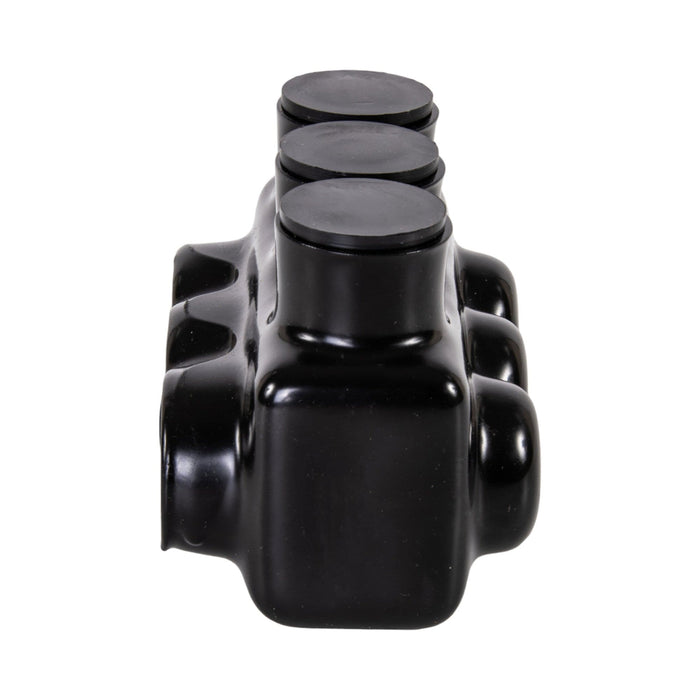

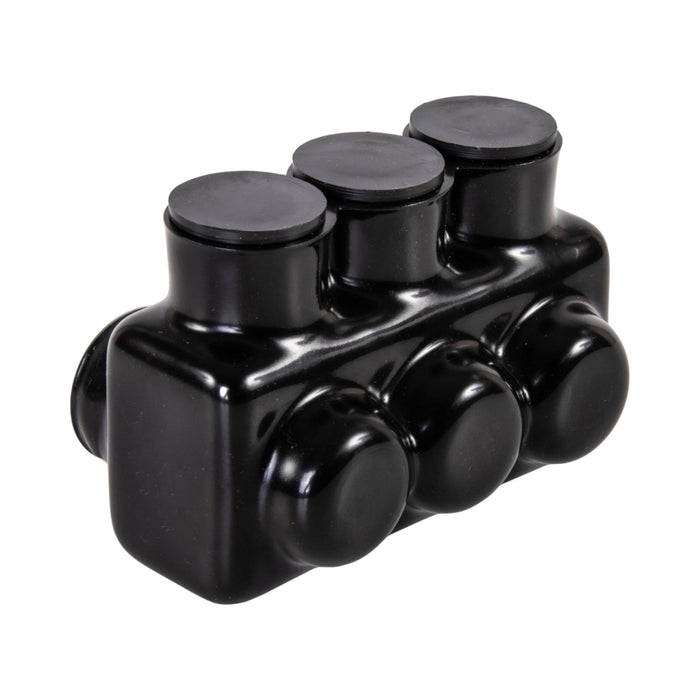

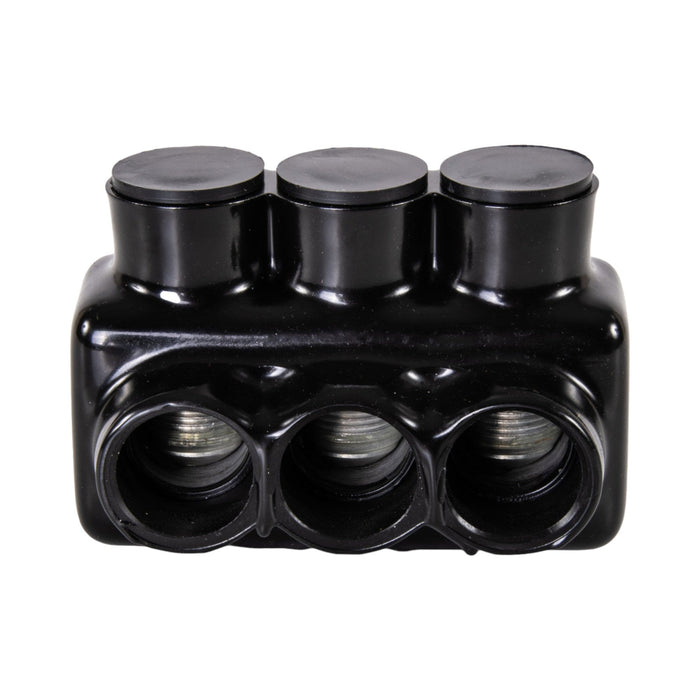

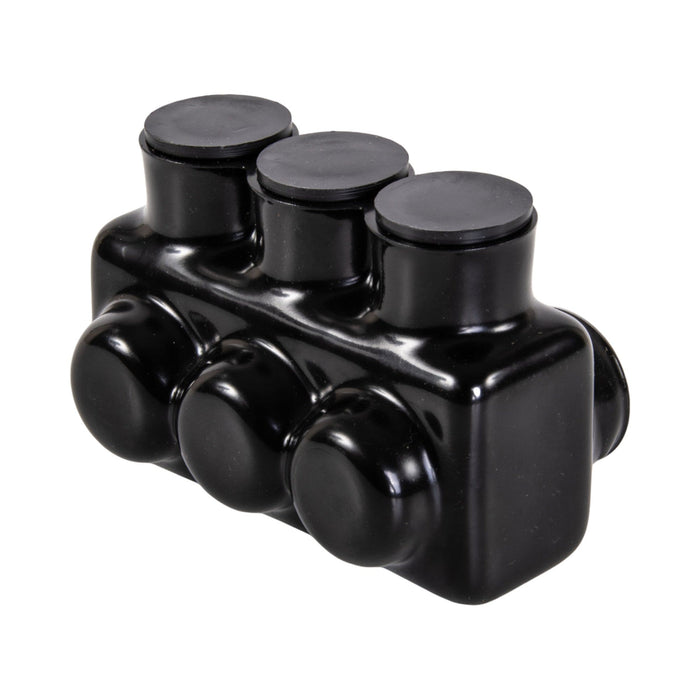

Insulated Tap Connectors 3 port single-side Entry 6 AWG - 350 MCM
Shipping calculated at checkout
SKU: 610-2003350
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. These connectors offer several key advantages:
Key Features
- Secure Connections: Utilizes adjustable set screws and rounded body design for high-pressure, low-resistance connections.
- One-Side Wire Entry: Quickly connects 3 conductors with single-side entry ports suitable for wires from 6 AWG to 350 MCM, compliant with NEC article 230.46.
- NEC 230.46 Compliance: Meets National Electrical Code (NEC) Article 230.46 for line side connections on service equipment.
- Ergonomic Design: Rounded body and smooth plastisol insulation ensure comfortable gripping during installation.
- Removable Plugs: Equipped with removable plugs to prevent debris and moisture during wire insertion.
- Pre-Filled Oxide Inhibitor: Ports pre-filled with oxide inhibitor gel to prevent corrosion and ensure stable electrical resistance.
- Professional Performance: Durable plastisol insulation provides superior UV, abrasion, and chemical resistance for extended service life.
Technical Specifications
Wire Gauge Range: 6 AWG to 350 MCM
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Single-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
Certifications: cULus, Meets NEC 230.46
UL Standard: UL 486A/B
Applications
- Residential electrical installations
- Commercial building wiring systems
- Industrial machinery and equipment
- Power distribution networks
- HVAC systems
- Infrastructure projects
- Automotive environments
- Marine environments
- Various machinery and equipment wiring applications
Download our detailed specification sheet and drawing for more information:
Download Specification Sheet Download Drawing
