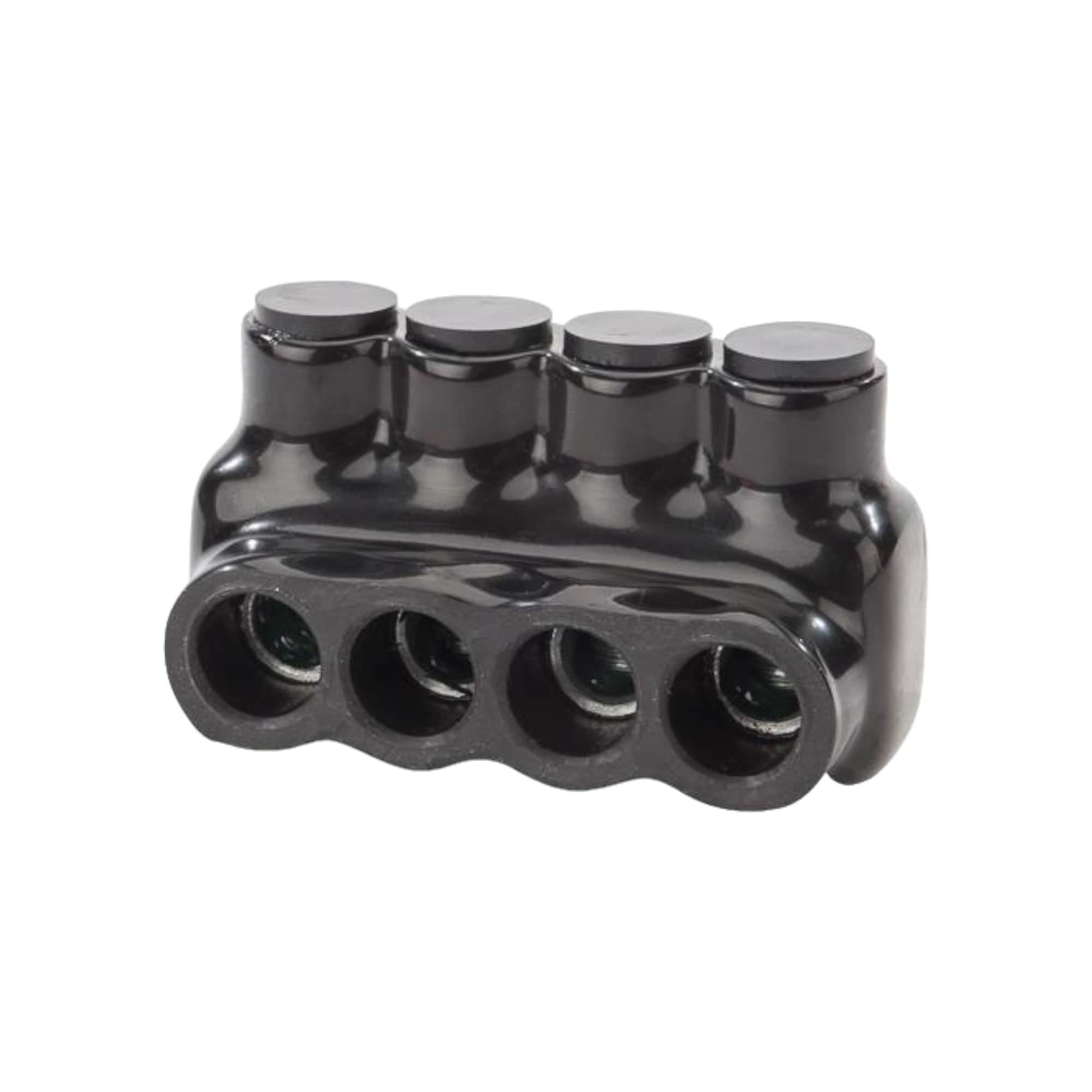

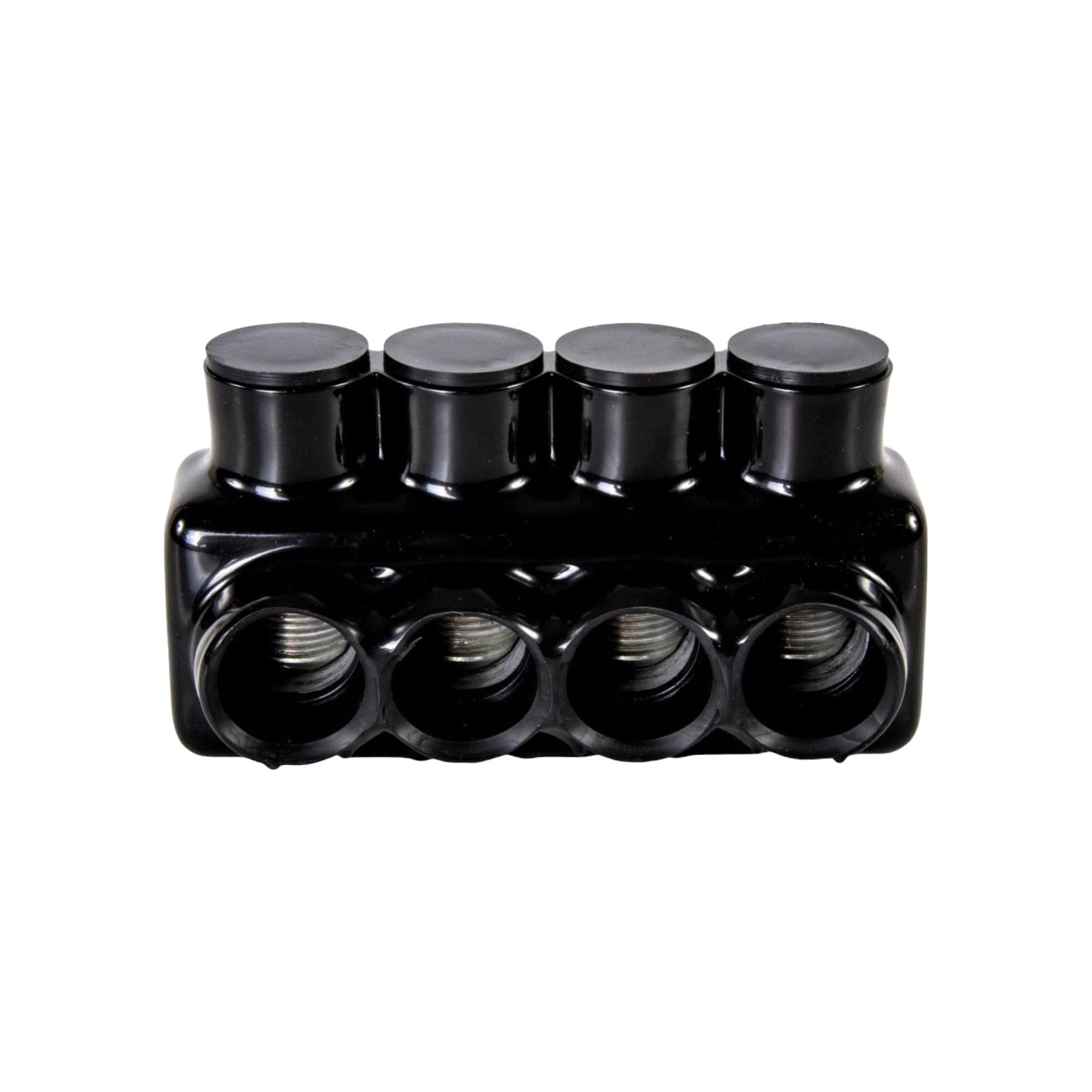

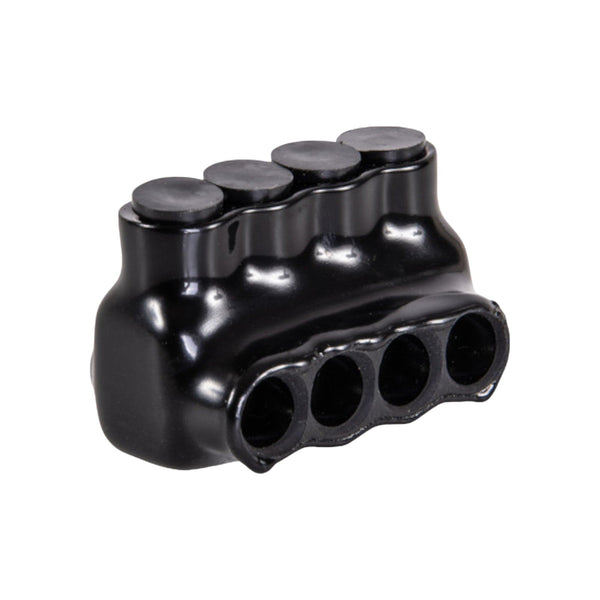

Insulated Tap Connectors 4 port single-side Entry 6 AWG - 2 AWG
Shipping calculated at checkout
SKU: 610-2004026
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connectors ensure secure connections between multiple conductors, featuring a rounded design and UV-resistant insulation coating for enhanced durability and performance.
Key Features
- Secure Connections: Utilizes adjustable set screws and rounded body design for high-pressure connections with minimal electrical resistance.
- One-Side Wire Entry: Enables quick and secure connections for 4 conductors (2-6 AWG), compliant with NEC article 230.46 for service equipment line side connections.
- NEC 230.46 Compliance: Meets National Electrical Code requirements, suitable for line side connections on service equipment.
- Ergonomic Design: Features a rounded body and smooth plastisol insulation for comfortable installation and secure handling.
- Removable Plugs: Equipped with removable plugs to prevent debris, moisture, and contaminants from entering during wire insertion.
- Pre-Filled Oxide Inhibitor: Includes oxide inhibitor gel in entry ports to prevent corrosion, ensuring stable electrical performance over time.
- Professional Performance: Durable plastisol insulation provides superior resistance to UV radiation, abrasion, and chemicals, ensuring reliable operation in diverse environmental conditions.
Key Technical Specifications
Wire Gauge Range: 2 AWG to 6 AWG
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Single-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
Certifications: cULus, Meets NEC 230.46
UL Standard: UL 486A/B, UL File No: E186991
Wire Cable Class: Class B, Class C
Conductor Max Amps: Aluminum: 100 A, Copper: 130 A
Conductor Size Range: Aluminum: 2 AWG to 6 AWG
Conductor Type: Copper, Aluminum
Temperature Rating: 90°C, AL9CU
Conductor Count: 4
Environmental Temperature: Cold Temperature rated to -45°C
Applications
- Residential electrical installations
- Commercial building wiring systems
- Industrial machinery and equipment electrical systems
- Power distribution networks
- HVAC systems
- Infrastructure and utility projects
- Electrical systems in automotive and marine environments
- Machinery and equipment wiring across various industries
Download our detailed specification sheet for more information:
Download Specification Sheet
