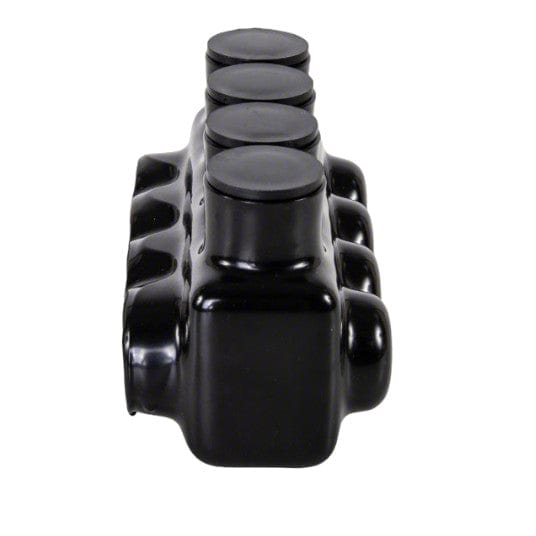

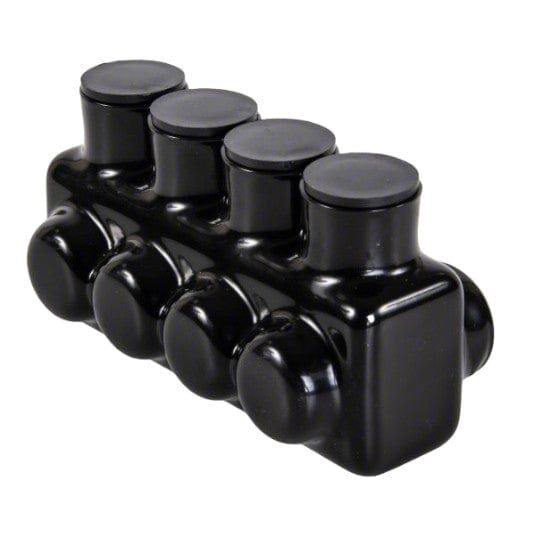

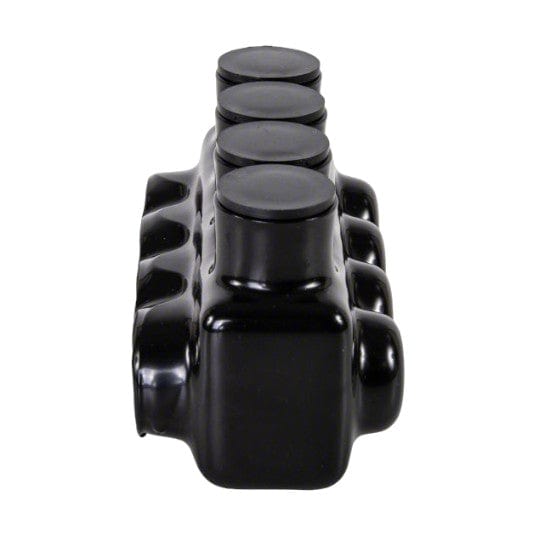

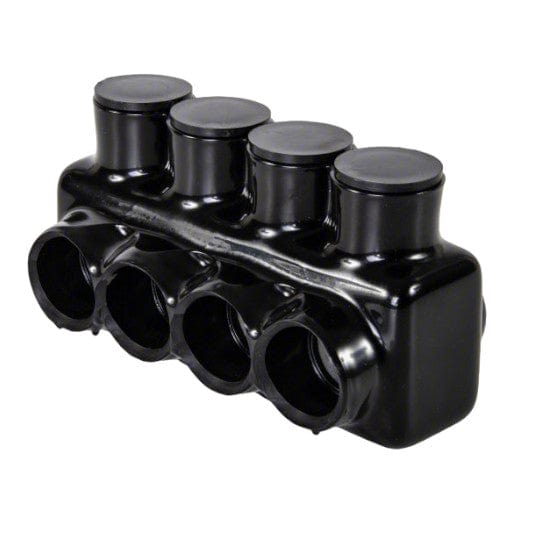

Insulated Tap Connectors 4 port single-side Entry 4 AWG - 600 MCM

Sale price $28.80

Shipping calculated at checkout

SKU: 610-2004600

1000 in stock

🖨️ Print Spec Sheet

Shop with confidence

  • Fast shipping
  • Easy exchanges
  • Trusted reviews
  • Eco materials
  • Price guarantee
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Venmo
  • Visa

Insulated Tap Connectors by Conversions Tech - Premium Electrical Solutions

Discover Conversions Tech's Insulated Tap Connectors - engineered for secure, reliable connections between multiple conductors. Featuring a rounded design and UV-resistant insulation, these connectors are perfect for various electrical applications. Explore the superior quality and performance that sets Conversions Tech apart.

Key Advantages of Conversions Tech Insulated Tap Connectors

  • Secure Electrical Connections: Advanced adjustable set screws and rounded body design ensure reliable, long-lasting connections with minimal resistance.
  • Efficient One-Side Wire Entry: Quickly connect 4 conductors (4 AWG to 600 MCM) using single-side entry ports, compliant with NEC 230.46 for line side connections.
  • NEC 230.46 Compliant: Meets National Electrical Code Article 230.46 standards, ideal for service equipment line side connections.
  • Ergonomic Installation: Rounded body with smooth UV-resistant plastisol insulation for comfortable handling during setup.
  • Contaminant Protection: Removable plugs on ports and set screws prevent debris, moisture, and contaminants.
  • Corrosion Resistance: Pre-filled oxide inhibitor gel in entry ports ensures low resistance and prevents corrosion.
  • Professional-Grade Durability: UV-resistant plastisol insulation withstands abrasion, chemicals, and harsh conditions for extended service life.

Technical Specifications - Conversions Tech Insulated Tap Connectors

Wire Gauge Range: 4 AWG to 600 MCM

Connection Type: Set Screw

Insulation Material: UV-resistant Plastisol

Voltage Rating: 600 V

Material: Aluminum

Finish: Plastisol Insulated (UV resistant)

Color: Black

UPC: 810166615433

Origin Country: US

Certifications: cULus, Meets NEC 230.46

UL Standard: UL 486A/B

UL File No: E186991

Wire Cable Class: Class B, Class C

Temperature Rating: 90C, AL9CU

Conductor Max Amps:

  • Aluminum: 100 A
  • Copper: 130 A

Conductor Size Range: 4 AWG - 600 MCM

Conductor Type: Copper, Aluminum

Environmental Temperature: Cold Temperature rated to -45C

Conductor Count: 4

Dimensions:

  • Height: 3.034 IN
  • Length: 5.343 IN
  • Weight: 1.05 LB
  • Box Height: 2.75 IN
  • Box Weight: 3.3969 LB
  • Box Width: 6 IN
  • Wire Binding Screw Size: 13/16
  • Wire Binding Torque: 375

Applications for Conversions Tech Insulated Tap Connectors

  • Residential electrical installations
  • Commercial building wiring systems
  • Industrial machinery and equipment electrical systems
  • Power distribution networks
  • HVAC systems
  • Infrastructure and utility projects
  • Electrical systems in automotive and marine environments
  • Machinery and equipment wiring across various industries
