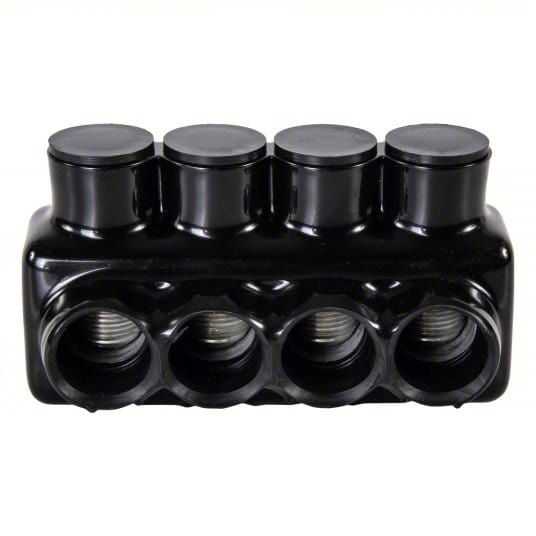

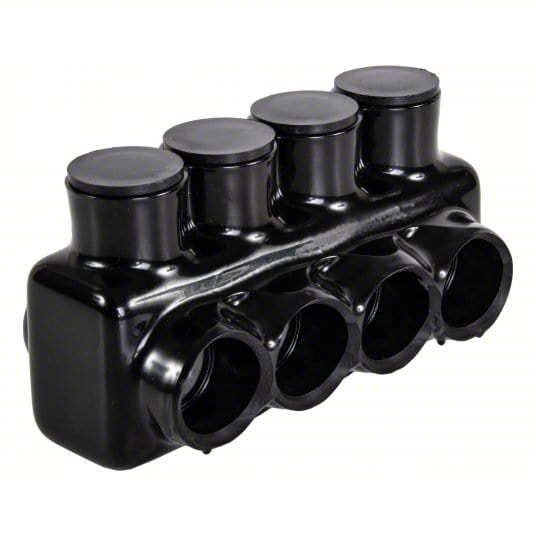

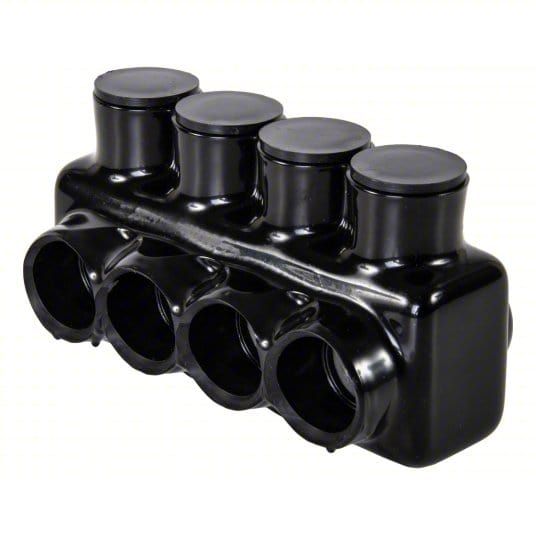

Insulated Tap Connectors 4 port single-side Entry 6 AWG - 350 MCM
Shipping calculated at checkout
SKU: 610-2004350
Out of stock
Open here
Insulated Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. These connectors offer several key advantages:
Key Features
- Secure Connections: Utilizes adjustable set screws and rounded body design for high-pressure, low-resistance connections.
- One-Side Wire Entry: Quickly connects 4 conductors with single-side entry ports suitable for wires from 6 AWG to 350 MCM. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
- NEC 230.46 Compliance: Meets National Electrical Code (NEC) Article 230.46 for line side connections on service equipment.
- Ergonomic Design: Rounded body and smooth plastisol insulation ensure comfortable gripping during installation.
- Removable Plugs: Equipped with removable plugs to prevent debris and moisture during wire insertion.
- Pre-Filled Oxide Inhibitor: Ports pre-filled with oxide inhibitor gel to prevent corrosion and ensure stable electrical resistance.
- Professional Performance: Durable plastisol insulation provides superior UV, abrasion, and chemical resistance for extended service life.
Technical Specifications
Wire Gauge Range: 6 AWG to 350 MCM
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Single-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
Color: Black
UPC: 810166614559
Origin Country: US
Certifications: cULus, Meets NEC 230.46 Suitable for Line Side of Service
UL Standard: UL 486A/B
UL File No: E186991
Wire Cable Class: Class B, Class C
Conductor Max Amps: Aluminum: 100 A, Copper: 130 A
Conductor Size Range: Aluminum: 6 AWG - 350 MCM
Conductor Type: Copper, Aluminum
Temperature Rating: 90°C, AL9CU
Conductor Count: 4
Environmental Temperature: Cold Temperature rated to -45°C
Bolt and Screw Sizes:
- Number of Wire Binding Screws per Port: 1
- Wire Binding Screw Size: 11/16
- Wire Binding Torque: 275
Dimensions:
- Height (IN): 2.432
- Height BX (IN): 3.75
- Length (IN): 4.842
- Weight (LB): 0.77
- Weight BX (LB): 2.505
- Width (IN): 2.163
- Width BX (IN): 6
Applications
- Residential electrical installations
- Commercial building wiring systems
- Industrial machinery and equipment electrical systems
- Power distribution networks
- HVAC systems
- Infrastructure and utility projects
- Electrical systems in automotive and marine environments
- Machinery and equipment wiring across various industries
Download our detailed specification sheet for more information:
Download Specification Sheet
