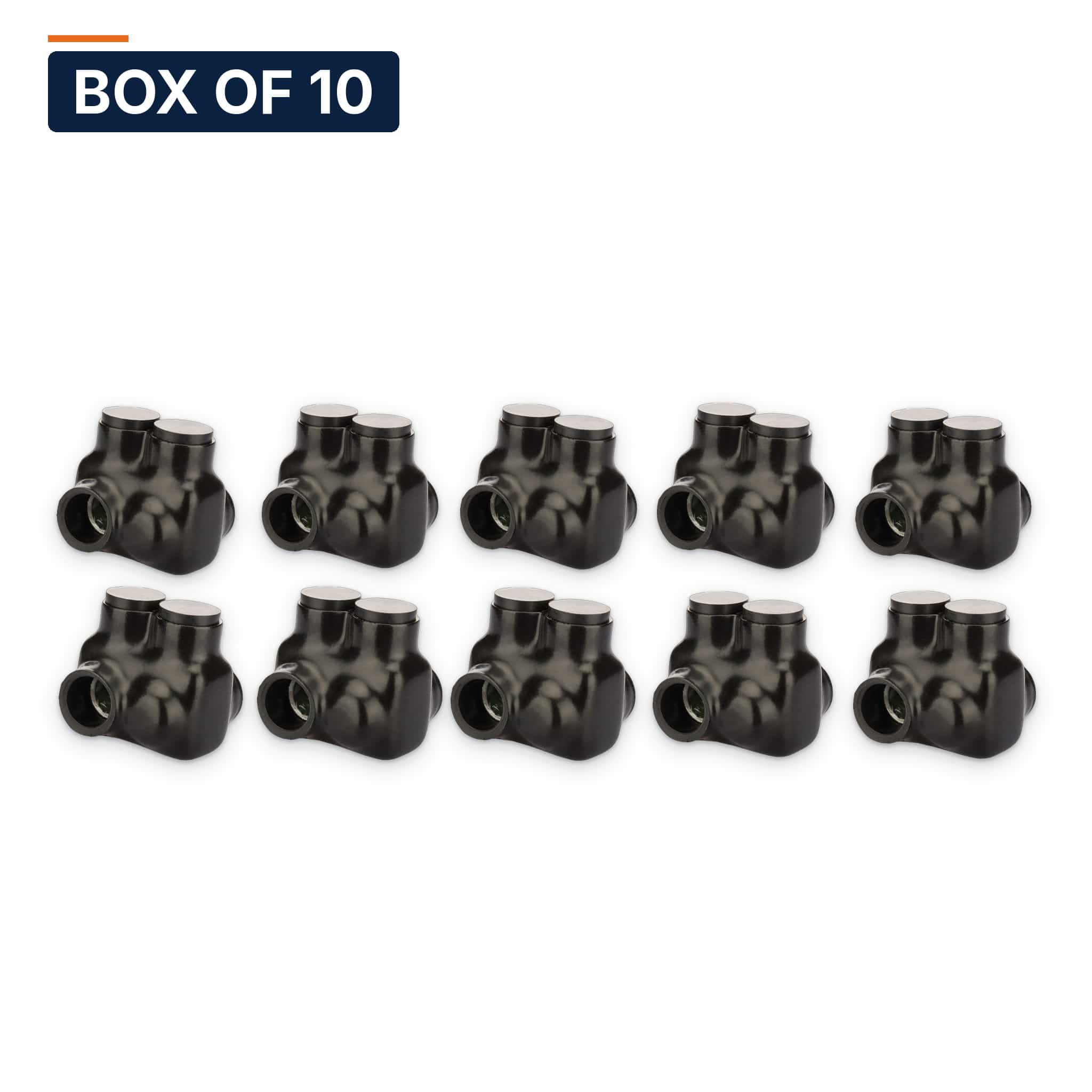

Insulated Tap Connectors for Two Wires Zig zag Entry 6 AWG - 250 MCM 2 Port
Shipping calculated at checkout
SKU: 610-3002250
60 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The 2-Port Insulated Tap Connector with Zig-zag Entry for 6 AWG - 250 MCM offers a unique combination for heavy-duty electrical connections. Here's a breakdown of the product overview, tech description, and specifications:
Product Overview
This connector bridges the gap between large and smaller conductors. It accommodates a wide range on one side:
- Large conductor: Up to 250 MCM (thousand circular mils) - typically used for high-power applications in industrial settings or utility distribution.
On the other side, it accepts a smaller conductor:
- Smaller conductor: 6 AWG - commonly used for branch circuits or feeding electrical equipment.
This versatility makes it suitable for various applications where connecting a large cable to a smaller one is necessary.
Tech Description
The zig-zag entry design allows for wires to be inserted from either the same or opposite sides of the connector. This flexibility simplifies installation and adapts to different wiring layouts. The connector is likely constructed with a high dielectric strength material, such as plastisol, for safe and reliable operation.
Here are the key technical aspects (refer to manufacturer specifications for confirmation):
- Conductor Compatibility: Dual Rated (Accepts both Aluminum and Copper Wires)
-
Wire Size:
- Large Conductor Port: Up to 250 MCM
- Small Conductor Port: 6 AWG
- Voltage Rating: Information might not be readily available (Verify with manufacturer specifications)
- Temperature Rating: Information might not be readily available (Verify with manufacturer specifications)
- Material: Likely High Dielectric Strength Plastisol (Typical material for insulated tap connectors, confirm with manufacturer)
- Ports: Offset Double Sided Entry with Removable Plugs (For closing unused ports)
- Body Style: 1 Pole, 2 Conductor
- Wire Type: Class B & C (Compatible with commonly used solid and stranded copper wires, verify with manufacturer for specific details)
- Hex Size: Information might not be available (Hex size might not be applicable for all tap connectors)
Specifications
- Dimensions: Information might not be readily available (Check manufacturer's website or datasheet for dimensions)
- Finish: Black (Typical finish for insulated tap connectors, confirm with manufacturer)
