LC/APC Single-Mode Fiber Pigtail | 9/125 OS2 | 2.5 m
Shipping calculated at checkout
SKU: CT-FPT-LCA-2.5M
In stock
Open here
LC/APC single-mode fiber pigtail, 9/125 µm OS2, 2.5 m. Factory-polished ceramic-ferrule connector on one end, bare fiber on the other — fusion-splice it into trays, closures, and terminal boxes and the connector-side loss is already certified. APC 8° polish delivers ≥55 dB typical return loss for PON and RF-sensitive plant.
Applications
- ODF and splice closure termination
- FTTH terminal boxes and distribution points
- Headend and central-office builds
- Restoration kits
| Fiber Type | Single-mode 9/125 µm OS2 |
| Connector | LC/APC |
| Length | 2.5 m |
| Insertion Loss | ≤0.3 dB max |
| Return Loss | ≥55 dB typical |
| Repeatability | ≤0.2 dB over 1,000 matings |
| Operating Temp | 30°C to +70°C |
Why Conversions Tech
Factory-certified connector loss makes your splice the only field variable. SC, FC, ST, MU styles and 12-color kits available to order.
Frequently Asked Questions
What is a fiber pigtail and how is it different from a patch cable?
A pigtail has a factory-polished connector on one end and bare fiber on the other. You fusion-splice the bare end to your cable plant, so the connector-side loss is factory certified and the splice is the only field variable.
What is the typical splice loss with these pigtails?
A good fusion splice adds roughly 0.02–0.05 dB. Combined with the pigtail's ≤0.3 dB max connector loss, total termination loss stays well inside standard link budgets.

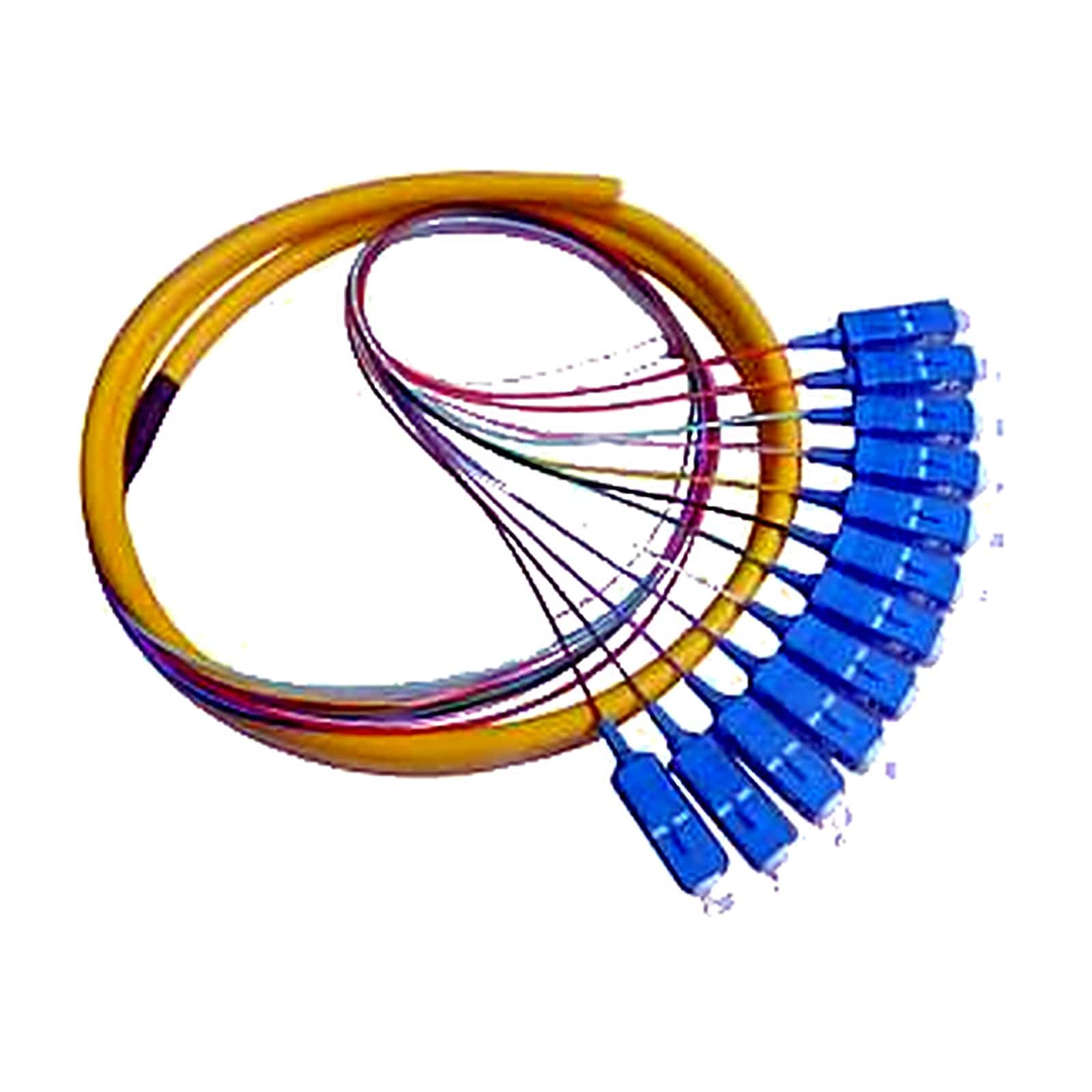

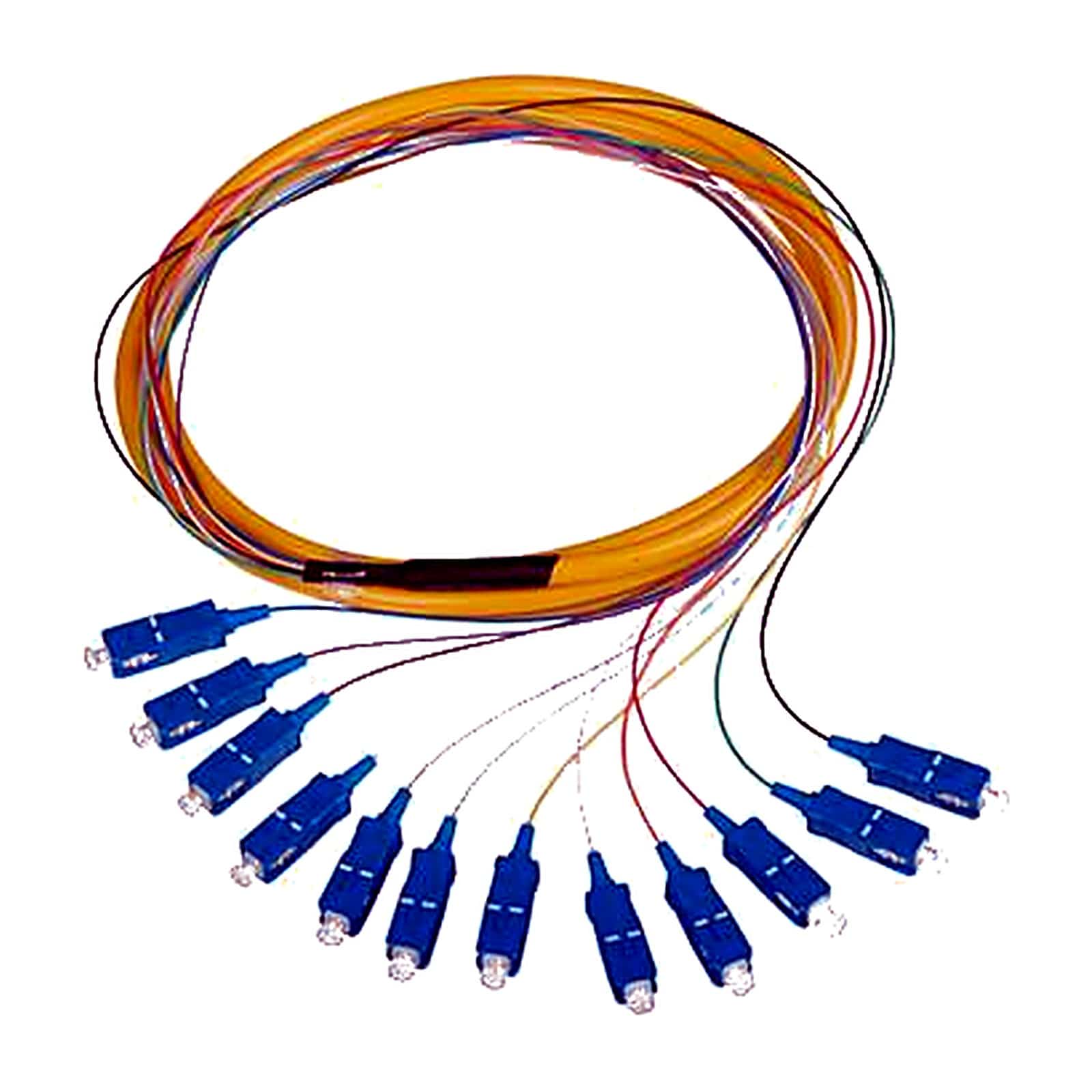

Do you offer 12-color pigtail kits?
Yes — 12-color single-mode kits and SC, FC, ST, and MU connector styles are available to order.
Lead Time: Made-to-order item. Typical lead time is 3–4 weeks from order confirmation. Call (307) 206-0534 for expedited or volume requirements, custom lengths, or connector combinations not listed.
Browse the complete line in our Fiber Optic Connectivity collection or download the full CT-31 Fiber Optic Catalog.
Specifications
| Part Number | CT-FPT-LCA-2.5M |
| Category | Fiber cable |
| Weight | 0.15 lb (est.) |
| HS Code | 8544.70.0000 |
Cross-Reference & Spec Class: CT-FPT-LCA-2.5M
| Brand | Series | Spec Class |
|---|---|---|
| Corning | fiber patch class* | OS2 Single-mode LC-LC |
| CommScope | LazrSPEED / TeraSPEED class* | same OS2 Single-mode performance class |
| Panduit | Opti-Core class* | 10G+ long-haul |
| Conversions Tech | CT-FPT-LCA-2.5M | Trade pricing |
OS2 Single-mode fiber, LC/UPC-LC/UPC polish class, ceramic ferrules, 10G+ long-haul rated. Insertion loss ≤0.3 dB typical. Bend-insensitive fiber.
*Cross by fiber mode, connector, and performance class per TIA-568 - all standard OS2 Single-mode plant compatible. Trademarks belong to their owners.
Complete the run: keystones, patch panels, fiber accessories. Installer volume pricing →
