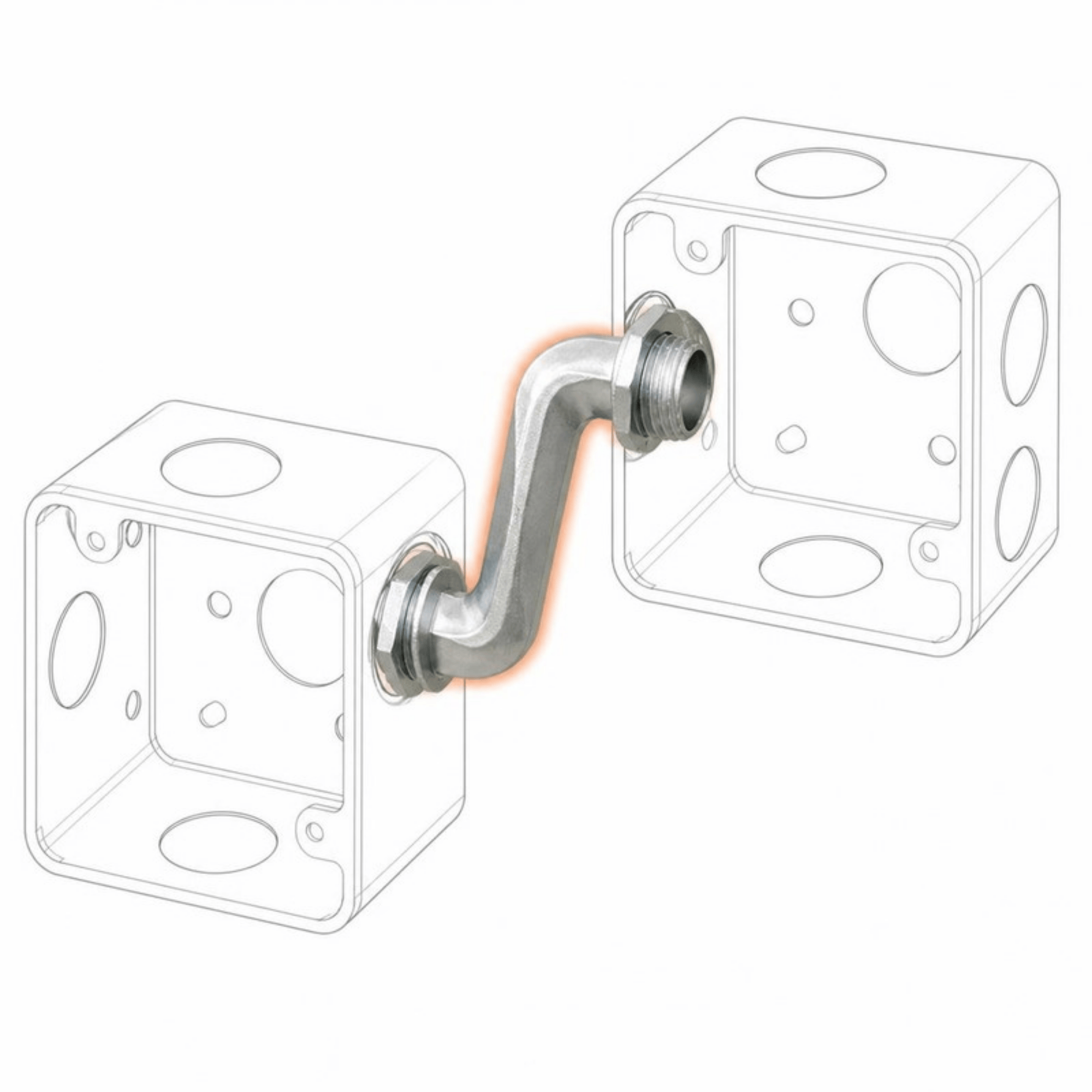

Offset Nipple-Box to Box, Zinc Die Cast 3/4" | OFN-075

Overview

The Offset Nipple-Box to Box, Zinc Die Cast 3/4" is a versatile electrical fitting used to connect two electrical boxes while allowing for an offset alignment between the boxes. This nipple, made from durable zinc die-cast, provides a secure and corrosion-resistant connection. The 3/4-inch size is commonly used in a variety of electrical systems, making it suitable for both residential and commercial applications. The zinc die-cast material ensures durability and longevity, while the offset design allows for flexibility in installation where boxes are misaligned or when space constraints exist.

Description

The Offset Nipple-Box to Box 3/4" is designed to connect two electrical boxes in a manner that offsets the alignment between them. The 3/4-inch size refers to the conduit size that the nipple is compatible with, ensuring it fits 3/4-inch EMT conduit. The nipple features a zinc die-cast construction, which is lightweight yet robust, providing excellent corrosion resistance to withstand various environmental conditions, including moisture or corrosive atmospheres. The offset feature helps when the boxes are not perfectly aligned, making it easier to connect them while maintaining a neat and secure installation.

Specifications

• Type: Offset nipple (for connecting electrical boxes)
• Size: 3/4" (designed for use with 3/4-inch EMT conduit)
• Material: Zinc die-cast (offers strength, durability, and corrosion resistance)
• Connection: Designed to connect two electrical boxes while providing an offset, allowing for slight misalignment between boxes during installation
• Voltage Rating: Rated for use in electrical systems up to 600V, suitable for residential, commercial, and industrial electrical circuits
• Finish: Zinc die-cast finish ensures protection against corrosion and wear
• Compliance: UL-listed, meeting safety standards for electrical installations, including compliance with the National Electrical Code (NEC)

Cases & Uses

• Box-to-Box Connections: Used to connect two electrical boxes (e.g., outlet boxes, junction boxes) when an offset is required to adjust for misalignment.
• Residential Installations: Commonly used in residential applications where electrical boxes need to be connected, but slight offsets are needed due to space limitations or pre-existing box placements.
• Commercial Installations: Suitable for use in commercial electrical systems where 3/4-inch EMT conduit is employed, providing flexibility in routing conduit between electrical boxes.
• Industrial Installations: Used in industrial settings, especially in control systems and distribution panels, where electrical boxes need to be connected despite alignment challenges.
• Outdoor and Wet Locations: Due to its zinc die-cast material, the nipple is suitable for use in outdoor and wet locations, providing the necessary protection against environmental exposure.

Features

• Offset Design: The offset nipple design allows for easy connection between two electrical boxes, even if they are slightly misaligned, making the installation process more flexible.
• Corrosion Resistance: The zinc die-cast construction ensures superior protection against corrosion, making it ideal for both indoor and outdoor electrical installations.
• Durability: The zinc die-cast material is strong and durable, ensuring that the nipple will perform well in a variety of harsh environments and provide long-term reliability.
• Grounding Continuity: When used with proper grounding procedures, the nipple helps maintain grounding continuity between electrical boxes, which is crucial for electrical safety.
• UL-Listed: The UL-listed marking confirms that the nipple meets the safety standards set by Underwriters Laboratories (UL), ensuring that it is safe for use in electrical installations.
• Compliance with NEC: The nipple complies with the National Electrical Code (NEC), meeting industry standards for electrical safety and performance.
• Easy Installation: The nipple is designed for simple installation, allowing electricians to make quick and secure connections between electrical boxes without the need for specialized tools.

Summary

The Offset Nipple-Box to Box, Zinc Die Cast 3/4" is a highly durable and corrosion-resistant fitting designed to connect two electrical boxes while accommodating misalignments. Made from zinc die-cast, it provides superior protection against rust and wear, making it ideal for both indoor and outdoor applications. The offset design adds flexibility in installation, ensuring the electrical boxes can be connected even if they are not perfectly aligned. The nipple is UL-listed, ensuring compliance with NEC standards for safety, and it is suitable for use in a wide range of residential, commercial, and industrial electrical installations.

Availability: This item ships on our standard restock cycle — typical lead time 2–3 weeks. Order now to reserve your place in the queue, or email sales@conversionstech.com for expedited options and firm dates on volume orders.

Specifications

Brand Compatibility

Standard zinc die-cast offset nipple for box-to-box connections. Direct replacement for the equivalent trade size from Bridgeport, RACO, Halex, or any UL 514B-listed manufacturer - offset nipples are dimensionally standardized, so no brand-specific cross-reference is required.
