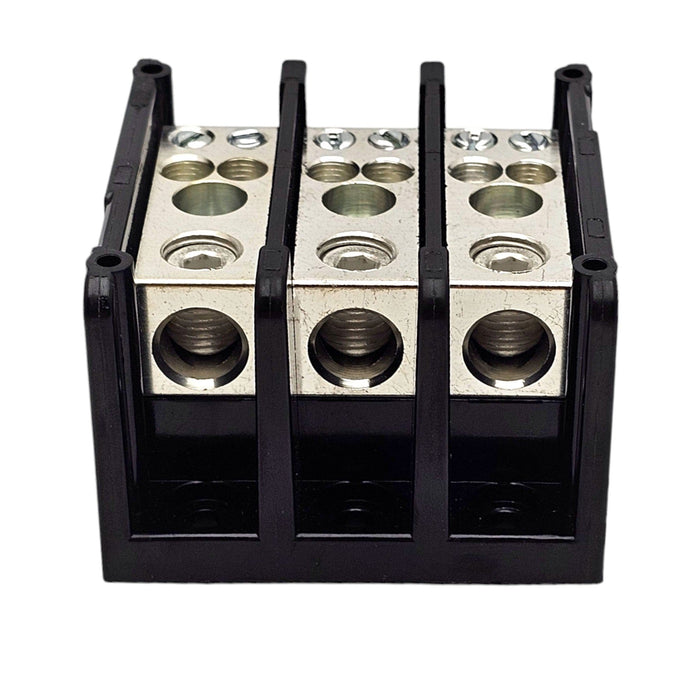

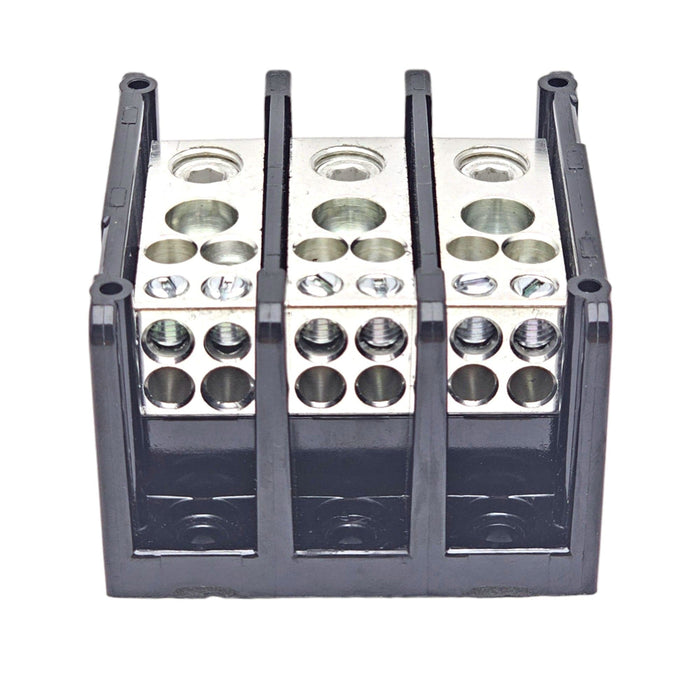

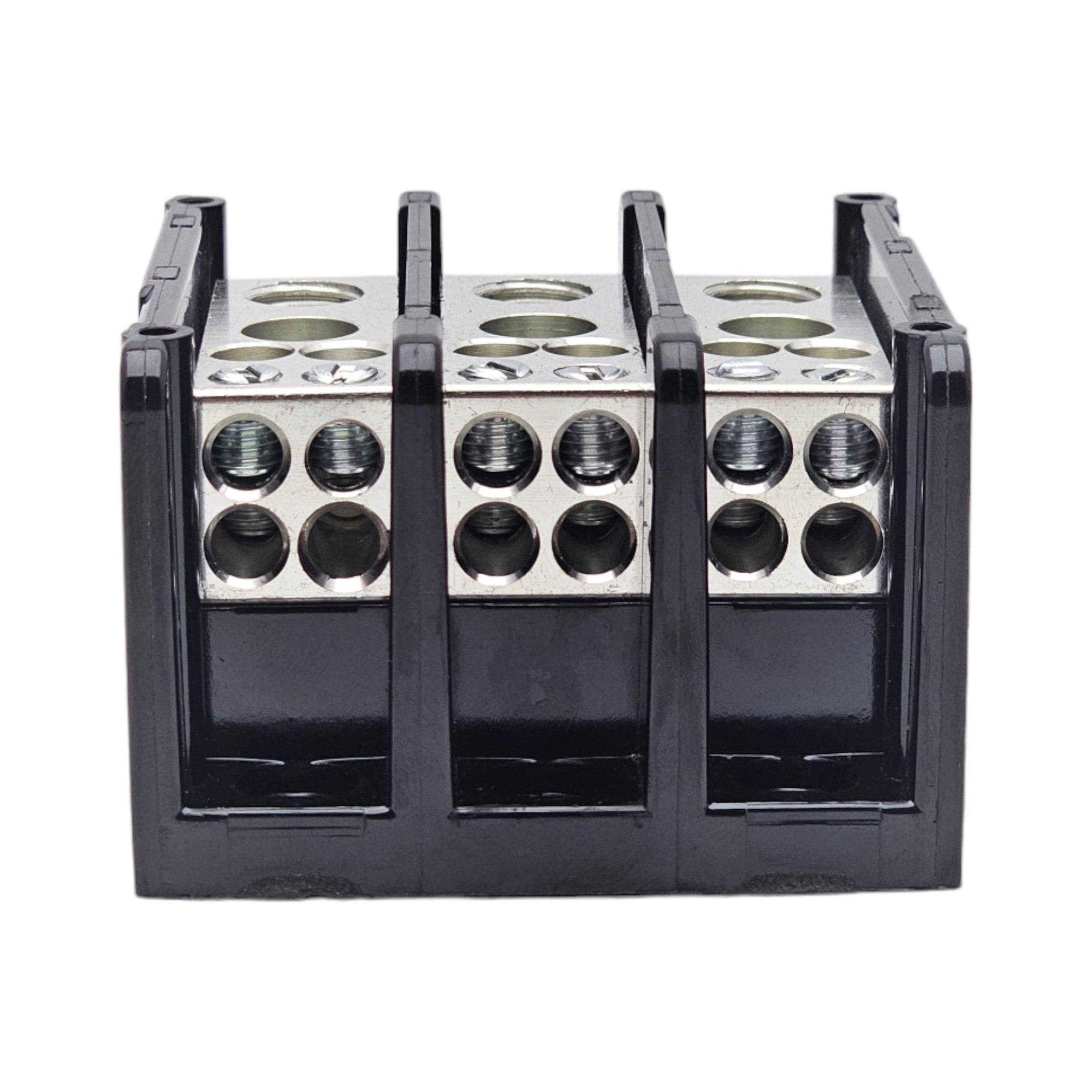

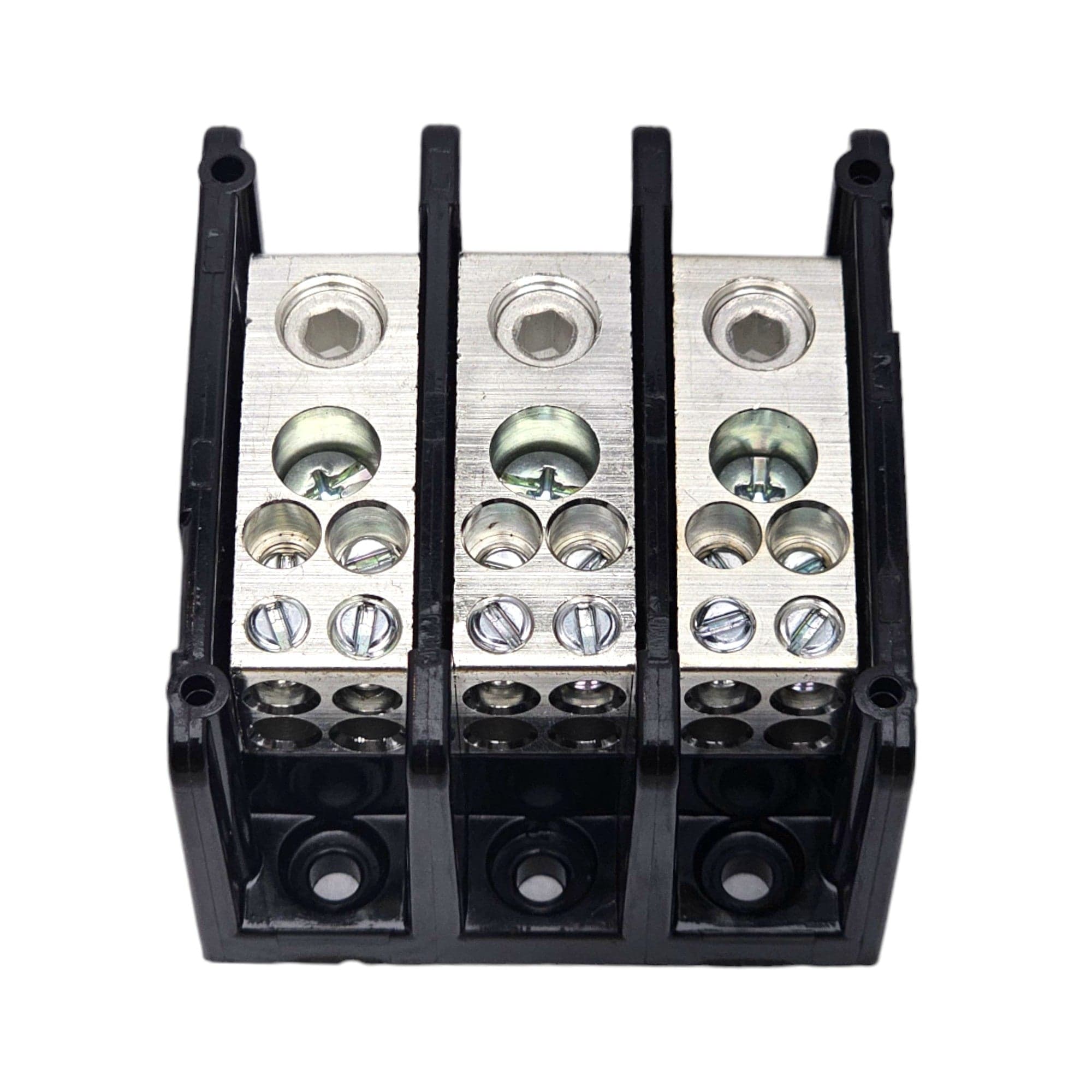

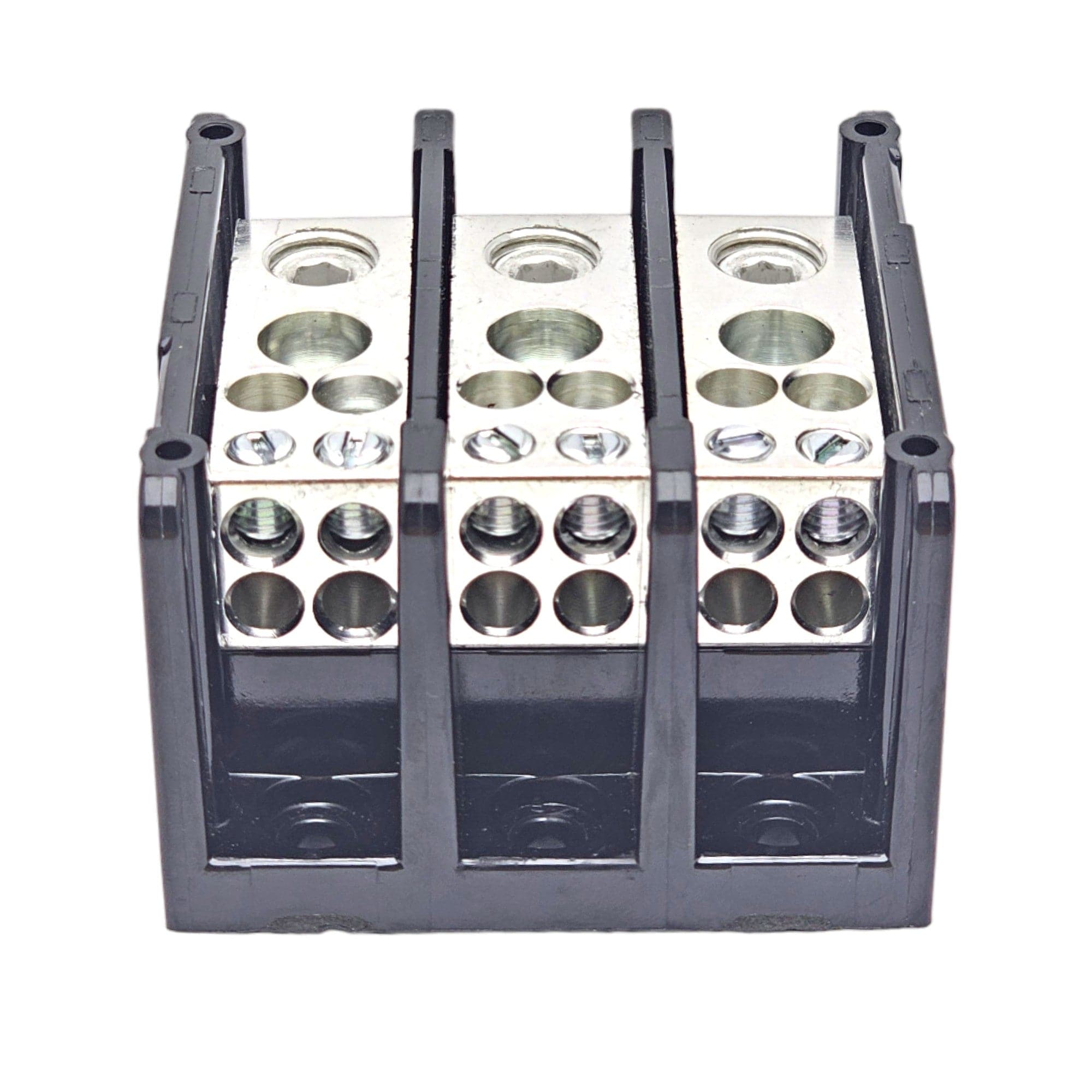

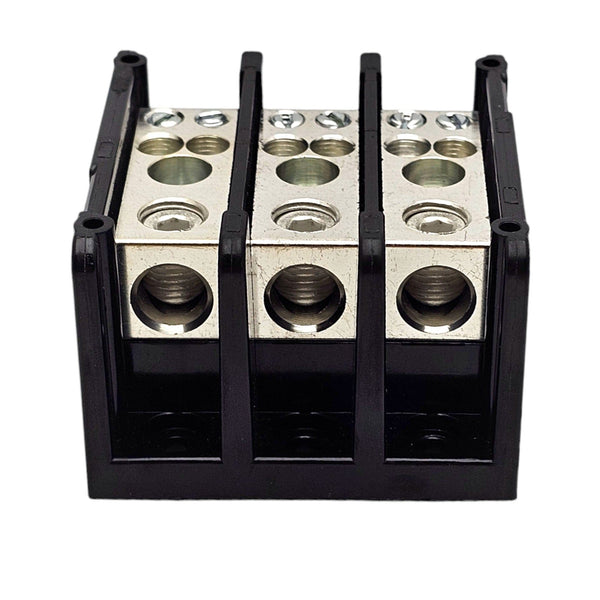

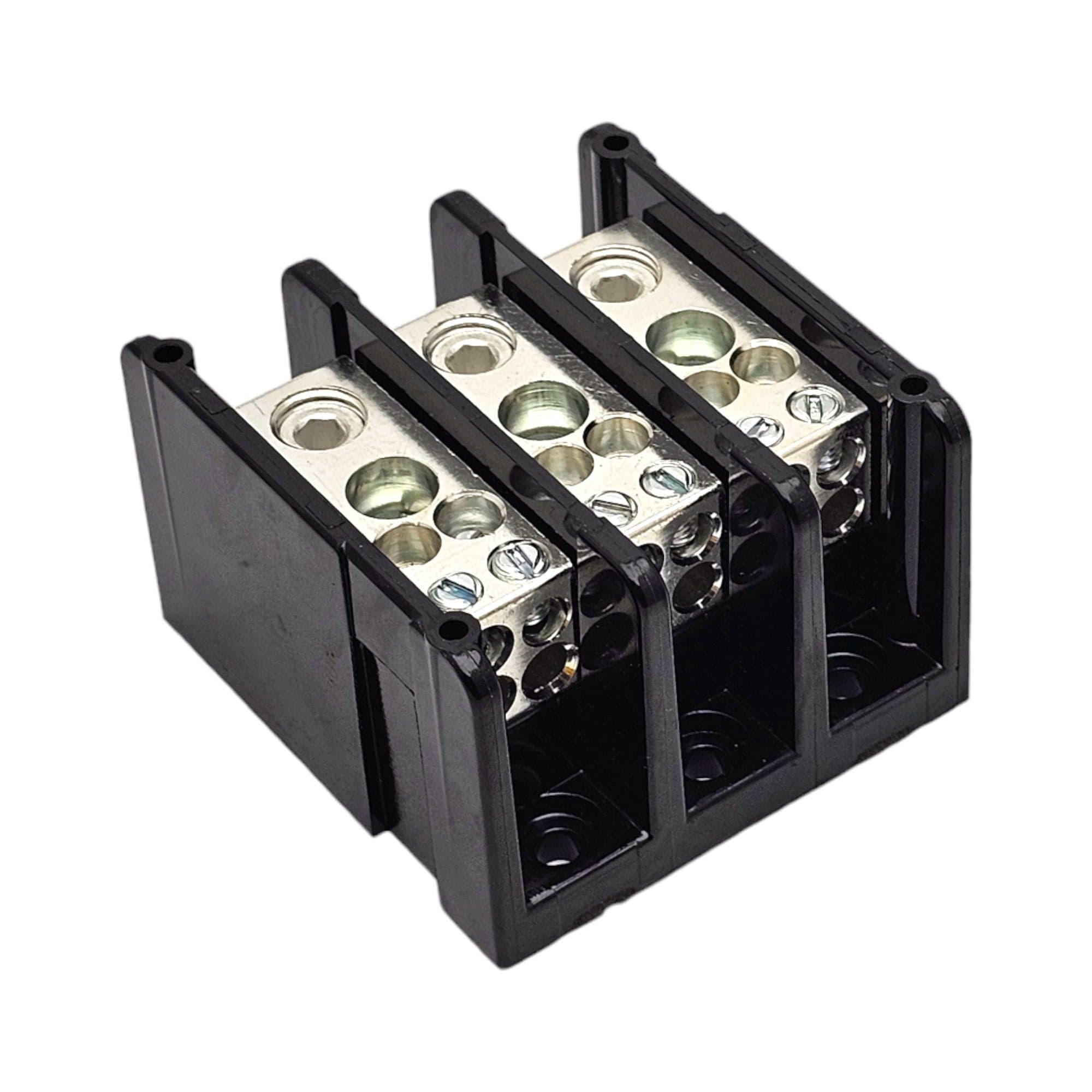

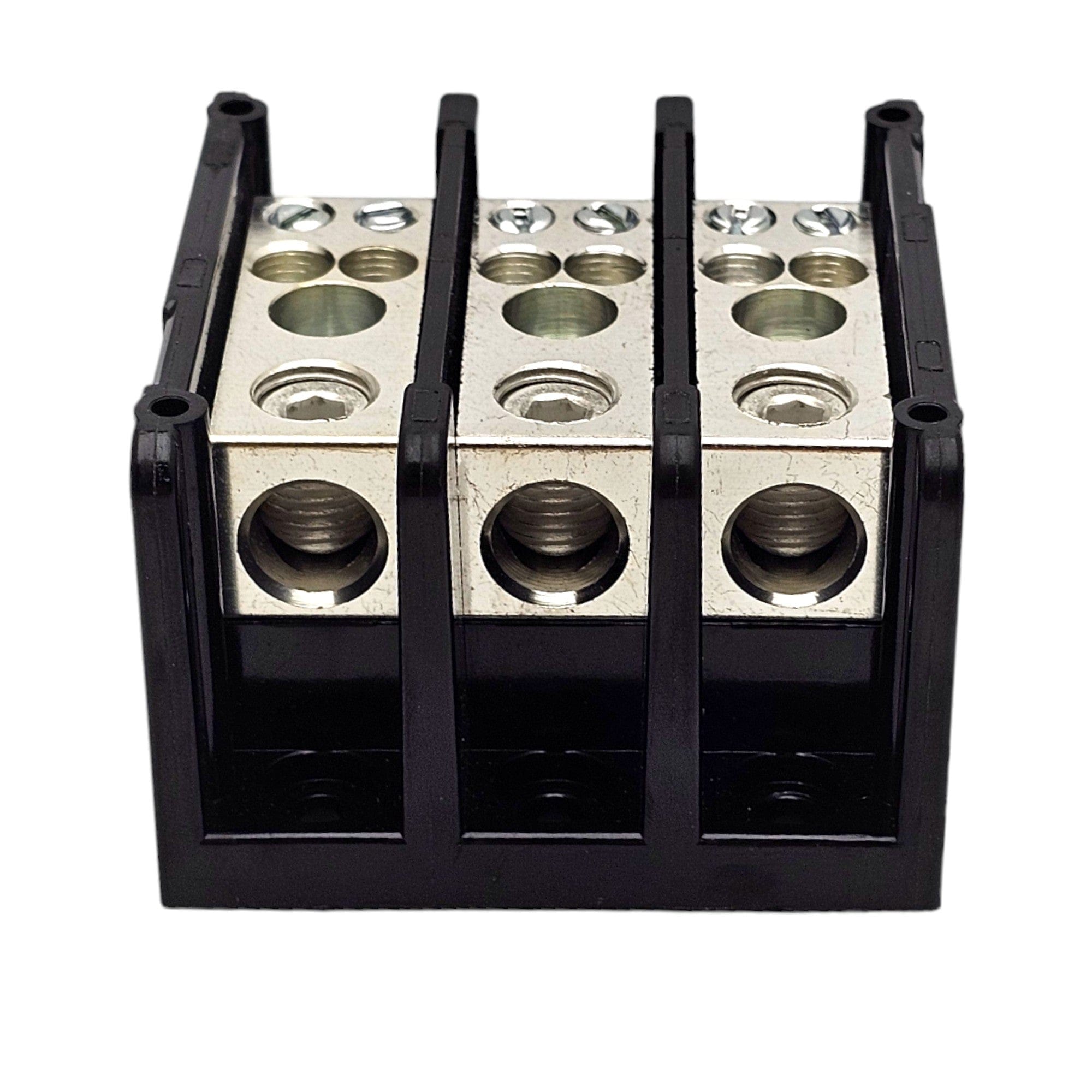

Power Distribution Block 3 Pole 1 input 4 output 600 VAC 175 AMP
Shipping calculated at checkout
SKU: 772-314001
Out of stock
Open here
The Conversions Tech Power Distribution Block is a critical component in electrical distribution systems, designed to facilitate the efficient distribution of electrical power in a variety of industrial and commercial applications.
Specifications
- Number of Poles: 3
- Voltage Rating (AC): 600 VAC
- Current Rating (AC): 175 A
- Number of Inputs per Pole: 1
- Number of Outputs per Pole: 4
- Line/Load Connection: Box Lug/Box Lug
- Mounting Type: Panel Mount
- Input Wire Range: 2/0-14 AWG
- Output Wire Range: 4-14 AWG

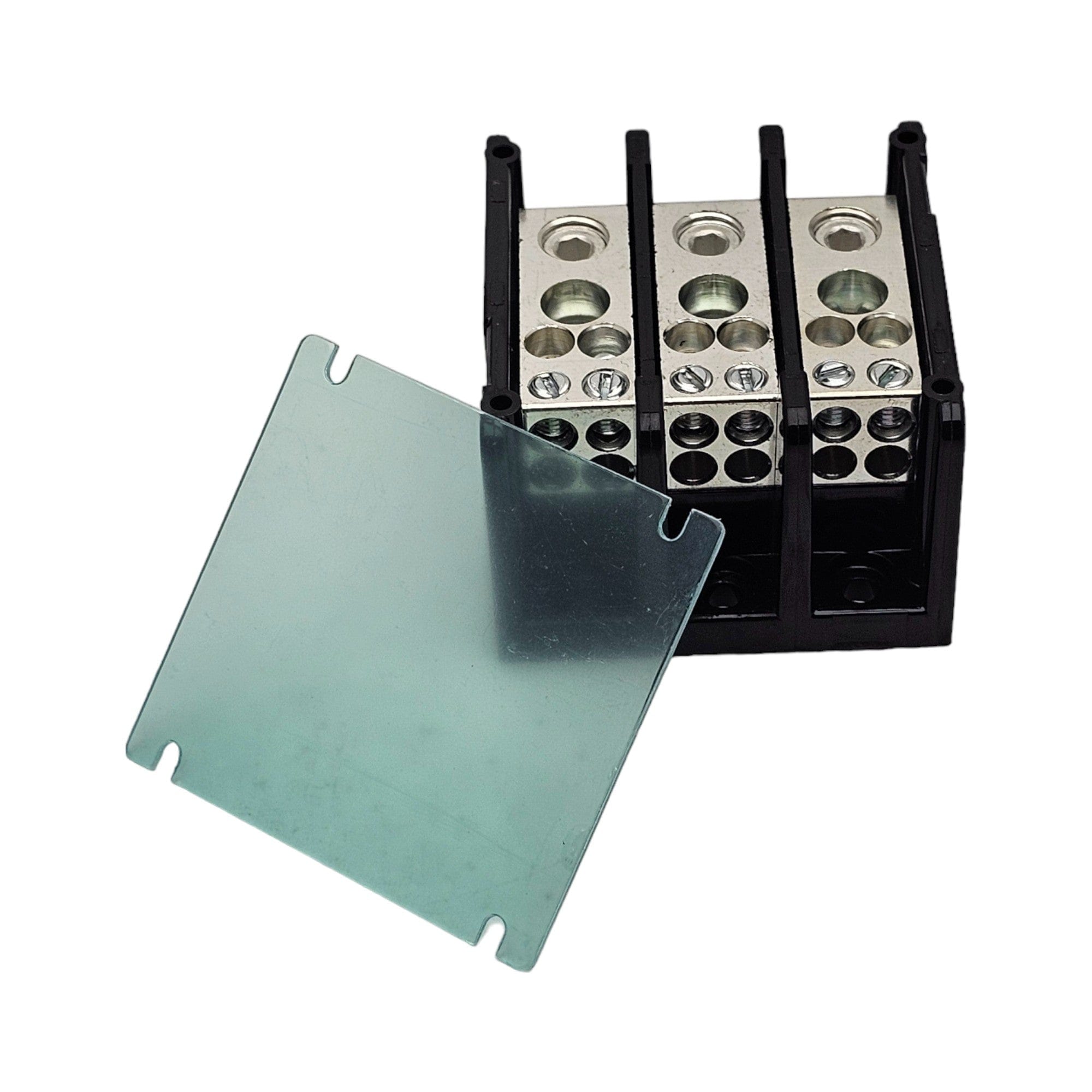

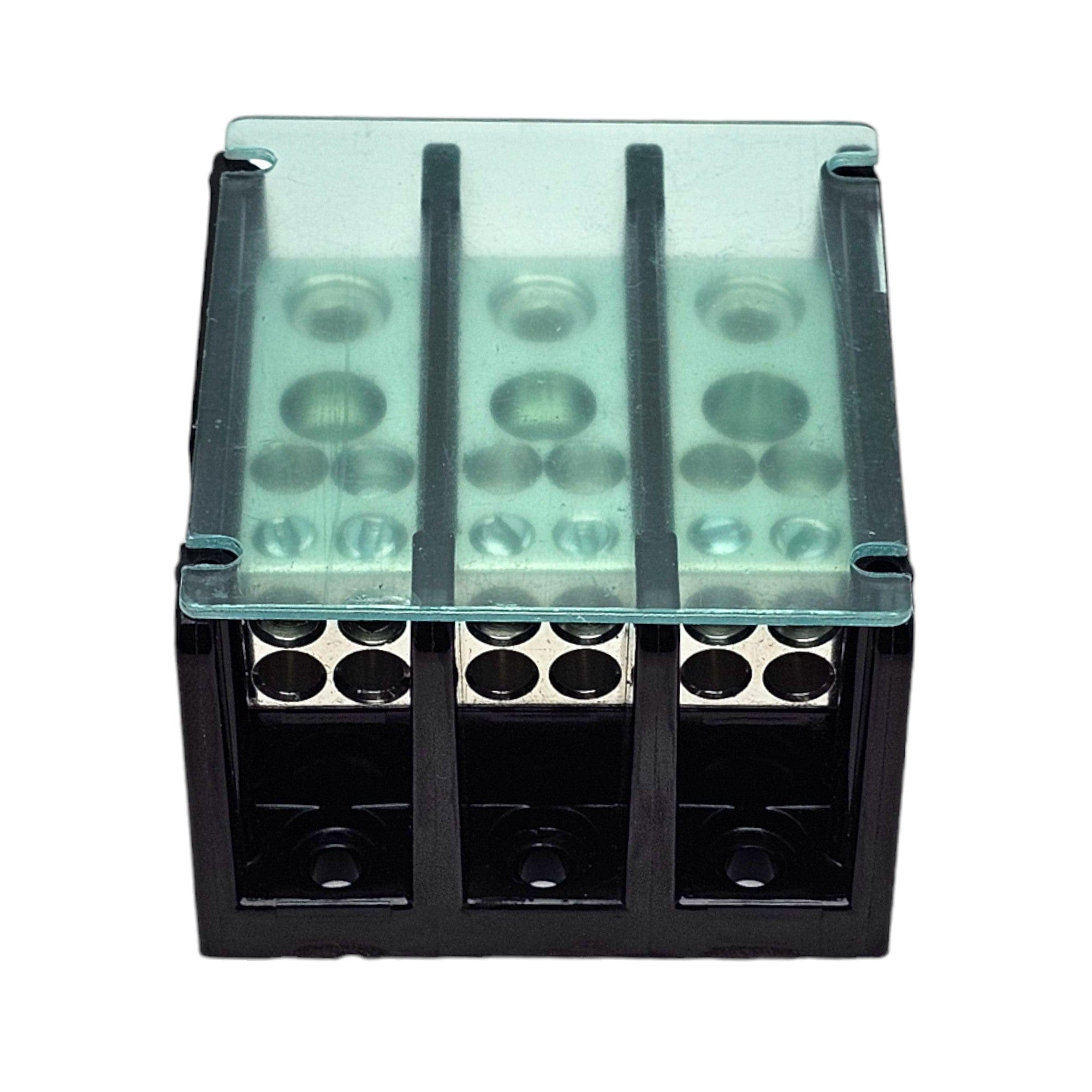

- Includes Cover: YES
- Composition: Phenolic
- UL Compliance: UL1059
- Color: Black
- Approvals: CE, CSA, UL
- RoHS: No
- Net Weight: 0.54 lbs
- Gross Weight: 0.54 lbs
Use Cases
- Industrial Power Distribution: Suitable for use in industrial settings where high-voltage and high-current power distribution is required.
- Commercial Electrical Panels: Ideal for integration into commercial electrical panels, providing a reliable means of distributing power to various circuits.
- Machinery and Equipment Connections: Can be used to connect multiple pieces of machinery or equipment to a single power source, ensuring efficient power distribution.
- Renewable Energy Systems: Applicable in renewable energy installations such as solar or wind power systems, where reliable power distribution is critical.
- HVAC Systems: Suitable for use in HVAC systems, providing power to multiple components from a single source.
- Data Centers: Ideal for data center applications, where reliable and efficient power distribution to servers and other equipment is essential.
- Electrical Testing and Prototyping: Useful in electrical testing and prototyping environments, allowing for flexible connections and configurations.
