Sigma Wire & Cable | Bulk RG6 Coaxial Cable | Dual Shield, 60% Braid | 1000 ft Reel-N-Box | Orange
Shipping calculated at checkout
SKU: 991-110
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
RG6 Coaxial Cable — Dual Shield (Orange, 1000 ft Wooden Reel)
In signal transmission, cable quality directly impacts performance. Sigma Wire’s Orange RG6 Coaxial Cable is engineered for precision and reliability, delivering superior signal fidelity for both professional installations and advanced home setups. With dual-layer shielding and rugged construction, this cable ensures clean, consistent signals—even in high-interference environments.
Key Features
- Temperature Range: –40 ℃ to 75 ℃
- Voltage Rating: 30 V
- Certifications: CSA, ETL, UL, CM rated for commercial and residential use

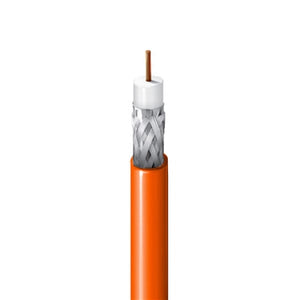

- Conductor: 18 AWG Copper-Clad Steel, 1.02 mm diameter
- Shielding: Dual-layer (bonded aluminum foil + 36 AWG aluminum braid)
- Insulation: Foam PE, dielectric diameter 4.57 ± 0.01 mm
- Jacket: PVC, 6.93 ± 0.2 mm, with ≥2% carbon for UV resistance
- Nominal Capacitance: 53 ± 0.1 nF/km
- Impedance: 75 Ω ± 1.5
- Bending Radius: Supports S & U bending, minimum 1.5 cm
Mechanical Properties
| Impact Test @ –15 ℃ | No jacket damage |
| Cold Bend Test @ –40 ℃ | No jacket damage |
| Max Jacket Ovality | 7% |
| Max Dielectric Ovality | 7% |
| Max Jacket Eccentricity | ≤ 10% |
Electrical Properties
| DC Resistance (Inner) | 100 Ω/km ± 1 |
| DC Resistance (Outer) | 18 Ω/km ± 0.5 |
| Return Loss | ≥ –20 dB |
| Velocity of Propagation | ≥ 82% |
Applications
- CATV & Satellite: Delivers clear video and audio signals for broadcast and TV systems.
- Professional Baseband Video: Compatible with BNC connectors for high-fidelity transmission.
- Consumer A/V Systems: Adaptable for RCA connectors and other devices in home entertainment setups.
Packaging & Availability
- Length: 1000 ft per wooden reel
- Color: Orange for easy identification on-site
- Pallet Options: Available in 20 or 30 reel quantities
Why Choose Sigma Wire?
Every reel of Sigma Wire RG6 is built with meticulous attention to detail, ensuring minimal signal attenuation, maximum durability, and exceptional fidelity across applications. With certifications from CSA, ETL, and UL, it’s approved for both residential and commercial installs. Whether you’re wiring a broadcast facility, building out CATV distribution, or upgrading a home theater, this cable is the gold standard in RG6 performance.
