Bulk RG6 Coaxial Cable | Dual Shield, 60% Braid | 1000 ft Wooden Reel | Orange
Shipping calculated at checkout
SKU: 880-100
In stock
Open here

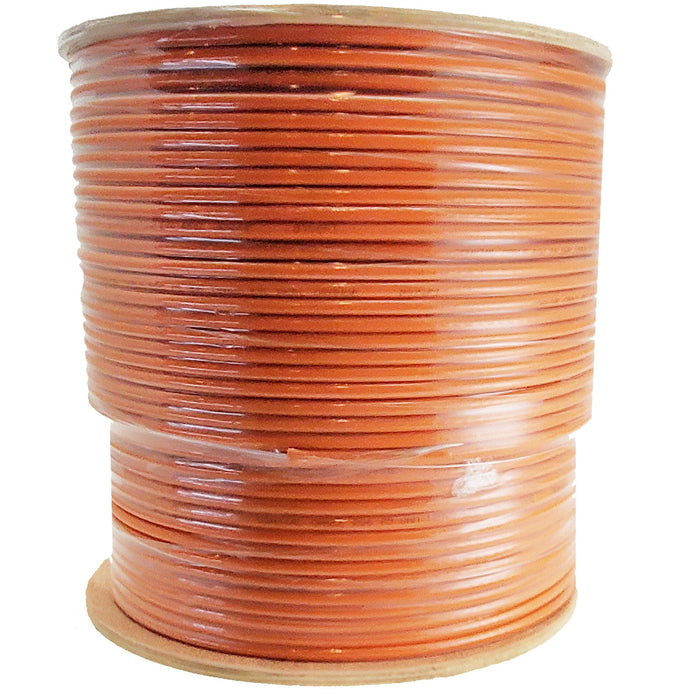

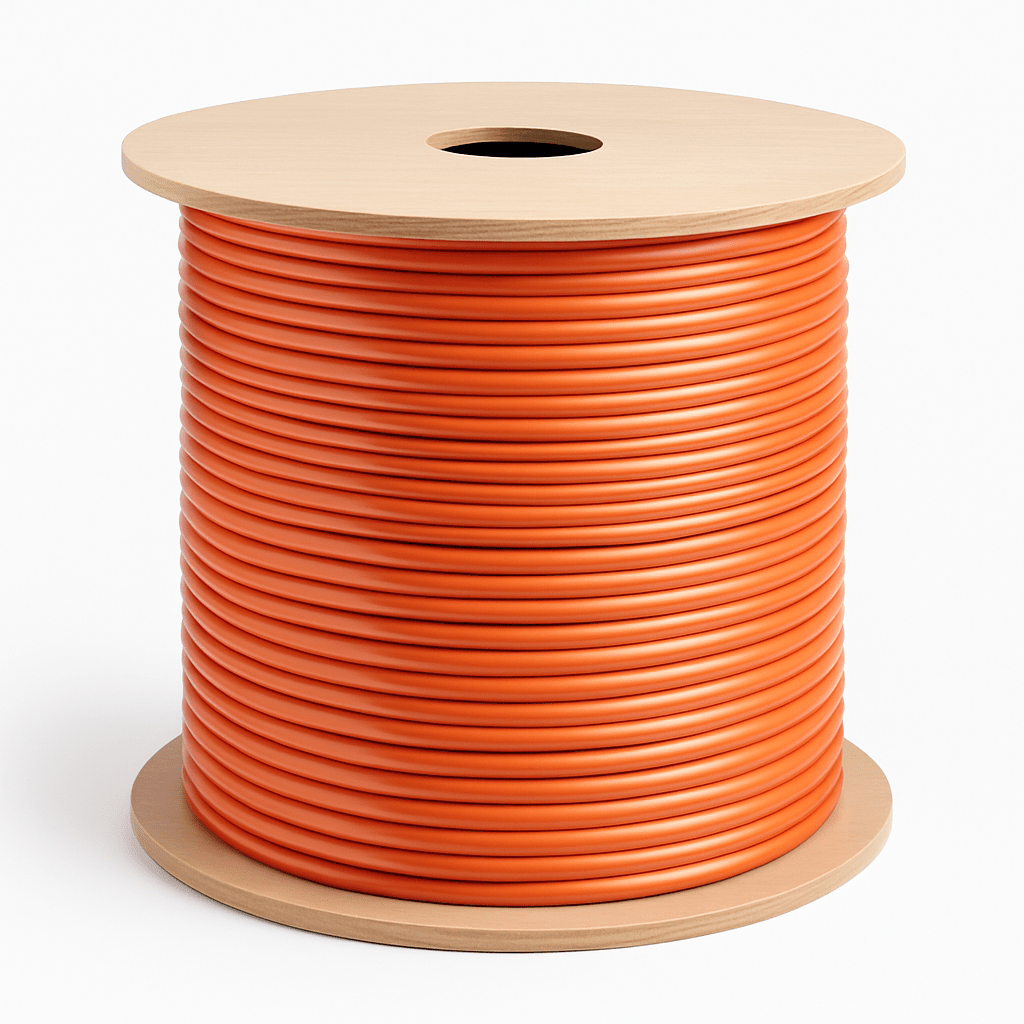

RG-6 Orange Coaxial Cable – 1,000 ft Reel
Conversions Tech’s high-performance RG-6 coax is purpose-built to deliver rock-solid signal integrity for CATV, satellite, and professional A/V systems. Precision foam-PE insulation, dual-layer shielding, and a tough PVC jacket keep attenuation low, block interference, and survive demanding installs.
Why Installers Choose Conversions Tech
- Ultra-Low Loss Design – 18 AWG CCS conductor plus foam-PE dielectric cut signal fade.
- Dual-Layer Shielding – 100 % aluminum foil + 36 AWG braid deliver 90 dB+ EMI/RFI rejection.
- Harsh-Environment Rated – Operates from −40 °C to 75 °C; jacket resists UV, moisture, and abrasion.
- Fully Certified – CSA, ETL, UL & CM ratings keep you code-compliant.
- Installer-Friendly Reels – 1,000-ft wooden reels feed smoothly and cut waste on long pulls.
Technical Specifications
Cable Construction
| Parameter | Specification |
|---|---|
| Conductor | 18 AWG Copper-Clad Steel (Ø 1.02 mm) |
| Dielectric / Ø | Foam PE / 4.57 ± 0.01 mm |
| Shielding | Aluminum foil + 36 AWG aluminum braid |
| Jacket | PVC, Ø 6.93 ± 0.2 mm |
Electrical Performance
| Parameter | Value |
|---|---|
| Characteristic Impedance | 75 Ω ± 1.5 Ω |
| Velocity of Propagation | ≥ 82 % |
| Structural Return Loss | ≤ −20 dB |
| DC Resistance (Inner / Outer) | 100 Ω / 18 Ω per km |
| Capacitance | 53 ± 0.1 nF per km |
Mechanical & Environmental
| Test / Rating | Result |
|---|---|
| Operating Temp. | −40 °C to 75 °C |
| Min. Bend Radius | 1.5 cm (supports S- & U-bends) |
| Impact @ −15 °C | No jacket damage |
| Cold Bend @ −40 °C | No jacket damage |
| Jacket / Dielectric Ovality | ≤ 7 % |
Ideal Applications
- CATV & Satellite – Crisp, pixel-perfect video with minimal signal loss.
- Broadcast & Baseband Video – Pair with BNC connectors for pro-studio workflows.
- High-End Home A/V – Seamless performance with RCA or F-type terminations.
Packaging & Ordering
| Length / Reel | Color | Bulk Pallet Qty. |
|---|---|---|
| 1,000 ft (304.8 m) | High-visibility Orange | 20 – 30 wooden reels |
Ready to upgrade your signal chain? Contact our sales team for volume pricing and immediate shipping.
