Bulk RG6 Coaxial Cable | Dual Shield, 60% Braid | 1000 ft | Purple
Shipping calculated at checkout
SKU: 990-130
Out of stock
Open here

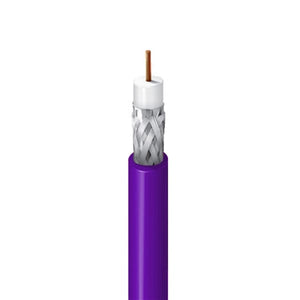

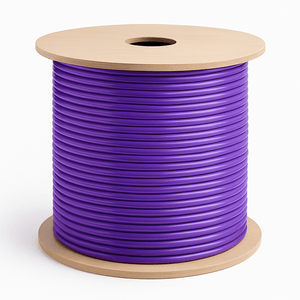

Conversions Tech™ Purple RG-6 Coax – 1,000 ft Pull Box
Studio-grade data fidelity from 5 MHz to 3 GHz for CATV, satellite, and pro A/V. Built to ANSI/SCTE 74 & IEC 61196, this triple-shield cable delivers razor-sharp signals—every run.
Top-Line Benefits
- Ultra-Low-Loss Dielectric – Foam-PE (Ø 4.57 ± 0.01 mm) keeps capacitance at just 53 nF/km.
- Triple-Shield Protection – Bonded AL foil + 36 AWG braid annihilates EMI/RFI.
- Wide Temperature Range – UV-stable PVC jacket survives −40 °C to +75 °C.
- Installer-Friendly Pull Box – 1,000 ft, tangle-free feed; ≤ 7 % jacket ovality for fast terminations.
- Universal 75 Ω Impedance – Works perfectly with F, BNC, or RCA connectors.
- CSA & ETL Certified – Assured code compliance and performance.
Detailed Specifications
Electrical
| Parameter | Value |
|---|---|
| Impedance | 75 Ω ± 1.5 Ω |
| Velocity of Propagation | ≥ 82 % |
| Capacitance | 53 nF/km |
| Return Loss | ≥ 20 dB |
Construction
| Component | Specification |
|---|---|
| Conductor | 18 AWG Copper-Clad Steel (Ø 1.02 mm) |
| Dielectric | Foam PE, Ø 4.57 mm |
| Shielding | 100 % AL foil + 36 AWG AL braid |
| Outer Jacket | PVC, Ø 6.93 ± 0.2 mm, UV-rated |
Environmental
| Parameter | Rating |
|---|---|
| Temperature | −40 °C – +75 °C |
| Min. Bend Radius | 1.5 cm |
Ideal Applications
- CATV / MATV Head-Ends – Use with compression-type F connectors.
- Satellite IF (L-Band) – Fully DiSEqC & multiswitch compatible.
- Pro Base-Band Video – BNC-terminated for SDI, composite, or component feeds.
- High-Fidelity Consumer A/V – RCA terminations for subs & S/PDIF audio.
