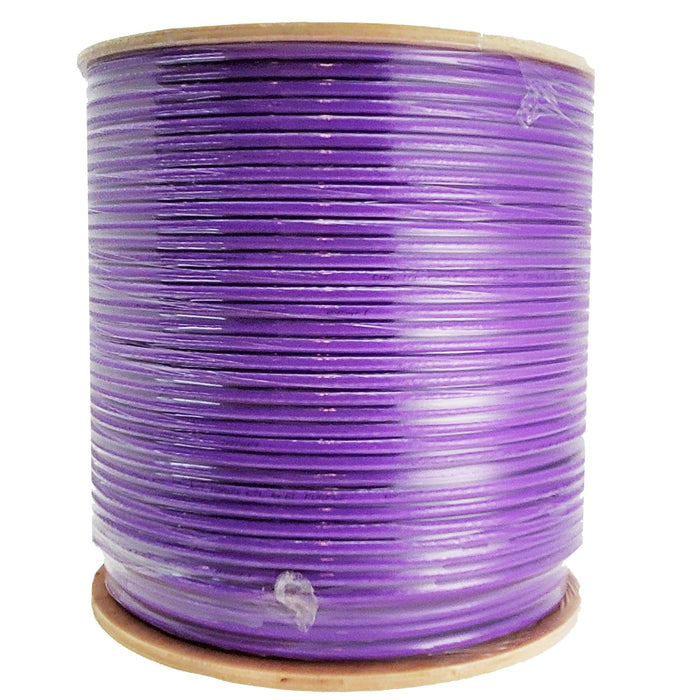

Sigma Wire & Cable | Bulk RG6 Coaxial Cable | Dual Shield, 60% Braid | 1000 ft Wooden Reel | Purple
Shipping calculated at checkout
SKU: 880-125
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
RG6 Coaxial Cable (1000 ft, Purple) — Dual-Shield, 75 Ω, Foam PE, CSA/ETL/UL | Sigma Wire
When signal integrity matters, the cable you choose is everything. Sigma Wire RG-6 Purple Coaxial Cable is engineered for low loss, tight impedance control, and superior interference protection across CATV, satellite, professional baseband video, CCTV, and high-fidelity A/V. The long-run 1000-ft reel makes large installations faster and cleaner—at the performance level technicians trust.
Why Installers Pick This RG6 First
- Reliable 75 Ω Impedance (±1.5): Stable return loss to protect SNR and picture quality.
- Low-loss Dielectric: Precision Foam PE (Ø 4.57 ± 0.01 mm) for consistent attenuation and high VoP.
- Dual Shielding (Foil + Braid): Aluminum foil tape plus 36 AWG aluminum braid blocks EMI/RFI in noisy environments.
- Durable PVC Jacket: Ø 6.93 ± 0.2 mm with ≥2% carbon black for UV/abrasion resistance; color-coded purple for easy ID.
- Field-Proven Mechanics: Passes impact at −15 °C and cold-bend at −40 °C with no jacket damage.
- Certified & Code-Ready: CSA Certified, ETL Listed, UL Listed, CM rated for versatile commercial/residential use.

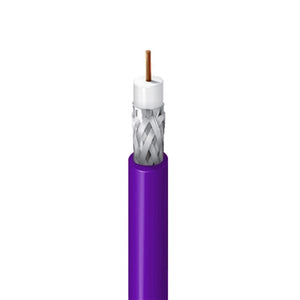

Construction & Materials
| Element | Specification |
|---|---|
| Impedance | 75 Ω (±1.5) |
| Center Conductor | 18 AWG Copper-Clad Steel, Ø 1.02 mm |
| Dielectric | Foam PE, Ø 4.57 ± 0.01 mm |
| Shield | Dual layer — Aluminum foil tape + 36 AWG aluminum braid |
| Jacket | PVC, Ø 6.93 ± 0.2 mm, carbon black ≥ 2% (purple color) |
| Capacitance | 53 ± 0.1 nF/km |
Electrical Performance
| Parameter | Value |
|---|---|
| DC Resistance (inner) | 100 Ω/km (±1) |
| DC Resistance (outer) | 18 Ω/km (±0.5) |
| Structural Return Loss (min) | −20 dB |
| Velocity of Propagation (min) | ≥ 82% |
| Rated Voltage | 30 V |
Environmental & Mechanical
| Property | Result |
|---|---|
| Operating Temperature | −40 °C to 75 °C |
| Impact Test @ −15 °C | No visible jacket damage |
| Cold-Bend @ −40 °C | No visible jacket damage |
| Jacket Ovality (max) | 7% |
| Dielectric Ovality (max) | 7% |
| Jacket Eccentricity (max) | ≤ 10% |
| Bending Ability | Supports S/U bends; min radius ≤ 1.5 cm |
Applications & Use Cases
- CATV & Satellite — stable 75 Ω match for clean video/audio and tuner lock.
- Professional Baseband Video — compatible with BNC interconnects for high-fidelity feeds.
- Consumer A/V — adaptable to RCA and other coax connectors for premium home theater.
- CCTV & RF Distribution — dual-shield build limits ingress/egress in high-noise spaces.
Compliance, Packaging & Availability
- Certifications: CSA, ETL, UL; CM communications rating.
- Length: 1000-ft reel/pull box for pro and large-scale installs.
- Color: Purple for quick line identification.
- Bulk: Pallet quantities of 20 or 30 units available.
Why This RG6 Outperforms “Generic” Coax
Every component of Sigma Wire’s RG-6 is specified for signal fidelity and durability: tightly controlled foam dielectric for uniform impedance, dual-layer shielding for high shielding effectiveness, and a jacket that survives cold, impact, and abrasion. The result is lower loss, cleaner returns, and fewer callbacks—from professional headends to sophisticated homes.
Note: Always match connector type and installation method to your application (e.g., compression F/BNC, weather-sealing for outdoor runs), and observe local code requirements.
