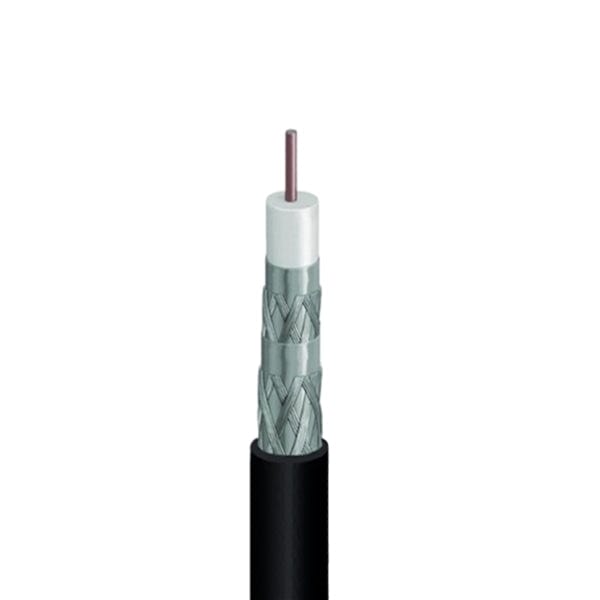

Bulk RG6 Coaxial Cable | Quad Shield, 1000ft Pullbox (Black)
Shipping calculated at checkout
SKU: 991-100
In stock
Open here
In the field of signal transmission, cable quality plays a crucial role in performance. Conversions Tech's Black Quad RG-6 coaxial cable, available in 1000-foot wooden reels, is designed to provide top-quality signal transmission. By minimizing signal loss and enhancing frequency response, it is ideal for both professional setups and home use. This cable ensures that your signal remains strong and clear at all times.
Designed to handle various installation challenges, Conversions Tech's RG-6 cable uses carefully selected components for maximum reliability. Dual-layer shielding protects against interference, while precision insulation and a durable jacket provide resilience in tough conditions.
Key Features
| Feature | Details |
|---|---|
| Reference Standard | ANSI/SCTE 74 2011 & IEC 61196 |
| Rated Temperature | -40℃ to 75℃ |
| Rated Voltage | 30V |
| Certifications | CSA Certified, ETL Listed, UL Listed, CM Rated for versatile applications |
| Conductor | 18 AWG Copper Clad Steel, diameter of 1.02 mm, providing consistent signal quality |
| Shielding | Dual-layer with aluminum foil tape and 36 AWG aluminum wire braid for superior interference protection |
| Insulation Material | Foam PE, dielectric diameter of 4.57 ± 0.01 mm, ensuring stable signal transmission |
| Jacket | PVC, diameter of 6.93 ± 0.2 mm, with black carbon content ≥ 2% for enhanced durability |
| Nominal Capacitance | 53 ± 0.1 nf/km |
| Impedance | 75 Ω (± 1.5) |
| Bending Ability | Supports S & U bending, minimum bending radius of 1.5 cm |
| Temperature Range | -40℃ to 75℃ |
| Minimum Resistance | ≤ 10% |
| 1st Shield | 10000 ΜΩx km |
| 2nd Shield | Aluminum Foil Tape |
| Braid Coverage | Aluminum Wire (36 AWG) |
Mechanical Properties
| Property | Details |
|---|---|
| Impact Test @ -15℃ | No visible damage to the jacket |
| Cold Bend Test @ -40℃ | No visible damage to the jacket |
| Jacket Ovality (max) | 7% |
| Dielectric Ovality (max) | 7% |
| Bending Radius (min) | ≤ 1.5 cm |
| Maximum Jacket Eccentricity | ≤ 10% |
| Max. Dielectric | ≤ 10% |
| Cond. Bond | ≥ 2.3 kg |
The cable's mechanical properties ensure durability under tough conditions. It passed impact tests at -15℃ and cold bend tests at -40℃ without damage. The design maintains consistent geometry, reducing signal distortion and ensuring long-lasting use even in challenging environments.
Electrical Properties
| Property | Details |
|---|---|
| Nominal DC Resistance (inner conductor) | 100 Ω/km (± 1) |
| Nominal DC Resistance (outer conductor) | 18 Ω/km (± 0.5) |
| Minimum Structural Return Loss | -20 dB |
| Minimum Velocity of Propagation | ≥ 82% |
| Impedance Homogeneous | ≥ 40 dB or ≤ 1% |
| Nominal DC Resistance | 18 Ω/km (± 0.5) |
| Loop @ 20℃ | N/A |
| Cond. Bond | ≥ 2.3 kg |
Conversions Tech's RG-6 coaxial cable is engineered for excellent electrical performance. It minimizes energy loss, allowing efficient signal transmission. With a high velocity of propagation and reduced signal reflections, this cable is ideal for high-quality video and audio transmission.
Applications
| Application | Details |
|---|---|
| CATV & Satellite Installations | Ensures high-quality video and audio signals for TV and satellite systems |
| Professional Base Band Video | Compatible with BNC connectors to provide high-fidelity video transmission |
| Consumer A/V Systems | Adaptable for various connectors, including RCA plugs, for a wide range of audio-visual setups |
Conversions Tech's RG-6 coaxial cable is versatile, capable of supporting a broad range of applications. It is particularly well-suited for CATV and satellite installations, where maintaining signal quality is essential for delivering clear video and audio. Its compatibility with professional base band video systems means that it can be used in settings that require robust, interference-free video transmission. For consumer A/V systems, the cable's adaptability makes it an excellent choice for connecting with a variety of different connectors, including RCA plugs, enabling high-quality audio-visual experiences across numerous devices.
Packaging and Availability
| Feature | Details |
|---|---|
| Length | Available in 1000-foot wooden reels, suitable for large-scale installations |
| Color | Elegant black quad, allowing for easy identification among other cables |
| Packaging | Convenient wooden reel packaging with pallet quantities of 20 or 30 units |
Why Choose Conversions Tech's RG-6 Coaxial Cable?
Conversions Tech's RG-6 coaxial cable delivers quality, durability, and reliable performance. Designed to minimize signal loss and maximize fidelity, it's the perfect choice for home theaters, broadcasting, or CATV systems, ensuring the best possible signal quality every time.
This cable's solid construction and certifications (CSA, ETL, UL) make it great for both residential and commercial use. Its versatility, easy installation, and impressive performance make Conversions Tech's RG-6 a top choice for anyone needing reliable signal transmission.
Pulling cable? Terminate it too
Boxes pull the run; jacks, RJ45s and panels finish it - everything ships together.
KEYSTONE JACKS $2.15PATCH PANELSTERMINATED PATCH CORDSCATEGORY GUIDEAvailability: This item ships on our standard restock cycle — typical lead time 2–3 weeks. Order now to reserve your place in the queue, or email sales@conversionstech.com for expedited options and firm dates on volume orders.
Spec Comparison — RG6 75Ω Coaxial
Belden 1694A is the premium broadcast/SDI-grade benchmark shown for reference; CT RG6 is CATV/distribution-grade 75Ω coax for antenna, satellite and video distribution at distributor pricing.
| Brand | Part | Price |
|---|---|---|
| Belden 1694A (spec brand) | 1694A | ~$549.99 / 500ft |
| Conversions Tech 991-100 | $97.90 | This page |
* Part number derived from manufacturer numbering pattern — verify against datasheet for critical applications. Prices are third-party street/MSRP references at time of publication and may change. All trademarks are property of their respective owners, used for compatibility and comparison identification only.
Specifications
| Part Number | 991-100 |
| Category | Bulk cable |
| Weight | 28.0 lb |
| HS Code | 8544.49.2000 |
